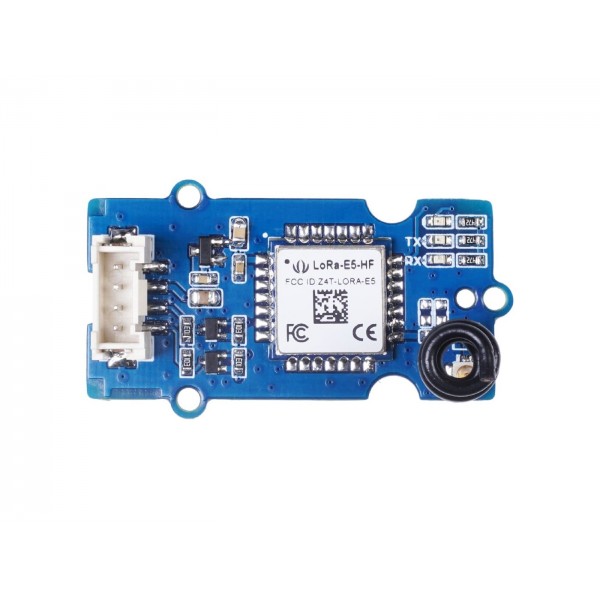

Seeed Studio Grove LoRa-E5 - LoRaWAN - 868-915MHz

A LoRa module from Seeed Studio, based on the LoRa-E5 chip. The module has a built-in antenna and is easy to control via UART.

Specifications:

• Supply voltage: 3.3 - 5V DC
• Signal voltage: 3.3V (5V tolerant)
• Communication:
  • Interface: UART
  • Baud rate: 9600
• LoRa:
  • Chip: LoRa-E5 (STM32WLE5JC)
  • Operating frequency: 868 - 915MHz
  • Sensitivity: -116.5 ~ -136dBm
  • Maximum communication distance: 10km (under ideal conditions)
  • Protocol: LoRaWAN
  • Antenna: Built-in or uFL/IPEX (not included)
• Connector: Grove
• Operating temperature: -40 - 85°C

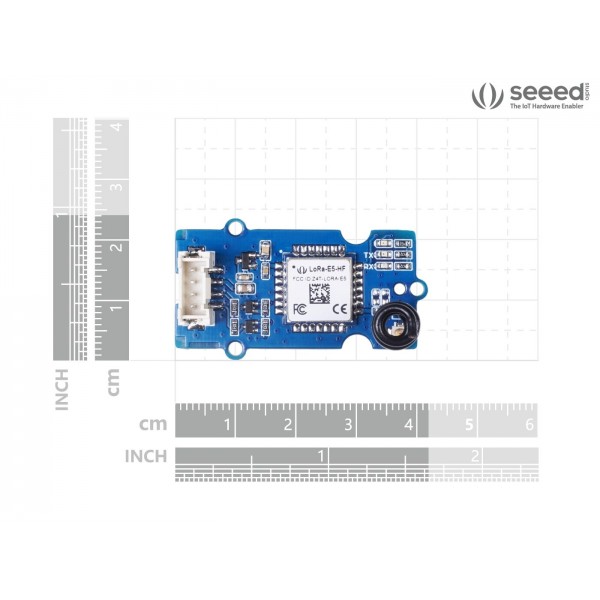

• Dimensions: See images

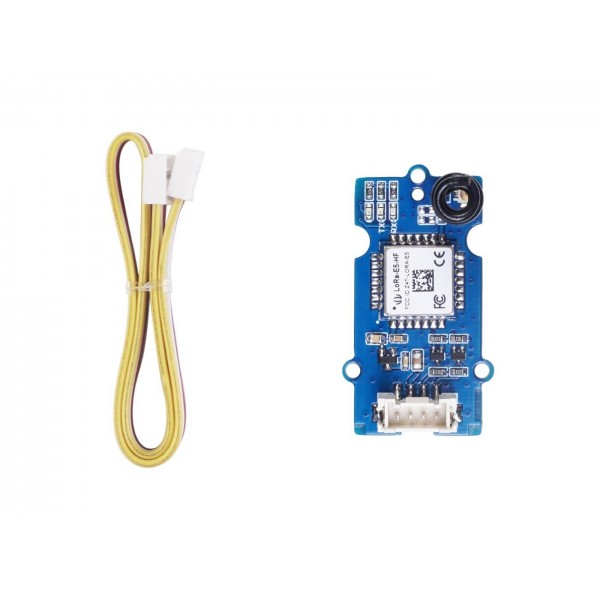

Package contents:

• 1x Seeed Studio Grove LoRa-E5
• 1x Grove cable

See the following page for more information and examples: Seeed Studio Grove LoRa-E5

Check the tab "Downloads" for more information and/or downloads.
