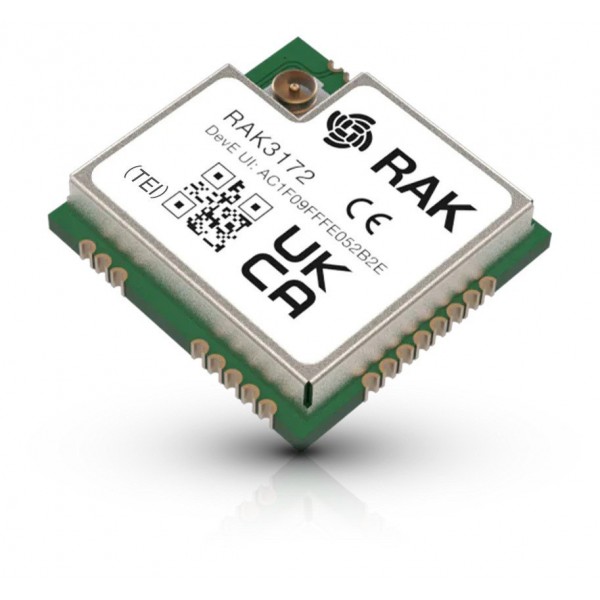

RAKwireless RAK3172-T LoRa Module with 0.5ppm TCXO - 868MHz

New

RAKwireless RAK3172-T LoRa Module with 0.5ppm TCXO - 868MHz

Based on 0 review(s) - Write a review

€10.00

Ex Tax: €8.26

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

The RAK3172-T is a microcontroller module with built-in LoRa functionality based on the STM32WLE5CC chip.

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: RAKwireless RAK3172-T LoRa Module with 0.5ppm TCXO - 868MHz , RAK-305057 , Modules

General
Brand	RAKwireless
Manufacturer model/SKU	RAK3172-T/305057
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Microcontroller
General physical appearance
Main color	White
Weight [g]	1
Dimension X [mm]	16
Dimension Y [mm]	15
Dimension Z [mm]	2.6
Mounting options	SMT
Form factor	Individual component
General electrical properties
Minimum supply voltage [V DC]	2
Maximum supply voltage [V DC]	3.6
Minimum IO-pin input voltage [V]	2
Maximum IO-pin input voltage [V]	3.6
IO-pin output voltage [V]	Equal to supply voltage
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	20
MCU/SoC
Manufacturer	STMicroelectronics
Chip series	STM32WLE5
Maximum clock frequency [MHz]	48
Number of cores	1
Internal memory
SRAM [KB]	64
Flash memory [MB]	256
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC DAC GPIO USB CDC Comparator LIN
Number of IO-pins	23
Maximum available hardware PWM channels	6
Maximum available analog input pins (ADC)	9
Maximum available analog output pins (DAC)	1
Maximum available hardware UART interfaces	2
Default baudrate	115200
Maximum available hardware I2C interfaces	3
Maximum available hardware SPI interfaces	1
USB to serial converter	None
Wireless communication
Interface(s)	LoRa
LoRa chip/SoC	STM32WLE5 (SX1262)
LoRa frequency [MHz]	868
Connectors
Power supply connector(s)	Solder pin(s) (SMT)
IO-connector(s)	Solder pin(s) (SMT)
LoRa antenna connector	IPEX MHF 1/uFL male
Package contents
Package contents	1x RAK3172-T LoRa Module
