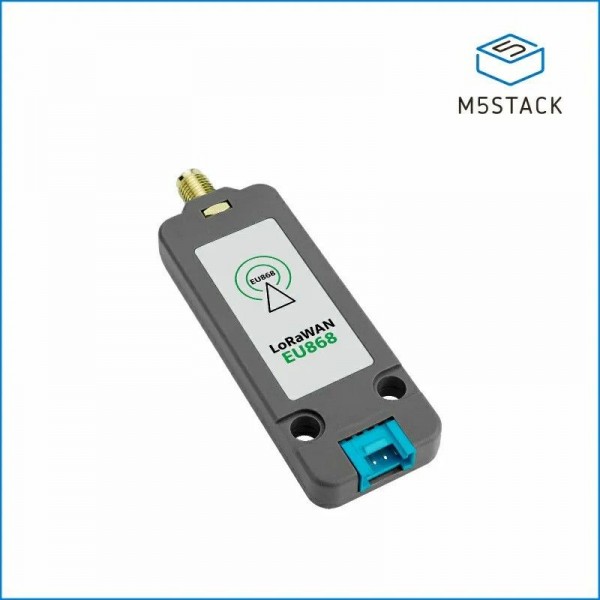

M5Stack LoRaWAN Unit - 868MHz - STM32WLE5

M5Stack LoRaWAN Unit - 868MHz - STM32WLE5
M5Stack LoRaWAN Unit - 868MHz - STM32WLE5
M5Stack LoRaWAN Unit - 868MHz - STM32WLE5
M5Stack LoRaWAN Unit - 868MHz - STM32WLE5
M5Stack LoRaWAN Unit - 868MHz - STM32WLE5
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006768
Based on 0 review(s) - Write a review
€25.00
Ex Tax: €20.66
Add to Cart
Add to wishlist

A LoRa module from M5Stack.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack LoRaWAN Unit - 868MHz - STM32WLE5

This product has 0 review(s) in total.

Tags: LoRa , Modules , M5Stack LoRaWAN Unit - 868MHz - STM32WLE5 , 006768 , M5Stack , U184-EU868 , Enclosure , UART , LoRa

Specifications

General
Brand M5Stack
Manufacturer model/SKU U184-EU868
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Enclosure
General physical appearance
Main color Gray/silver
Weight [g] 32
(module + antenna)
Dimension X [mm] 64
Dimension Y [mm] 24
Dimension Z [mm] 8
Mounting options LEGO (compatible) holes
Form factor M5Stack Unit
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
Default baudrate 115200
Protocol AT-commands
Wireless communication
Interface(s) LoRa
LoRa chip/SoC STM32WLE5 (SX1262)
LoRa frequency [MHz] 868
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
LoRa antenna connector RP-SMA female
Antenna
Maximum gain [dBi] 2.8
Enclosure
Material Polycarbonate (PC)

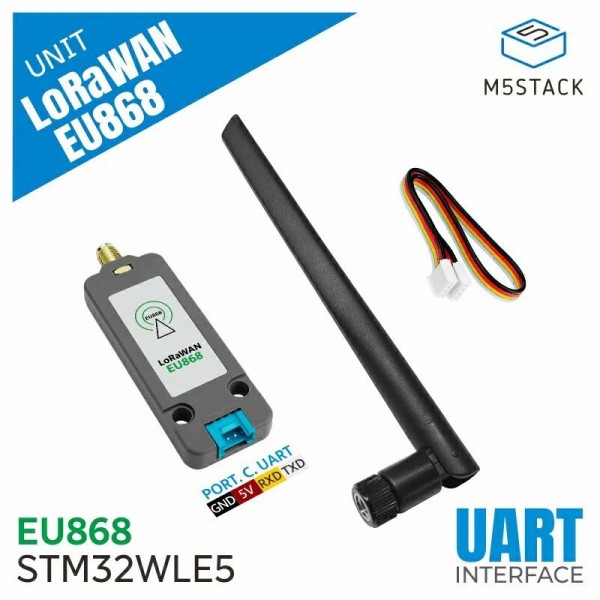

Package contents
Package contents 1x LoRaWAN 868MHz Unit
1x Grove cable
1x RP-SMA antenna
