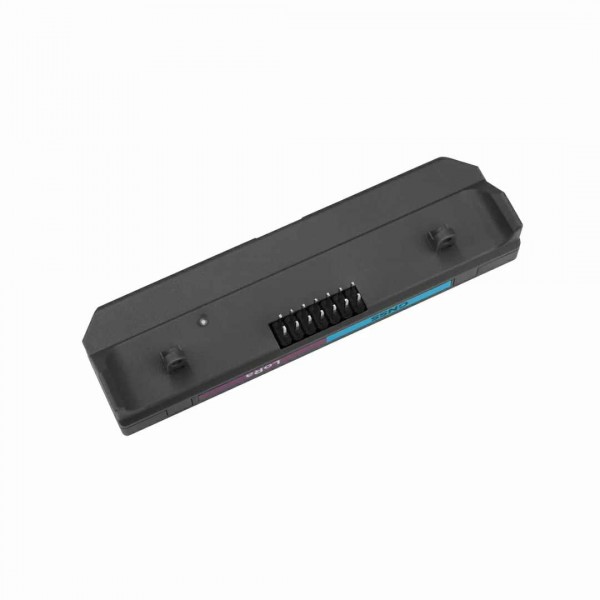

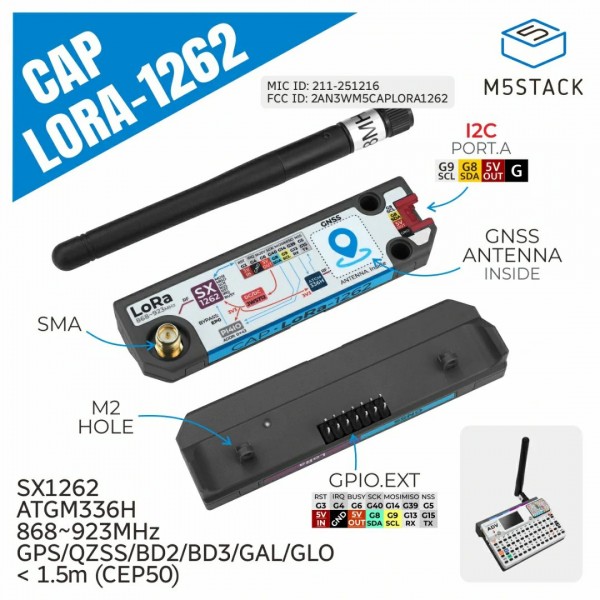

M5Stack Cap LoRa-1262 - for Cardputer Adv - SX1262 LoRa 868MHz - ATGM336H GNSS

M5Stack Cap LoRa-1262 - for Cardputer Adv - SX1262 LoRa 868MHz - ATGM336H GNSS
M5Stack Cap LoRa-1262 - for Cardputer Adv - SX1262 LoRa 868MHz - ATGM336H GNSS
M5Stack Cap LoRa-1262 - for Cardputer Adv - SX1262 LoRa 868MHz - ATGM336H GNSS
M5Stack Cap LoRa-1262 - for Cardputer Adv - SX1262 LoRa 868MHz - ATGM336H GNSS
M5Stack Cap LoRa-1262 - for Cardputer Adv - SX1262 LoRa 868MHz - ATGM336H GNSS
M5Stack Cap LoRa-1262 - for Cardputer Adv - SX1262 LoRa 868MHz - ATGM336H GNSS
M5Stack Cap LoRa-1262 - for Cardputer Adv - SX1262 LoRa 868MHz - ATGM336H GNSS
M5Stack Cap LoRa-1262 - for Cardputer Adv - SX1262 LoRa 868MHz - ATGM336H GNSS
M5Stack Cap LoRa-1262 - for Cardputer Adv - SX1262 LoRa 868MHz - ATGM336H GNSS
M5Stack Cap LoRa-1262 - for Cardputer Adv - SX1262 LoRa 868MHz - ATGM336H GNSS
M5Stack Cap LoRa-1262 - for Cardputer Adv - SX1262 LoRa 868MHz - ATGM336H GNSS
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007596
Based on 0 review(s) - Write a review
€18.75
Ex Tax: €15.50
Add to Cart
Add to wishlist

M5Stack LoRa en GNSS module voor Cardputer Adv. Voor draadloze communicatie en nauwkeurige locatiebepaling.

See the following page for more information: Wiki

Please login or register to review
Tags: LoRa , Modules , M5Stack Cap LoRa-1262 - for Cardputer Adv - SX1262 LoRa 868MHz - ATGM336H GNSS , 007596 , M5Stack , U214 , Enclosure , RTC , Digital , UART , SPI , I2C , LoRa , GNSS

Specifications

General
Brand M5Stack
Manufacturer model/SKU U214
Features RTC
Enclosure
General physical appearance
Main color Gray/silver
Weight [g] 22
(excl. antenna)
Dimension X [mm] 84
Dimension Y [mm] 24
Dimension Z [mm] 15
Mounting options Pin headers
Mounting hole(s)
LEGO (compatible) holes
Diameter mounting hole(s) [mm] 2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
SPI
UART
Digital
(GP)IO expansion chip PI4IOE5V6408
Default baudrate 115200
Default I2C address 0x43
(PI4IOE5V6408)
Adjustable I2C address No
Built-in pull-up resistor(s) [kΩ] 10
Wireless communication
Interface(s) GNSS
LoRa
GNSS chip/SoC ATGM336H-6N (AT6668)
Supported GNSS systems GPS
QZSS
Beidou
Galileo
GLONASS
Maximum GNSS position accuracy [m] 1.5
Maximum GNSS update rate [Hz] 10
LoRa chip/SoC SX1262
LoRa frequency [MHz] 868
RTC
RTC chip ATGM336H-6N (AT6668)
Back-up battery/capacitor Yes
Connectors
Power supply connector(s) HY2.0 (Grove) male
Pin header male (2.54mm)
IO-connector(s) HY2.0 (Grove) male
Pin header male (2.54mm)
LoRa antenna connector RP-SMA female
GNSS antenna connector Built-in antenna
Enclosure
Material Plastic (unknown material)

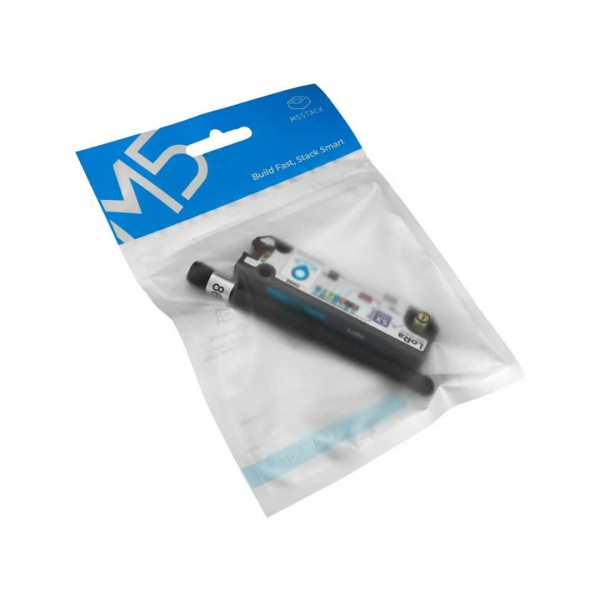

Package contents
Package contents 1x Antenna
1x LoRa and GNSS Expansion Module
