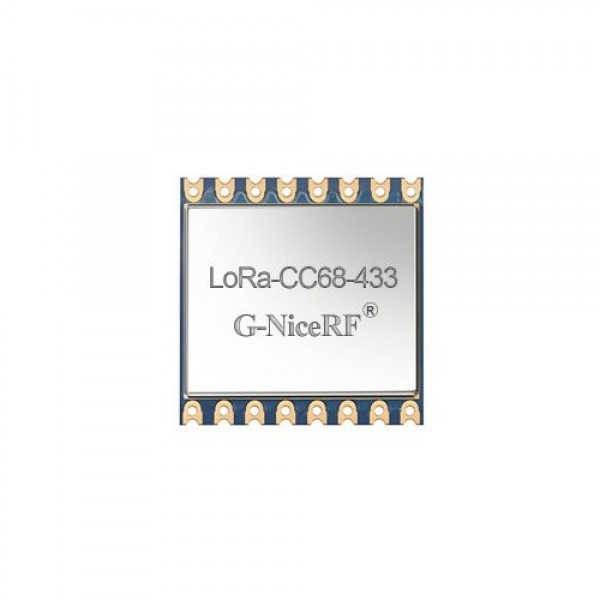

G-NiceRF LoRa-CC68-433 Module - 433MHz
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004361
€6.00
Ex Tax: €4.96
Your shopping cart is empty!
A LoRa module from G-NiceRF.
See the following page for more information: Manufacturer page
Check the tab "Downloads" for more information and/or downloads.
| General | |
| Brand | G-NiceRF |
| Manufacturer model/SKU | LoRa-CC68-433 |
| Model revision | V1.1 or V2.0 |
| Minimum operating temperature [°C] | -40 |
| Maximum operating temperature [°C] | 85 |
| General physical appearance | |
| Main color | Gray/silver |
| Weight [g] | 1 |
| Dimension X [mm] | 16 |
| Dimension Y [mm] | 16 |
| Dimension Z [mm] | 2.1 |
| Mounting options | SMT |
| Form factor | Individual component |
| General electrical properties | |
| Minimum supply voltage [V DC] | 1.8 |
| Maximum supply voltage [V DC] | 3.7 |
| Minimum IO-pin input voltage [V] | 1.8 |
| Maximum IO-pin input voltage [V] | 3.7 |
| IO-pin output voltage [V] | Equal to supply voltage |
| Communication | |
| Hardware interface(s) | SPI |
| Wireless communication | |
| Interface(s) | LoRa |
| LoRa chip/SoC | LLCC68 |
| LoRa frequency [MHz] | 433 |
| Connectors | |
| Power supply connector(s) | Solder pin(s) (SMT) Through hole solder pin(s) (2.00mm) |
| IO-connector(s) | Solder pin(s) (SMT) Through hole solder pin(s) (2.00mm) |
| LoRa antenna connector | Solder pin (SMT) Through hole solder pin |
| Package contents | |
| Package contents | 1x LoRa Module |
