Dragino DLOS8N Outdoor LoRaWAN Gateway - 868MHz
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005650
€313.25
Ex Tax: €258.88
Your shopping cart is empty!

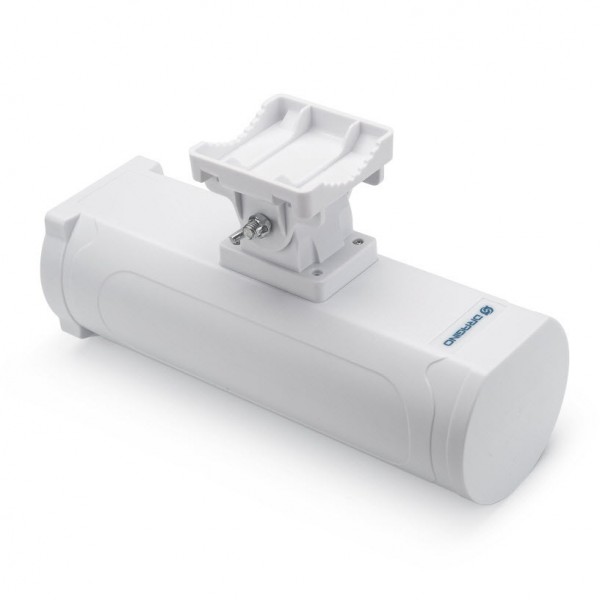

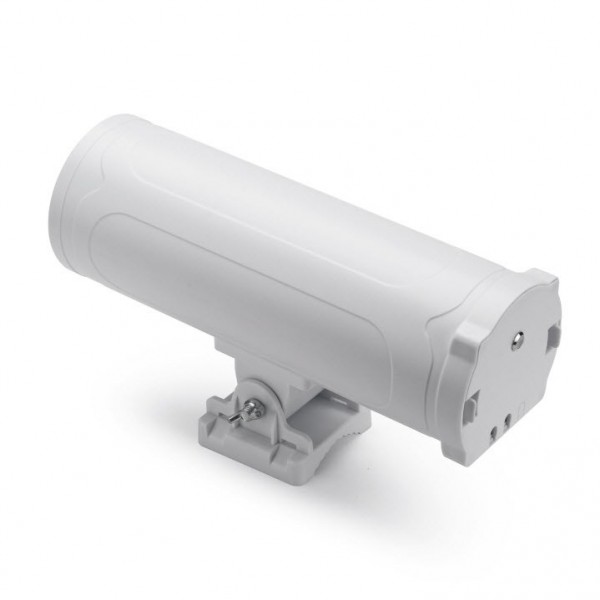

A LoRaWAN gateway from Dragino with GNSS, Wi-Fi and ethernet connectivity. The enclosure makes this gateway suitable for outdoor use. The gateway is based on an open source Linux module and can be powered with 12V via the included power adapter. The package also contains a fiber optic LoRa antenna and a complete mounting kit.
See the following page for more information: Wiki
| General | |
| Brand | Dragino |
| Manufacturer model/SKU | DLOS8N-868 |
| Norm conformity | CE FCC RoHS |
| Minimum operating temperature [°C] | -20 |
| Maximum operating temperature [°C] | 85 |
| Features | PoE Enclosure |
| General physical appearance | |
| Main color | White |
| Weight [g] | 416 (gateway only) |
| Dimension X [mm] | 260 |
| Dimension Y [mm] | 91 |
| Dimension Z [mm] | 83 |
| Water and dust protection | IP65 |
| Mounting options | Clamp Mounting hole(s) |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 12 (via DC-jack) 37 (via PoE) |
| Maximum supply voltage [V DC] | 57 (via PoE) 24 (via DC-jack) |
| Minimum recommended supply current [A] | 2 |
| Communication | |
| Hardware interface(s) | USB UART Ethernet |
| Wireless communication | |
| Interface(s) | GNSS LoRa Wi-Fi |
| Wi-Fi frequency [GHz] | 2.4 |
| GNSS chip/SoC | L76K |
| Supported GNSS systems | GPS QZSS Beidou Galileo GLONASS |
| Maximum GNSS position accuracy [m] | 2.0 |
| LoRa chip/SoC | SX1302 |
| LoRa frequency [MHz] | 868 |
| Connectors | |
| Power supply connector(s) | RJ45 female DC-jack 5.5/2.1mm male |
| IO-connector(s) | RJ45 female USB-A female |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| LoRa antenna connector | RP-SMA female |
| GNSS antenna connector | Built-in antenna |
| Package contents | |

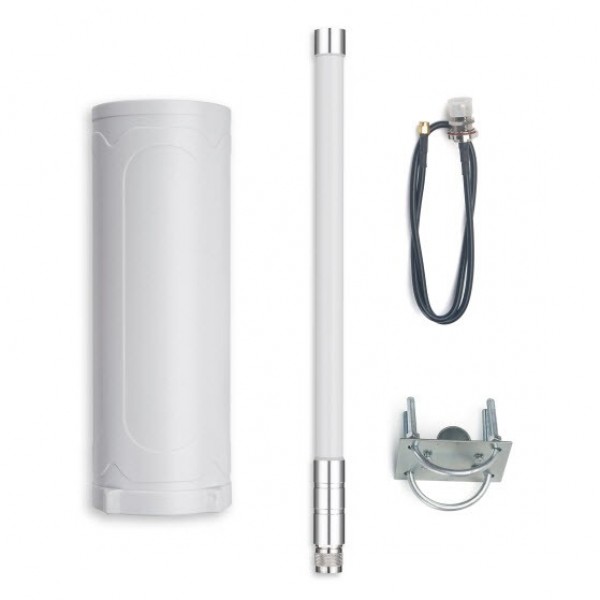

| Package contents | 1x DLOS8N LoRaWAN gateway 1x Fiber glass LoRa antenna 1x Antenna connector cable 1x Power supply 12V DC 1x Mounting kit 1x Screw set |
