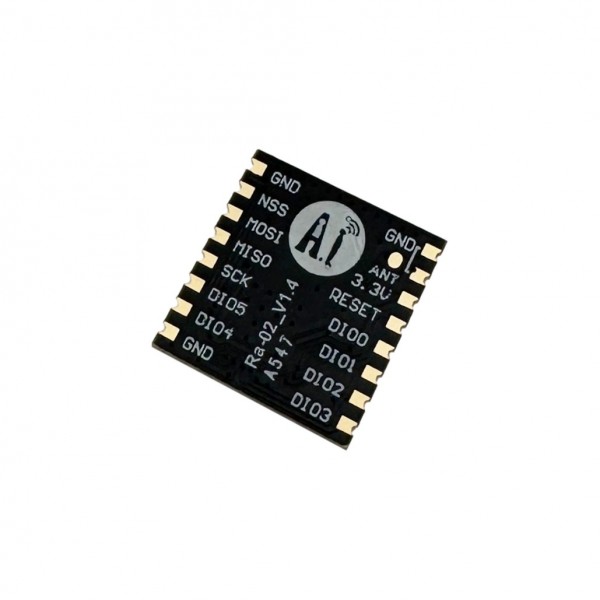

Ai-Thinker Ra-02 LoRa Module - 433MHz - SX1278

Ai-Thinker Ra-02 LoRa Module - 433MHz - SX1278
Ai-Thinker Ra-02 LoRa Module - 433MHz - SX1278
Ai-Thinker Ra-02 LoRa Module - 433MHz - SX1278
Ai-Thinker Ra-02 LoRa Module - 433MHz - SX1278
Ai-Thinker Ra-02 LoRa Module - 433MHz - SX1278
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007615
Based on 0 review(s) - Write a review
€7.00
Ex Tax: €5.79
10 or more €6.75
20 or more €6.50
50 or more €6.25
100 or more €6.00
Add to Cart
Add to wishlist

A LoRa module from Ai-Thinker.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Ai-Thinker Ra-02 LoRa Module - 433MHz - SX1278

This product has 0 review(s) in total.

Tags: LoRa , Modules , Ai-Thinker Ra-02 LoRa Module - 433MHz - SX1278 , 007615 , Ai-Thinker , Ra-02 , SPI , LoRa

Specifications

General
Brand Ai-Thinker
Manufacturer model/SKU Ra-02
Model revision V1.4
Minimum operating temperature [°C] -30
Maximum operating temperature [°C] 85
General physical appearance
Main color Gray/silver
Weight [g] 2
Dimension X [mm] 17
Dimension Y [mm] 16
Mounting options SMT
Form factor Individual component
General electrical properties
Minimum supply voltage [V DC] 2.5
Maximum supply voltage [V DC] 3.7
Minimum IO-pin input voltage [V] 2.5
Maximum IO-pin input voltage [V] 3.7
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) SPI
Wireless communication
Interface(s) LoRa
LoRa chip/SoC SX1278
LoRa frequency [MHz] 433
Connectors
Power supply connector(s) Solder pin(s) (SMT)
IO-connector(s) Solder pin(s) (SMT)
LoRa antenna connector IPEX MHF 1/uFL male
Package contents
Package contents 1x LoRa module
