Name: G-NiceRF LoRa1276-C1-868 Module - 868MHz - LoRa1276-C1-868
SKU: 005375
Price: 8.5 EUR
Availability: InStock

G-NiceRF LoRa1276-C1-868 Module - 868MHz

Based on 0 review(s) - Write a review

€8.50

Ex Tax: €7.02

10 or more €8.25

20 or more €8.00

50 or more €7.75

100 or more €7.50

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

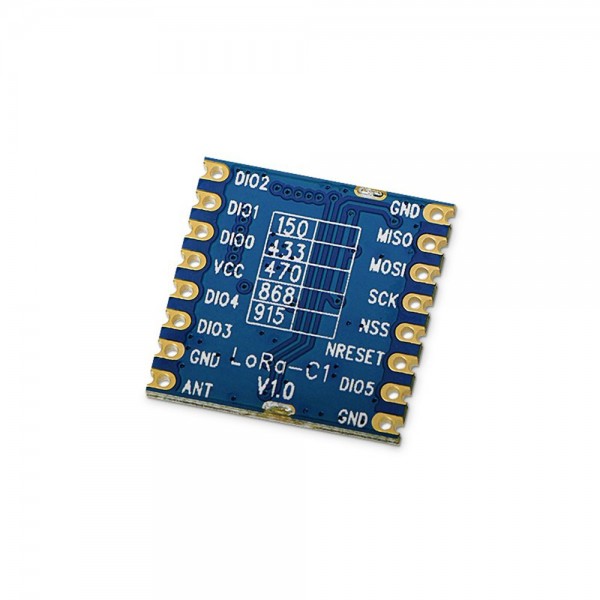

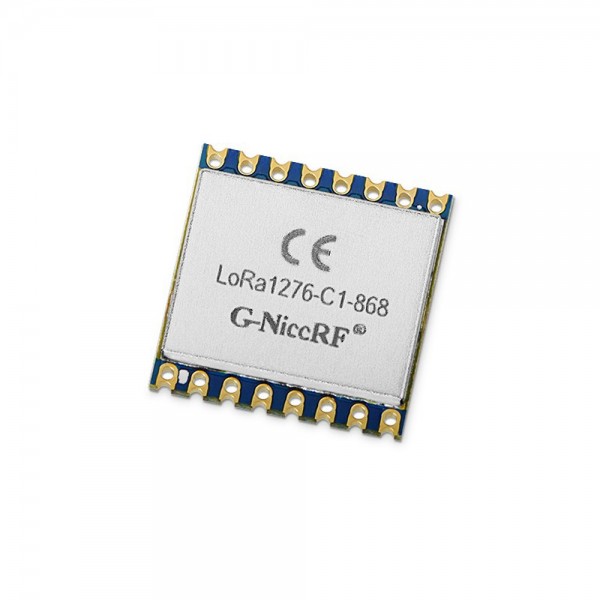

A LoRa module from G-NiceRF.

See the following page for more information: Manufacturer page

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: G-NiceRF LoRa1276-C1-868 Module - 868MHz , LoRa1276-C1-868 , LoRa

General
Brand	G-NiceRF
Manufacturer model/SKU	LoRa1276-C1-868
Model revision	V1.0
Norm conformity	RoHS CE
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
General physical appearance
Main color	Gray/silver
Weight [g]	2
Dimension X [mm]	16
Dimension Y [mm]	16
Dimension Z [mm]	2.1
Mounting options	SMT
Form factor	Individual component
General electrical properties
Minimum supply voltage [V DC]	1.8
Maximum supply voltage [V DC]	3.7
Minimum IO-pin input voltage [V]	1.8
Maximum IO-pin input voltage [V]	3.7
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	SPI
Wireless communication
Interface(s)	LoRa
LoRa chip/SoC	SX1276
LoRa frequency [MHz]	868
Connectors
Power supply connector(s)	Solder pin(s) (SMT) Through hole solder pin(s) (2.00mm)
IO-connector(s)	Solder pin(s) (SMT) Through hole solder pin(s) (2.00mm)
LoRa antenna connector	Solder pin (SMT) Through hole solder pin
Package contents
Package contents	1x LoRa Module
