Name: Waveshare SIM7080G NB-IoT - Cat-M - GNSS Module - for Raspberry Pi Pico - WS-20036
Brand: Waveshare
SKU: 004776
Price: 28 EUR
Availability: InStock

Waveshare SIM7080G NB-IoT - Cat-M - GNSS Module - for Raspberry Pi Pico

Availability: Directly available from warehouse in Eindhoven
SKU: 004776

Based on 0 review(s) - Write a review

€28.00

Ex Tax: €23.14

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

Description
Reviews

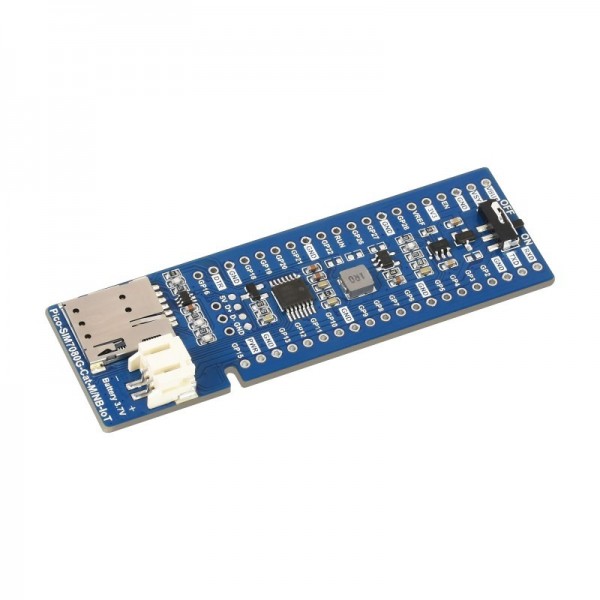

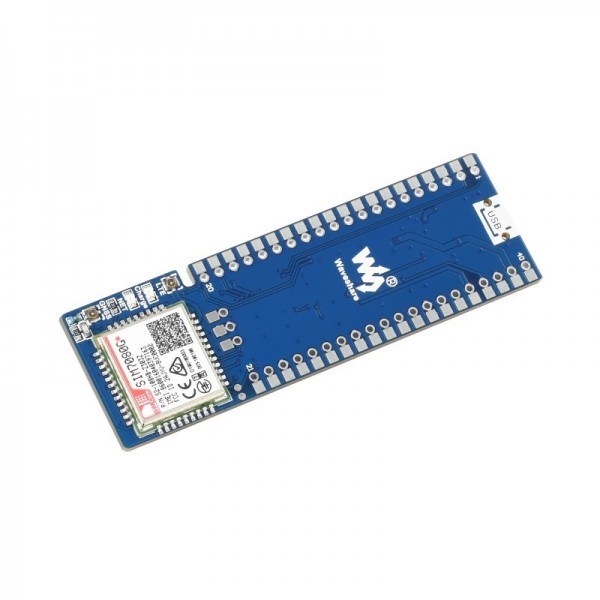

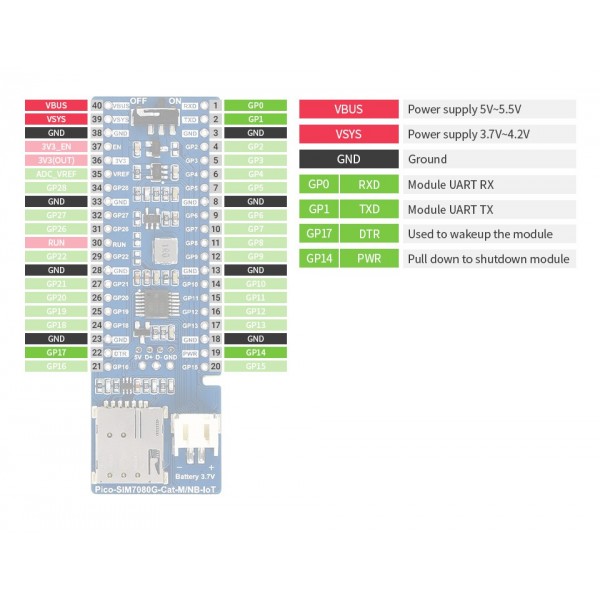

With this telecom module you can connect your Raspberry Pi Pico to the NB-IoT or CAT-M network. The module also has a GNSS (GPS) receiver and the module has a built-in battery circuit with a battery included. The battery can be charged via the VBUS pin of the Raspberry Pi Pico. Thanks to the soldering pads, the Pico can be soldered directly (SMD) to the module so that the whole remains compact.

Note: No Raspberry Pi Pico is included.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare SIM7080G NB-IoT - Cat-M - GNSS Module - for Raspberry Pi Pico

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare SIM7080G NB-IoT - Cat-M - GNSS Module - for Raspberry Pi Pico , WS-20036 , Modules

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	20036
Features	Battery charger Battery protection circuit Battery
General physical appearance
Main color	Blue

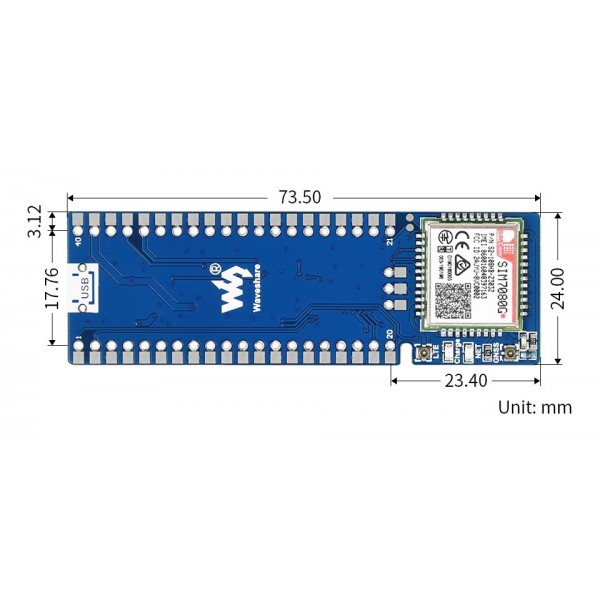

Dimension X [mm]	74
Dimension Y [mm]	24
Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	5 (lower possible via Li-Po/Li-ion battery)
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	UART
Supported SIM card size	Nano-SIM
Wireless communication
Interface(s)	GNSS Telecom
GNSS chip/SoC	SIM7080G
Supported GNSS systems	GPS Beidou GLONASS Galileo
Maximum GNSS position accuracy [m]	0.74
Maximum GNSS update rate [Hz]	1
Telecom chip/SoC	SIM7080G
Supported telecom networks	LTE CAT M1 NB-IoT (LTE CAT NB1) NB-IoT (LTE CAT NB2)
Supported NB-IoT bands	B1 B2 B3 B4 B5 B8 B12 B13 B18 B19 B20 B25 B26 B28 B66 B71 B85
Supported CAT M bands	B1 B2 B3 B4 B5 B8 B12 B13 B14 B18 B19 B20 B25 B26 B28 B66 B85 B27
Battery circuit
Battery charger chip/SoC	MCP73831
Supported battery chemistry	Li-ion Li-Po
Maximum charging voltage [V]	4.2
Maximum charging current [mA]	500
Adjustable charging current	No
Protection circuit	Yes (note: in the Li-Po battery, not on the module itself)
Safety features	Short circuit Overvoltage Overcurrent Undervoltage
Battery
Chemistry	Li-Po
Rechargeable	Yes
Capacity [mAh]	600
Nominal cell voltage [V]	3.7
Maximum cell voltage [V]	4.2
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT)
IO-connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT)
Battery connector(s)	JST-PH (compatible) male
Telecom antenna connector	IPEX MHF 4 male
GNSS antenna connector	IPEX MHF 4 male
Package contents

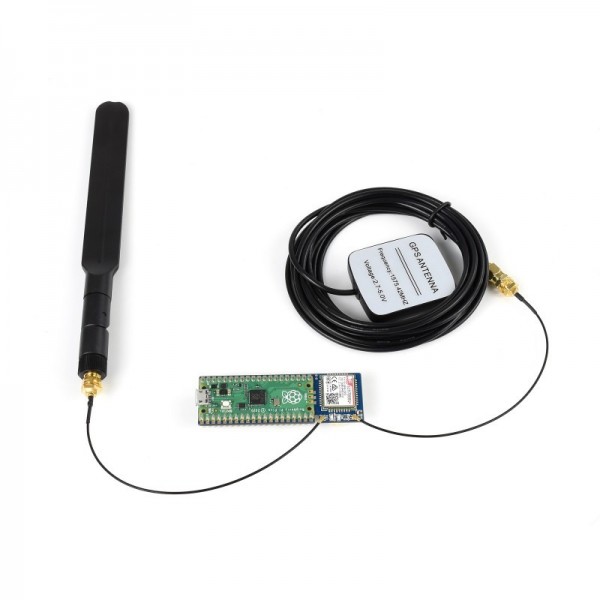

Package contents	1x SIM7080G module 1x Telecom SMA antenna 1x GNSS SMA antenna 2x IPEX MHF 4 to SMA adapter 1x LiPo battery 1x Male pin header set 1x Female pin header set
