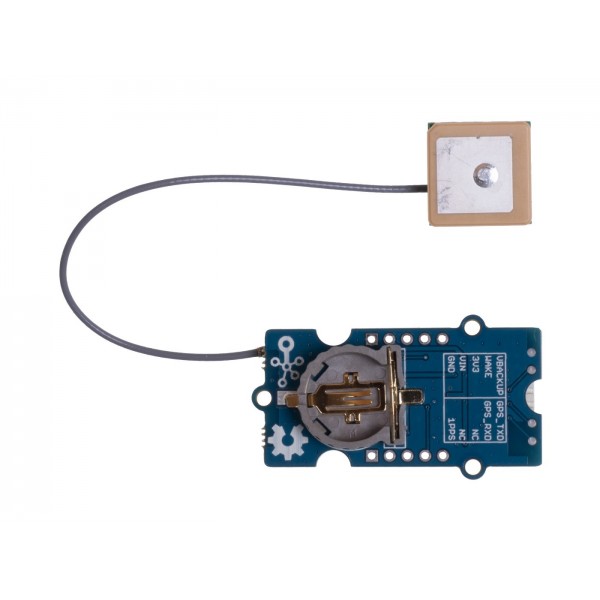

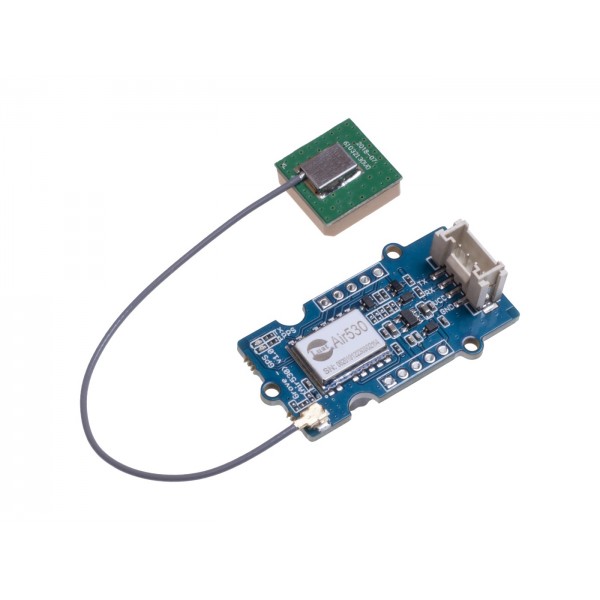

Seeed Studio Grove GNSS-GPS Module - Air530
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005626
€12.00
Ex Tax: €9.92
Your shopping cart is empty!
A GNSS module from Seeed Studio.
See the following page for more information: Wiki
| General | |
| Brand | Seeed Studio |
| Manufacturer model/SKU | 109020022 |
| Features | RTC Battery holder |
| General physical appearance | |
| Main color | Blue |
| Dimension X [mm] | 40 |
| Dimension Y [mm] | 20 |
| Mounting options | Mounting hole(s) |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | UART |
| Default baudrate | 9600 |
| Wireless communication | |
| Interface(s) | GNSS |
| GNSS chip/SoC | Air530 |
| Supported GNSS systems | GPS QZSS Beidou Galileo GLONASS |
| Maximum GNSS position accuracy [m] | 2.5 |
| RTC | |
| RTC chip | Air530 |
| Back-up battery/capacitor | Optional |
| Battery holder | |
| Suitable battery form factor | Button cell 1220 |
| Suitable number of batteries | 1 |
| Connectors | |
| Power supply connector(s) | HY2.0 (Grove) male Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | HY2.0 (Grove) male Through hole solder pin(s) (2.54mm) |
| GNSS antenna connector | IPEX MHF 1/uFL male |
| Package contents | |
| Package contents | 1x Grove female cable 1x GNSS module 1x GNSS antenna |
