M5Stack Atomic GPS Base v2.0 - ATGM336H
- Availability: Directly available from warehouse in Eindhoven
- SKU: 007324
€12.25
Ex Tax: €10.12
Your shopping cart is empty!

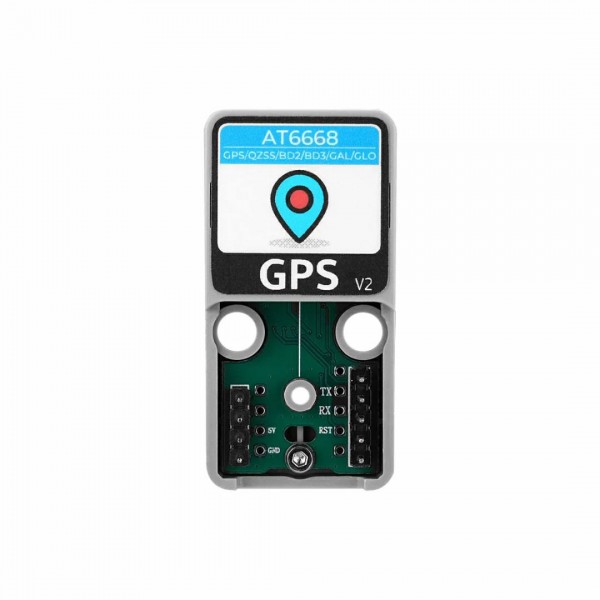

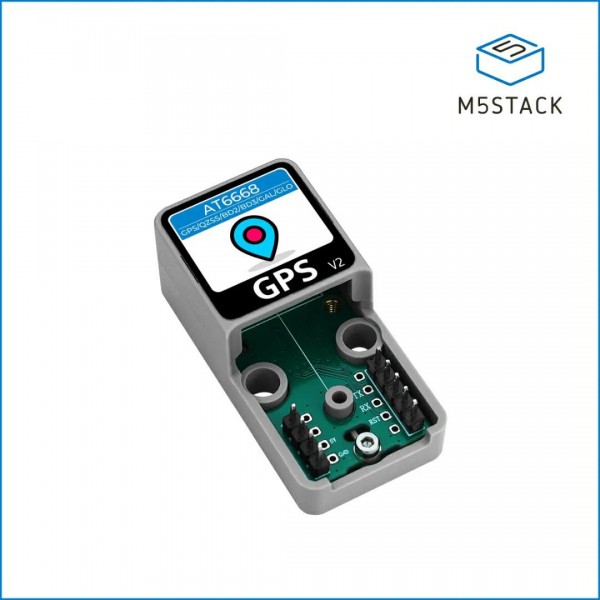

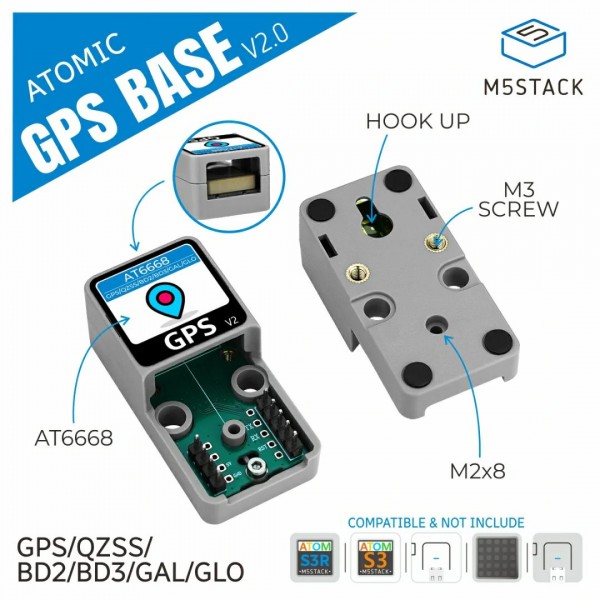

A GPS module based on ATGM336H, compatible with the M5Stack Atom series development boards.
See the following page for more information: Wiki
Check the tab "Downloads" for more information and/or downloads.
Datasheet: 007324_ATGM336H.pdf
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | A134-V2 |
| Features | RTC Enclosure |
| General physical appearance | |
| Main color | Gray/silver |
| Weight [g] | 14 |
| Dimension X [mm] | 48 |
| Dimension Y [mm] | 24 |
| Dimension Z [mm] | 18 |

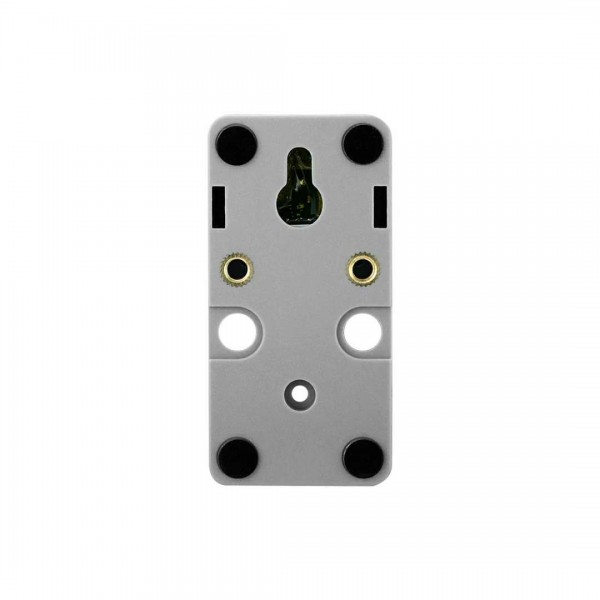

| Mounting options | Screw thread Mounting hole(s) LEGO (compatible) holes |
| Diameter mounting hole(s) [mm] | 3.2 |
| Thread size | M3 |
| Form factor | Module (general) M5Stack Atom layout/shield |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | UART |
| Default baudrate | 115200 |
| Wireless communication | |
| Interface(s) | GNSS |
| GNSS chip/SoC | ATGM336H-6N (AT6668) |
| Supported GNSS systems | GPS QZSS Beidou Galileo GLONASS |
| Maximum GNSS position accuracy [m] | 1.5 |
| Maximum GNSS update rate [Hz] | 10 |
| RTC | |
| RTC chip | ATGM336H-6N (AT6668) |
| Back-up battery/capacitor | Yes |
| Connectors | |
| Power supply connector(s) | Pin header male (2.54mm) |
| IO-connector(s) | Pin header male (2.54mm) |
| GNSS antenna connector | Built-in antenna |
| Enclosure | |
| Material | Polycarbonate (PC) |
| Package contents | |
| Package contents | 1x Atomic GPS Base v2.0 |
