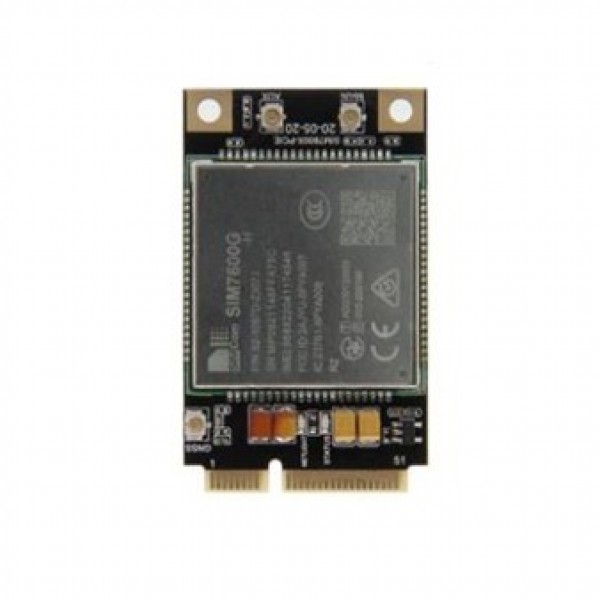

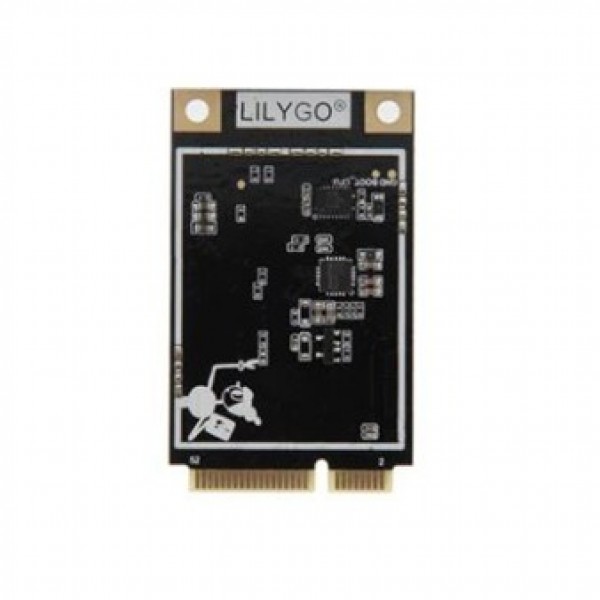

LilyGO TTGO T-PCIE SIM7600G-H Expansion Module

The TTGO T-PCIE SIM7600G-H is an expansion module that can be mounted via the PCIe slot on a TTGO T-PCIE. The module is controlled via AT commands. The full list of AT commands can be found under the tab "Downloads".

Specifications:

• Chipset: SIM7600G-H
• Communication: UART (AT commands)
• Supported telecom frequency bands:
  • LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 and B66
  • LTE-TDD: B34, B38, B39, B40 and B41
  • UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8 and B19
  • 2G (GPRS/EDGE): 850MHz, 900MHz, 1800MHz and 1900MHz
• Supported GNSS systems: GPS, Beidou and GLONASS
• Dimensions: 51 x 31 x 4.3mm

Package contents:

• 1x T-PCIE SIM7600G-H
• 1x LTE Antenna
• 1x GNSS Antenna
• 2x Bolt

See the following page for more information and examples: LilyGO T-PCIE Github

Note: A TTGO T-PCIE main board is not included.

Check the tab "Downloads" for more information and/or downloads.
