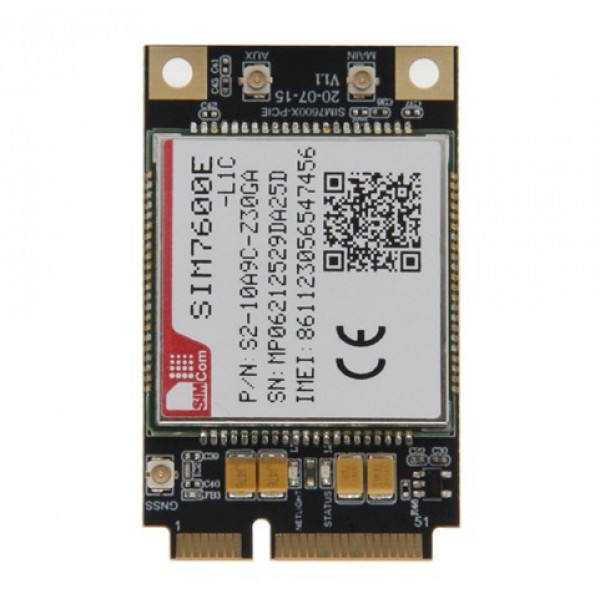

LilyGO TTGO T-PCIE SIM7600E-L1C Expansion Module
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004978
€38.00
Ex Tax: €31.41
Your shopping cart is empty!
The TTGO T-PCIE SIM7600E-L1C is an expansion module that can be mounted via the PCIe slot on a TTGO T-PCIE. The module is controlled via AT commands. The full list of AT commands can be found under the tab "Downloads".
See the following page for more information: GitHub
Check the tab "Downloads" for more information and/or downloads.
This product has 0 review(s) in total.
Communication protocol: 004978_SIM7500_SIM7600_Series_AT_Command_Manual_V1.08.pdf
General | |
Brand | LilyGO TTGO |
Manufacturer model/SKU | H519 |
General physical appearance | |
Main color | Black |
Weight [g] | 10 |
Dimension X [mm] | 48 |
Dimension Y [mm] | 31 |
Mounting options | Mounting hole(s) Clamp |
Form factor | Module (general) Mini PCIe card |
General electrical properties | |
Minimum supply voltage [V DC] | 3.4 |
Maximum supply voltage [V DC] | 4.2 |
Minimum IO-pin input voltage [V] | 3.3 |
Maximum IO-pin input voltage [V] | 3.3 |
IO-pin output voltage [V] | 3.3 |
Communication | |
Hardware interface(s) | UART |
Default baudrate | 115200 |
Wireless communication | |
Interface(s) | GNSS Telecom |
GNSS chip/SoC | SIM7600E-L1C |
Supported GNSS systems | GPS Beidou GLONASS |
Maximum GNSS position accuracy [m] | 2.5 |
Maximum GNSS update rate [Hz] | 10 (default 1Hz) |
Telecom chip/SoC | SIM7600E-L1C |
Supported telecom networks | 2G 4G (LTE CAT 1) 3G |
Supported 2G bands | 900MHz 1800MHz |
Supported 3G bands | B1 B8 |
Supported 4G bands | B1 B3 B5 B7 B8 B20 |
Connectors | |
Power supply connector(s) | Mini PCIe male |
IO-connector(s) | Mini PCIe male |
Telecom antenna connector | IPEX MHF 1/uFL male |
GNSS antenna connector | IPEX MHF 1/uFL male |
Package contents | |
Package contents | 1x T-PCIE 1x LTE Antenna 1x GNSS Antenna 2x Mounting Screw |
