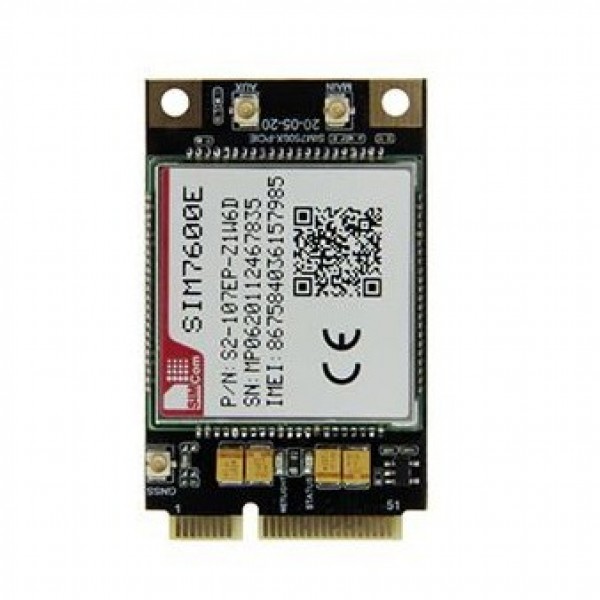

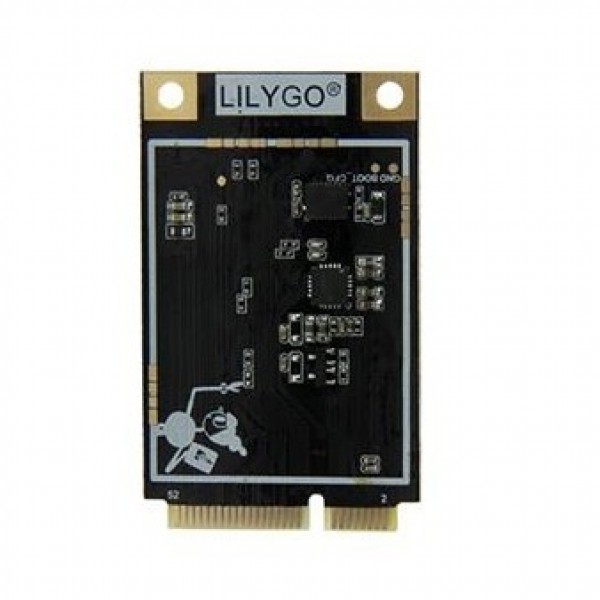

LilyGO TTGO T-PCIE SIM7600E Expansion Module

The TTGO T-PCIE SIM7600E is an expansion module that can be mounted via the PCIe slot on a TTGO T-PCIE. The module is controlled via AT commands. The full list of AT commands can be found under the tab "Downloads".

Specifications:

• Chipset: SIM7600E
• Communication: UART (AT commands)
• Supported telecom frequency bands:
  • LTE-FDD: B1, B3, B5, B7, B8 and B20
  • LTE TDD: B38, B40 and B41
  • UMTS/HSPA+: B1, B5 and B8
  • 2G (GPRS/EDGE): 900MHz and 1800MHz
• Supported GNSS systems: GPS, Beidou and GLONASS
• Dimensions: 51 x 31 x 4.1mm

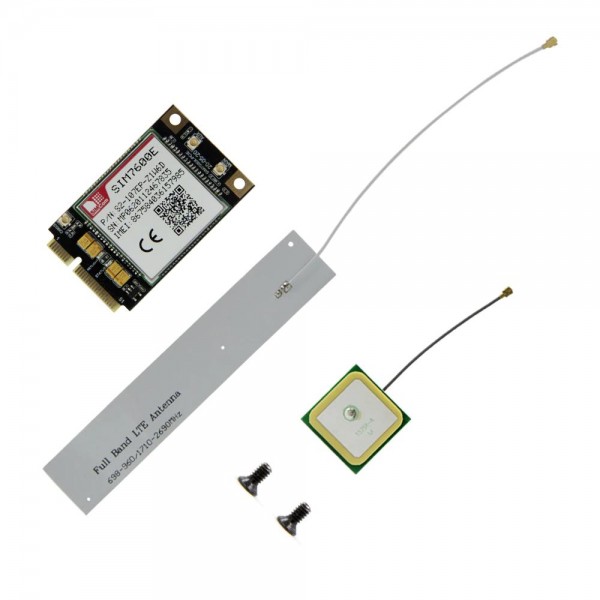

Package contents:

• 1x T-PCIE SIM7600E
• 1x LTE Antenna
• 1x GNSS Antenna
• 2x Bolt

See the following page for more information and examples: LilyGO T-PCIE Github

Note: A TTGO T-PCIE main board is not included.

Check the tab "Downloads" for more information and/or downloads.
