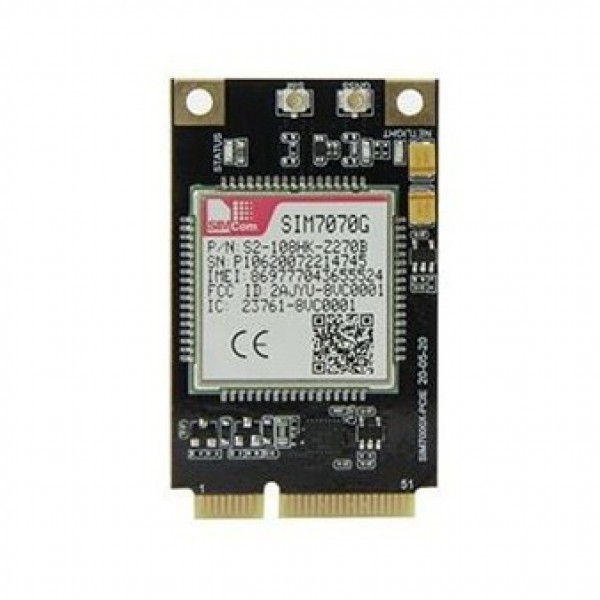

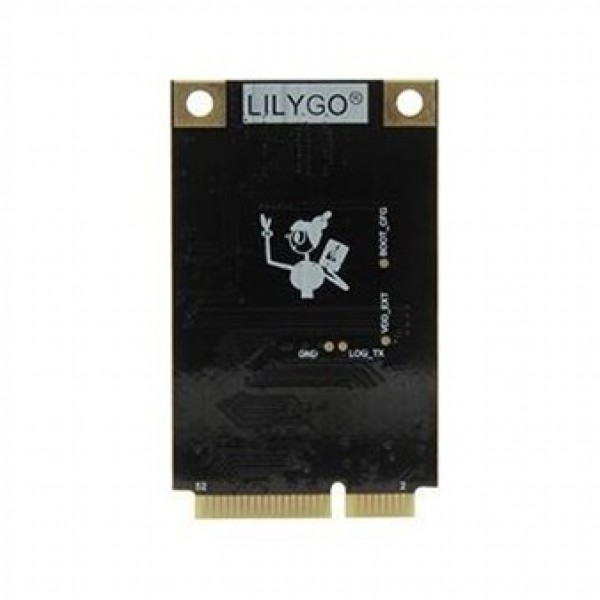

LilyGO TTGO T-PCIE SIM7070G Expansion Module

The TTGO T-PCIE SIM7070G is an expansion module that can be mounted via the PCIe slot on a TTGO T-PCIE. The module is controlled via AT commands. The full list of AT commands can be found under the tab "Downloads".

Specifications:

• Chipset: SIM7070G
• Communication: UART (AT commands)
• Supported telecom frequency bands:
  • LTE CAT-M1: B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B27, B28, B66 and B85
  • LTE NB-IoT1: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B71 and B85
  • 2G (GPRS/EDGE): 850MHz, 900MHz, 1800MHz and 1900MHz
• Supported GNSS systems: GPS, Beidou, Galileo and GLONASS
• Dimensions: 51 x 31 x 3.6mm

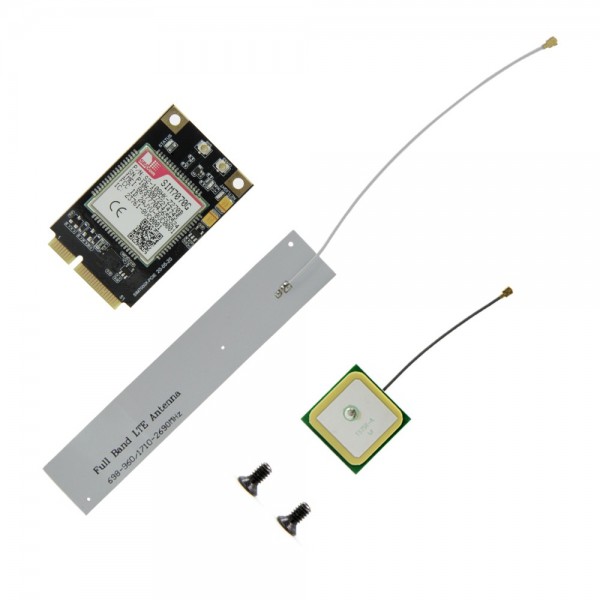

Package contents:

• 1x T-PCIE SIM7070G
• 1x LTE Antenna
• 1x GNSS Antenna
• 2x Bolt

See the following page for more information and examples: LilyGO T-PCIE Github

Note: A TTGO T-PCIE main board is not included.

Check the tab "Downloads" for more information and/or downloads.
