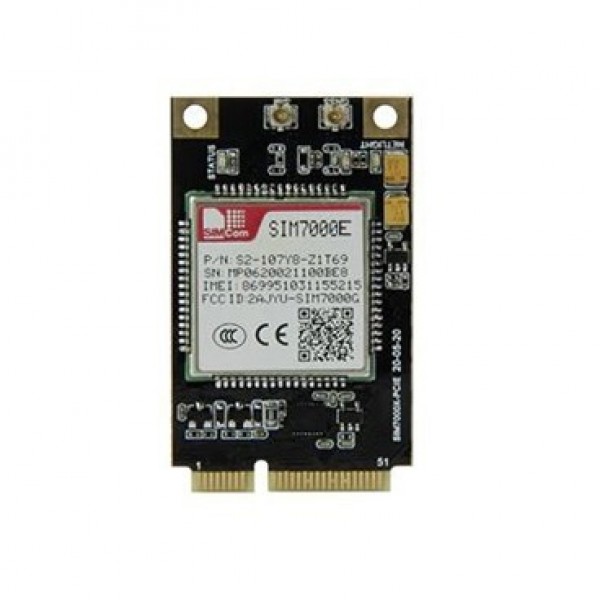

LilyGO TTGO T-PCIE SIM7000E Expansion Module

LilyGO TTGO T-PCIE SIM7000E Expansion Module
LilyGO TTGO T-PCIE SIM7000E Expansion Module
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004980
€30.00
Ex Tax: €24.79

The TTGO T-PCIE SIM7000E is an expansion module that can be mounted via the PCIe slot on a TTGO T-PCIE. The module is controlled via AT commands. The full list of AT commands can be found under the tab "Downloads".

See the following page for more information: GitHub

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over LilyGO TTGO T-PCIE SIM7000E Expansion Module

This product has 0 review(s) in total.

Specifications

General
Brand LilyGO TTGO
Manufacturer model/SKU H545
General physical appearance
Main color Black
Weight [g] 7
Dimension X [mm] 48
Dimension Y [mm] 31
Mounting options Mounting hole(s)
Clamp
Form factor Module (general)
Mini PCIe card
General electrical properties
Minimum supply voltage [V DC] 3
Maximum supply voltage [V DC] 4.3
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
Default baudrate Auto detect
Wireless communication
Interface(s) GNSS
Telecom
GNSS chip/SoC SIM7000E
Supported GNSS systems GPS
Beidou
GLONASS
Galileo
Maximum GNSS position accuracy [m] 2.5
Maximum GNSS update rate [Hz] 10
Telecom chip/SoC SIM7000E
Supported telecom networks 2G
LTE CAT M1
NB-IoT (LTE CAT NB1)
Supported 2G bands 900MHz
1800MHz
Supported NB-IoT bands B3
B8
B20
B28
Supported CAT M bands B3
B8
B20
B28
Connectors
Power supply connector(s) Mini PCIe male
IO-connector(s) Mini PCIe male
Telecom antenna connector IPEX MHF 1/uFL male
GNSS antenna connector IPEX MHF 1/uFL male
Package contents
Package contents 1x T-PCIE
1x LTE Antenna
1x GNSS Antenna
2x Mounting Screw
