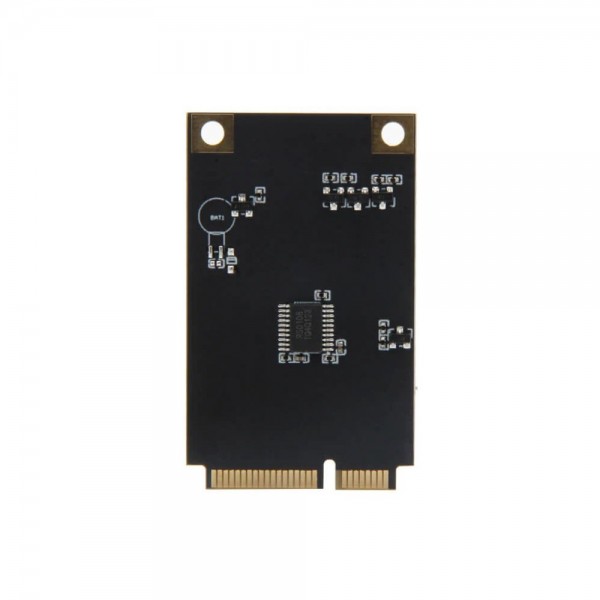

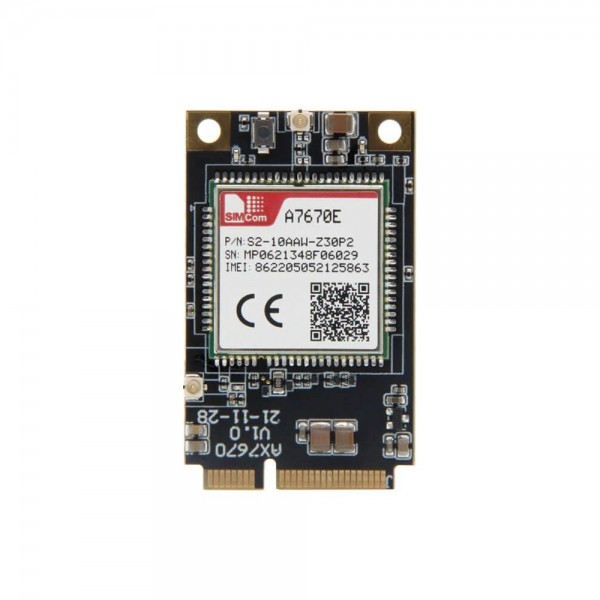

LilyGO TTGO T-PCIE A7670E Expansion Module

LilyGO TTGO T-PCIE A7670E Expansion Module
LilyGO TTGO T-PCIE A7670E Expansion Module
LilyGO TTGO T-PCIE A7670E Expansion Module
LilyGO TTGO T-PCIE A7670E Expansion Module
LilyGO TTGO T-PCIE A7670E Expansion Module
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004977
Based on 0 review(s) - Write a review
€26.50
Ex Tax: €21.90
10 or more €26.25
20 or more €26.00
50 or more €25.75
100 or more €25.50
500 or more €25.25
Add to Cart
Add to wishlist

The TTGO T-PCIE A7670E is an expansion module that can be mounted via the PCIe slot on a TTGO T-PCIE. The module is controlled via AT commands. The full list of AT commands can be found under the tab "Downloads".

See the following page for more information: GitHub

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over LilyGO TTGO T-PCIE A7670E Expansion Module

This product has 0 review(s) in total.

Tags: Telecommunication , Modules , LilyGO TTGO T-PCIE A7670E Expansion Module , 004977 , LilyGO TTGO , H542 , UART , Telecom , GNSS

Specifications

General
Brand LilyGO TTGO
Manufacturer model/SKU H542
General physical appearance
Main color Black
Weight [g] 7
Dimension X [mm] 48
Dimension Y [mm] 31
Mounting options Clamp
Mounting hole(s)
Form factor Mini PCIe card
Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.4
Maximum supply voltage [V DC] 4.2
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
Default baudrate 115200
Wireless communication
Interface(s) GNSS
Telecom
GNSS chip/SoC A7670E
Supported GNSS systems GPS
Beidou
GLONASS
Telecom chip/SoC A7670E
Supported telecom networks 2G
4G (LTE CAT 1)
Supported 2G bands 900MHz
1800MHz
Supported 4G bands B1, B3, B5, B7, B8, B20
Connectors
Power supply connector(s) Mini PCIe male
IO-connector(s) Mini PCIe male
Telecom antenna connector IPEX MHF 1/uFL male
GNSS antenna connector IPEX MHF 1/uFL male
Package contents
Package contents 1x T-PCIE
1x LTE Antenna
1x GNSS Antenna
2x Mounting Screw
