LilyGO TTGO T-PCIE A7608E-H Expansion Module
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005073
€34.75
Ex Tax: €28.72
Your shopping cart is empty!

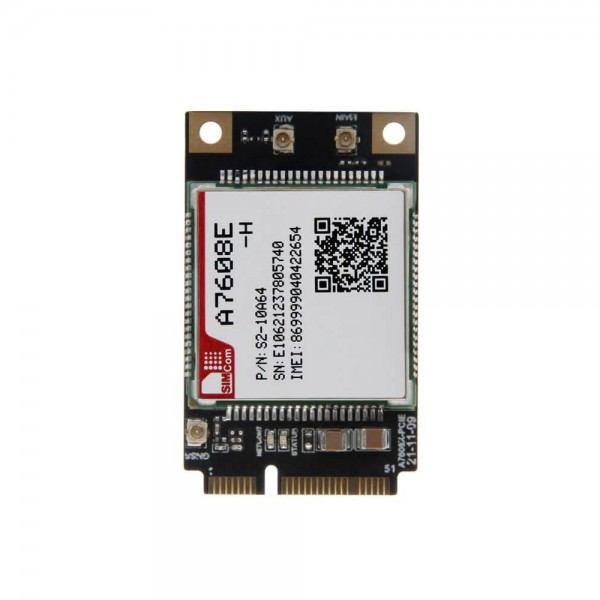

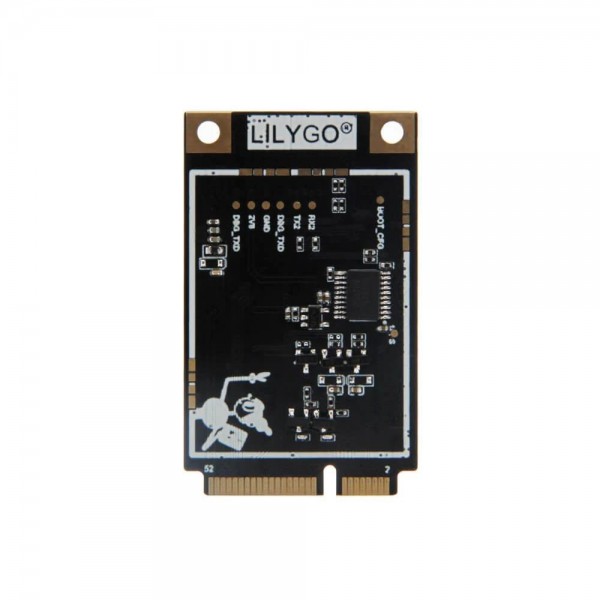

The TTGO T-PCIE A7608E-H is an expansion module that can be mounted via the PCIe slot on a TTGO T-PCIE. The module is controlled via AT commands.
The full list of AT commands can be found under the tab "Downloads".
See the following page for more information: GitHub
Check the tab "Downloads" for more information and/or downloads.
Communication protocol: 005073_SIM7500_SIM7600_Series_AT_Command_Manual_V3.00.pdf
| General | |
| Brand | LilyGO TTGO |
| Manufacturer model/SKU | H540 |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 9 |
| Dimension X [mm] | 48 |
| Dimension Y [mm] | 31 |
| Mounting options | Clamp Mounting hole(s) |
| Form factor | Mini PCIe card Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.4 |
| Maximum supply voltage [V DC] | 4.2 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | UART |
| Default baudrate | 115200 |
| Wireless communication | |
| Interface(s) | GNSS Telecom |
| GNSS chip/SoC | A7608E-H |
| Supported GNSS systems | GPS Beidou Galileo GLONASS |
| Maximum GNSS update rate [Hz] | 10 |
| Telecom chip/SoC | A7608E-H |
| Supported telecom networks | 2G 3G 4G (LTE CAT 4) |
| Supported 2G bands | 900MHz 1800MHz |
| Supported 3G bands | B1, B8 |
| Supported 4G bands | B1, B3, B5, B7, B8, B20, B28, B38, B40, B41 |
| Connectors | |
| Power supply connector(s) | Mini PCIe male |
| IO-connector(s) | Mini PCIe male |
| Telecom antenna connector | IPEX MHF 1/uFL male |
| GNSS antenna connector | IPEX MHF 1/uFL male |
| Package contents | |

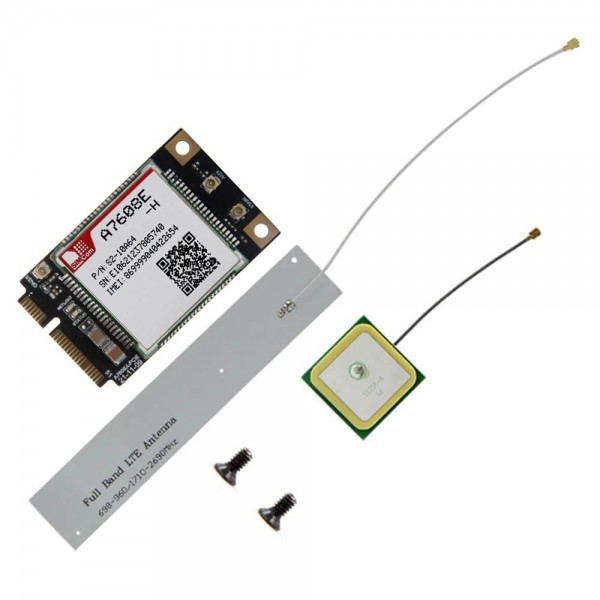

| Package contents | 1x T-PCIE 1x LTE antenna 1x GNSS antenna 2x Mounting screw |
