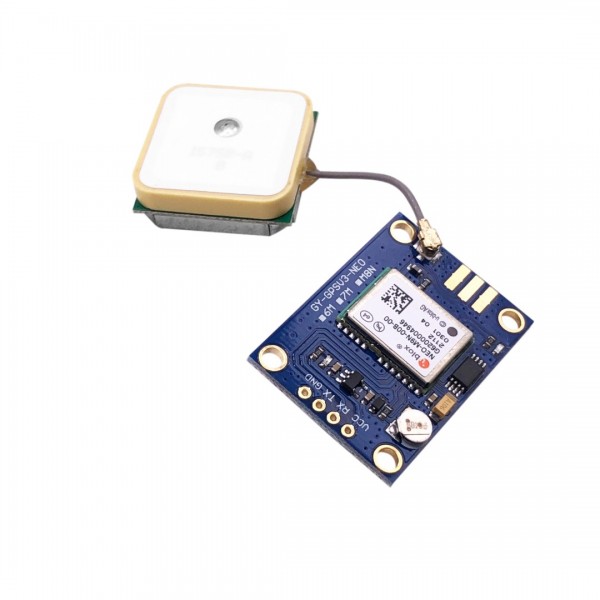

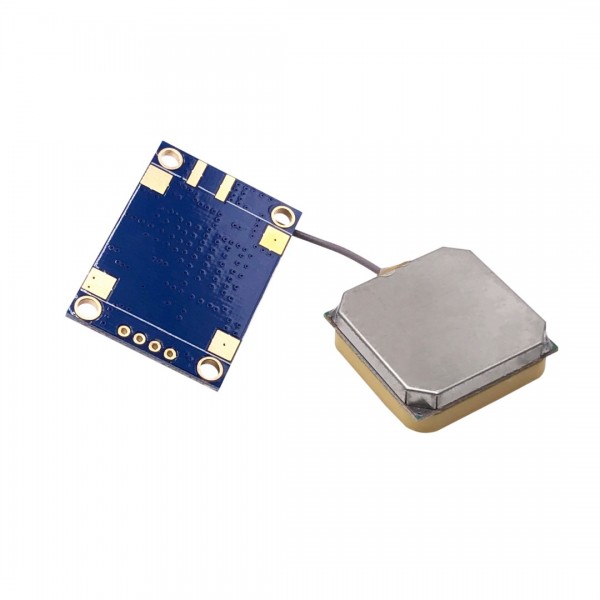

GY-GPSV3-NEO-M9N GNSS-GPS Module

GY-GPSV3-NEO-M9N GNSS-GPS Module
GY-GPSV3-NEO-M9N GNSS-GPS Module
GY-GPSV3-NEO-M9N GNSS-GPS Module
GY-GPSV3-NEO-M9N GNSS-GPS Module
GY-GPSV3-NEO-M9N GNSS-GPS Module
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004333
Based on 1 review(s) - Write a review
€26.75
Ex Tax: €22.11
10 or more €26.25
20 or more €26.00
50 or more €25.75
Add to Cart
Add to wishlist

A GPS module that works with UART (TX and RX) signals. The required GPS antenna is included with the module.

The TinyGPS++ library can be used to read the GPS module: TinyGPS++

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over GY-GPSV3-NEO-M9N GNSS-GPS Module

This product has 1 review(s) in total.

Tags: GPS , Modules , GY-GPSV3-NEO-M9N GNSS-GPS Module , 004333 , GY , GY-GPSV3-NEO-M9N , RTC , UART , GNSS

Specifications

General
Brand GY
Manufacturer model/SKU GY-GPSV3-NEO-M9N
Features RTC
General physical appearance
Main color Blue
Weight [g] 18
(including antenna)
Dimension X [mm] 36
Dimension Y [mm] 25
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Internal memory
EEPROM [B] 4096
EEPROM type Built-in
Communication
Hardware interface(s) UART
Default baudrate 38400
Wireless communication
Interface(s) GNSS
GNSS chip/SoC NEO-M9N
Supported GNSS systems GPS
QZSS
Beidou
Galileo
GLONASS
Maximum GNSS position accuracy [m] 2.0
Maximum GNSS update rate [Hz] 25
RTC
RTC chip NEO-M9N
Back-up battery/capacitor Yes
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)
GNSS antenna connector IPEX MHF 1/uFL male
Package contents
Package contents 1x GNSS Module
1x Antenna
