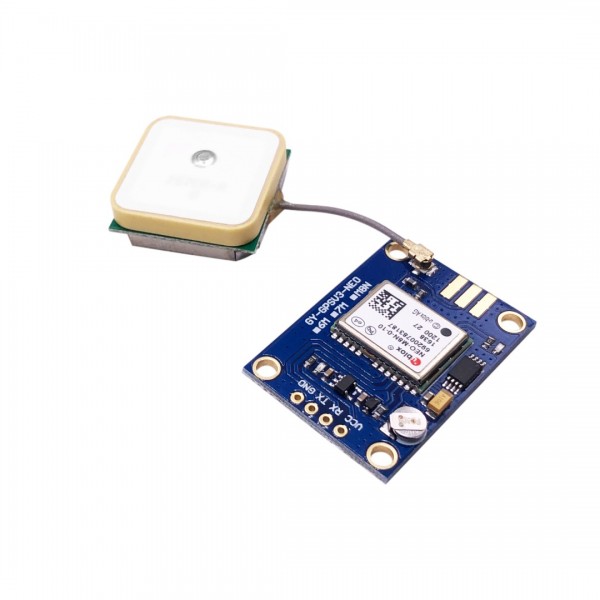

GY-GPSV3-NEO-M8N GNSS-GPS Module
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004332
€20.75
Ex Tax: €17.15
Your shopping cart is empty!
A GPS module that works with UART (TX and RX) signals. The required GPS antenna is included with the module.
The TinyGPS++ library can be used to read the GPS module: TinyGPS++
Check the tab "Downloads" for more information and/or downloads.
Datasheet: 004332_NEO-M8-FW3_DataSheet_UBX-15031086.pdf
| General | |
| Brand | GY |
| Manufacturer model/SKU | GY-GPSV3-NEO-M8N |
| Features | RTC |
| General physical appearance | |
| Main color | Blue |
| Weight [g] | 18 (including antenne) |
| Dimension X [mm] | 36 |
| Dimension Y [mm] | 25 |
| Mounting options | Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 3 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Internal memory | |
| EEPROM [B] | 4096 |
| EEPROM type | Built-in |
| Communication | |
| Hardware interface(s) | UART |
| Default baudrate | 9600 |
| Wireless communication | |
| Interface(s) | GNSS |
| GNSS chip/SoC | NEO-M8N |
| Supported GNSS systems | GPS Beidou GLONASS Galileo |
| Maximum GNSS position accuracy [m] | 2.0 |
| Maximum GNSS update rate [Hz] | 10 |
| RTC | |
| RTC chip | NEO-M8N |
| Back-up battery/capacitor | Yes |
| Connectors | |
| Power supply connector(s) | Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | Through hole solder pin(s) (2.54mm) |
| GNSS antenna connector | IPEX MHF 1/uFL male |
| Package contents | |
| Package contents | 1x GNSS Module 1x Antenna |
