DFRobot Gravity CAT4 SIM7600G-H 4G Communication Module - with GNSS

DFRobot Gravity CAT4 SIM7600G-H 4G Communication Module - with GNSS
DFRobot Gravity CAT4 SIM7600G-H 4G Communication Module - with GNSS
DFRobot Gravity CAT4 SIM7600G-H 4G Communication Module - with GNSS
DFRobot Gravity CAT4 SIM7600G-H 4G Communication Module - with GNSS
DFRobot Gravity CAT4 SIM7600G-H 4G Communication Module - with GNSS
DFRobot Gravity CAT4 SIM7600G-H 4G Communication Module - with GNSS
DFRobot Gravity CAT4 SIM7600G-H 4G Communication Module - with GNSS
DFRobot Gravity CAT4 SIM7600G-H 4G Communication Module - with GNSS
DFRobot Gravity CAT4 SIM7600G-H 4G Communication Module - with GNSS
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006210
Based on 0 review(s) - Write a review
€76.00
Ex Tax: €62.81
Add to Cart
Add to wishlist

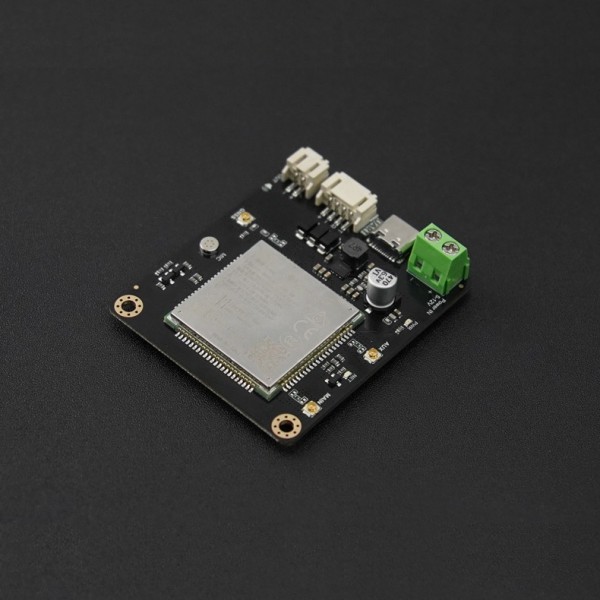

A telecommunication and GNSS module from DFRobot. This module supports calling, SMS and data transfer. It is well suited for situations that require high-speed communication with other devices. The module has a connector for an external speaker and works via the USB-C port or UART interface.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Gravity CAT4 SIM7600G-H 4G Communication Module - with GNSS

This product has 0 review(s) in total.

Tags: DFRobot Gravity CAT4 SIM7600G-H 4G Communication Module - with GNSS , DFROBOT-TEL0162 , Modules

Specifications

General
Brand DFRobot
Manufacturer model/SKU TEL0162
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Audio amplifier
Microphone
General physical appearance
Main color Black
Weight [g] 24

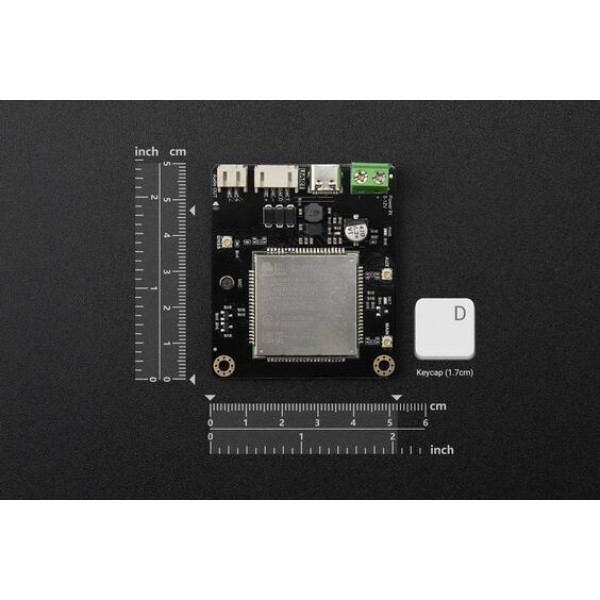

Dimension X [mm] 60
Dimension Y [mm] 52
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3.1
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 12
(screw terminal)
5
(via USB or '+' pin)
Minimum IO-pin input voltage [V] 1.8
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] Equal to supply voltage
(on '+' pin)
Communication
Hardware interface(s) UART
USB
Default baudrate 115200
Supported SIM card size Mini-SIM
Wireless communication
Interface(s) GNSS
Telecom
GNSS chip/SoC SIM7600G-H
Supported GNSS systems GPS
Beidou
GLONASS
Galileo
QZSS
Maximum GNSS position accuracy [m] 2.5
Maximum GNSS update rate [Hz] 10
Telecom chip/SoC SIM7600G-H
Supported telecom networks 2G
3G
4G (LTE CAT 4)
Supported 2G bands 850MHz
900MHz
1800MHz
1900MHz
Supported 3G bands B1, B2, B4, B5, B6, B8, B19
Supported 4G bands B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B34, B38, B39, B40, B41, B66
Sound sensor
Sensor (chip(s)) NAU88C10
Type Microphone
Audio amplifier
Amplifier chip NAU88C10
Number of (normal) channels 1
Maximum power per (normal) channel [W] 0.4
Minimum speaker impedance per (normal) channel [Ω] 8
Maximum speaker impedance per (normal) channel [Ω] 8
Connectors
Power supply connector(s) Screw terminal
JST-PH (compatible) male
USB-C female
IO-connector(s) JST-PH (compatible) male
USB-C female
Speaker connector(s) JST-PH (compatible) male
Telecom antenna connector IPEX MHF 1/uFL male
GNSS antenna connector IPEX MHF 1/uFL male

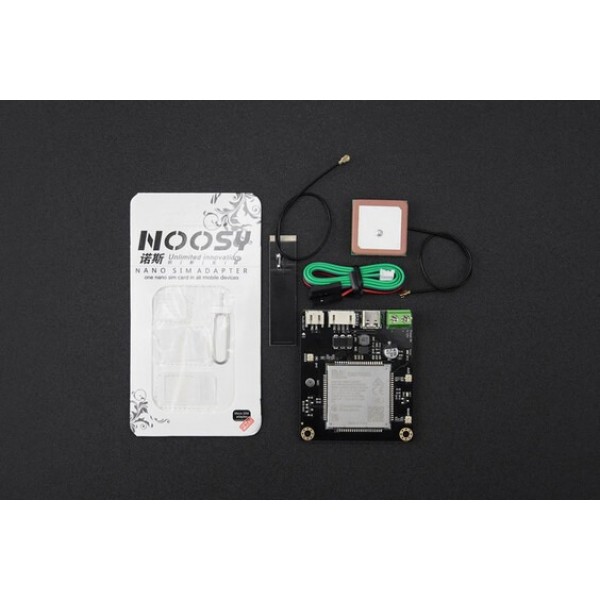

Package contents
Package contents 1x JST-PH to DuPont female cable
1x Telecom module
1x Telecom antenna
1x Simk card adapter kit
1x GNSS (GPS) antenna
