Name: DFRobot Gravity CAT1 SIM7600G 4G Communication Module - with GNSS - DFROBOT-TEL0161
Brand: DFRobot
SKU: 006201
Price: 60 EUR
Availability: InStock

DFRobot Gravity CAT1 SIM7600G 4G Communication Module - with GNSS

New

DFRobot Gravity CAT1 SIM7600G 4G Communication Module - with GNSS

Availability: Directly available from warehouse in Eindhoven
SKU: 006201

Based on 0 review(s) - Write a review

€60.00

Ex Tax: €49.59

Qty

Add to Cart

Add to wishlist

Only 9 pieces in stock

Description
Reviews

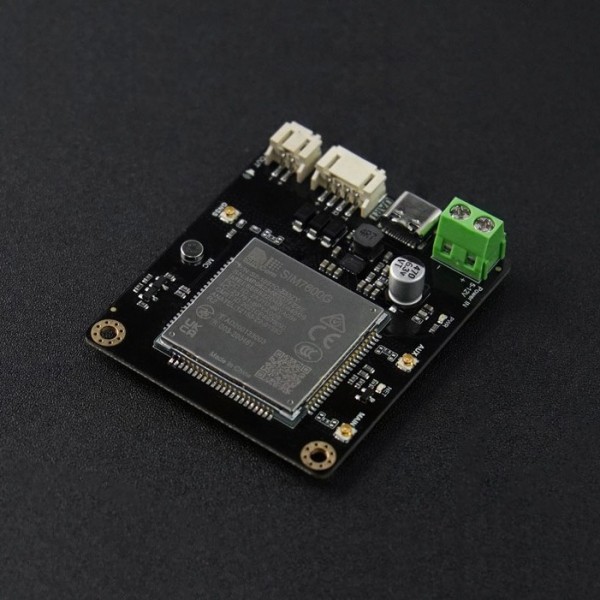

A telecommunication and GNSS module from DFRobot. This module supports calling, SMS and data transfer. It is well suited for situations that require high-speed communication with other devices. The module has a connector for an external speaker and works via the USB-C port or UART interface.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Gravity CAT1 SIM7600G 4G Communication Module - with GNSS

Average Rating:

This product has 0 review(s) in total.

Tags: DFRobot Gravity CAT1 SIM7600G 4G Communication Module - with GNSS , DFROBOT-TEL0161 , Modules

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	TEL0161
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Audio amplifier Microphone
General physical appearance
Main color	Black
Weight [g]	24
Dimension X [mm]	60
Dimension Y [mm]	52
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.1
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	12 (screw terminal) 5 (via USB or '+' pin)
Minimum IO-pin input voltage [V]	1.8
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage (on '+' pin)
Communication
Hardware interface(s)	UART USB
Default baudrate	115200

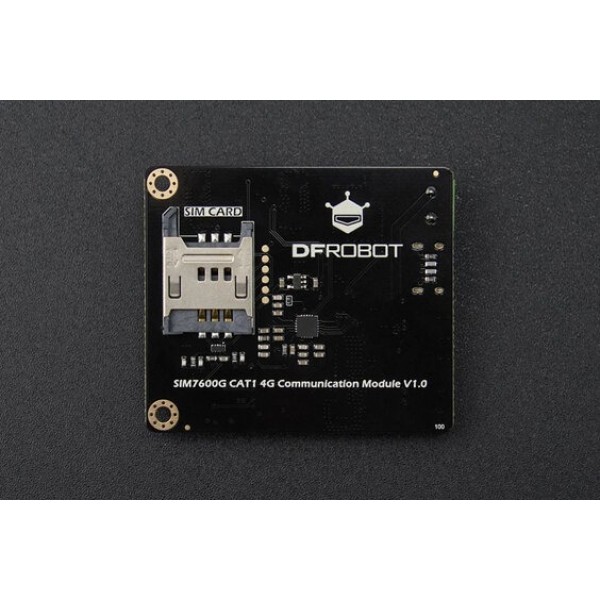

Supported SIM card size	Mini-SIM
Wireless communication
Interface(s)	GNSS Telecom
GNSS chip/SoC	SIM7600G
Supported GNSS systems	GPS Beidou GLONASS
Maximum GNSS position accuracy [m]	2.5
Maximum GNSS update rate [Hz]	10
Telecom chip/SoC	SIM7600G
Supported telecom networks	2G 4G (LTE CAT 1) 3G
Supported 2G bands	850MHz 900MHz 1800MHz 1900MHz
Supported 3G bands	B1 B2 B4 B5 B6 B8 B19
Supported 4G bands	B1 B2 B3 B4 B5 B7 B8 B12 B13 B18 B19 B20 B25 B26 B28 B34 B38 B39 B40 B41 B66
Sound sensor
Sensor (chip(s))	NAU88C10
Type	Microphone
Audio amplifier
Amplifier chip	NAU88C10
Number of (normal) channels	1
Maximum power per (normal) channel [W]	0.4
Minimum speaker impedance per (normal) channel [Ω]	8
Maximum speaker impedance per (normal) channel [Ω]	8
Connectors
Power supply connector(s)	Screw terminal JST-PH (compatible) male USB-C female
IO-connector(s)	JST-PH (compatible) male USB-C female
Speaker connector(s)	JST-PH (compatible) male
Telecom antenna connector	IPEX MHF 1/uFL male
GNSS antenna connector	IPEX MHF 1/uFL male
Package contents

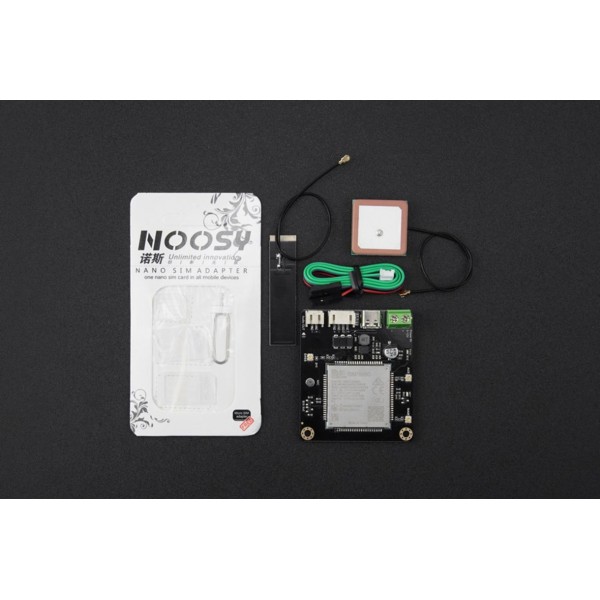

Package contents	1x JST-PH to DuPont female cable 1x Telecom module 1x Telecom antenna 1x Simk card adapter kit 1x GNSS (GPS) antenna
