Waveshare Bluetooth 5.1 Module - for Raspberry Pi Pico
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004832
€5.25
Ex Tax: €4.34
Your shopping cart is empty!

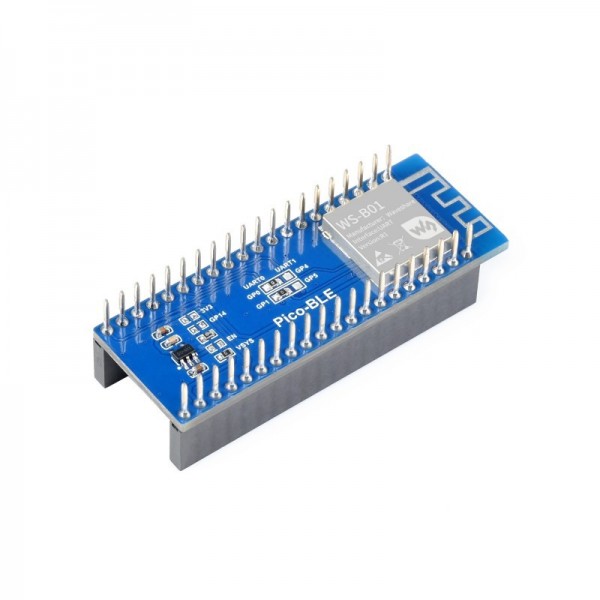

This Bluetooth module from Waveshare is made for the Raspberry Pi Pico or other microcontrollers that use the same pin layout.
See the following page for more information: Wiki
This product has 0 review(s) in total.
| General | |
| Brand | Waveshare |
| Manufacturer model/SKU | 21474 |
| Model revision | V1.1 |
| Minimum operating humidity [%R.H.] | 5 |
| Maximum operating humidity [%R.H.] | 95 |
| Minimum operating temperature [°C] | -40 |
| Maximum operating temperature [°C] | 85 |
| General physical appearance | |
| Main color | Blue |
| Weight [g] | 10 |

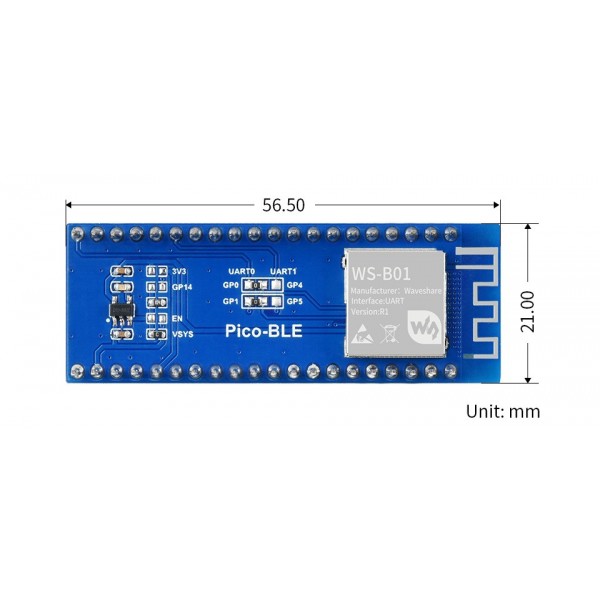

| Dimension X [mm] | 57 |
| Dimension Y [mm] | 21 |
| Mounting options | Pin headers |
| Form factor | Module (general) Raspberry Pi Pico layout/shield |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |

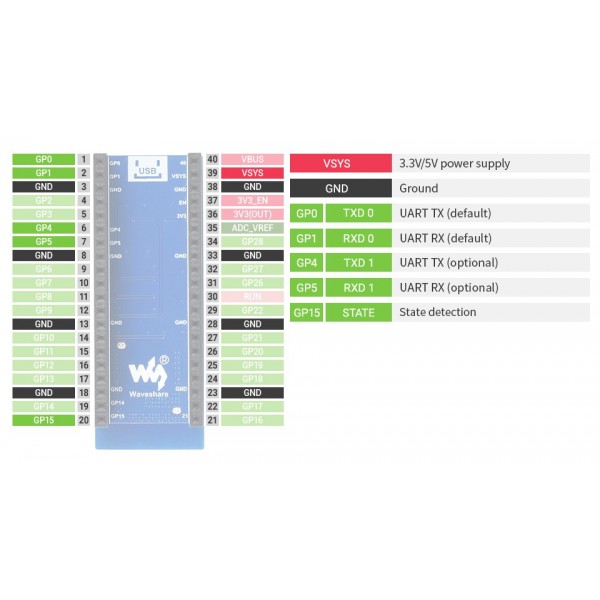

| Hardware interface(s) | UART |
| Default baudrate | 115200 |
| Wireless communication | |
| Interface(s) | Bluetooth |
| Bluetooth version | 5.1 |
| Supported Bluetooth standard(s) | LE Classic |
| Bluetooth master/slave | Slave |
| Connectors | |
| Power supply connector(s) | Pin header male (2.54mm) Pin header female (2.54mm) |
| IO-connector(s) | Pin header male (2.54mm) Pin header female (2.54mm) |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Package contents | |
| Package contents | 1x Bluetooth module |
