Keyestudio HM-10 Bluetooth 4.0 Module V3

2-4 Weeks

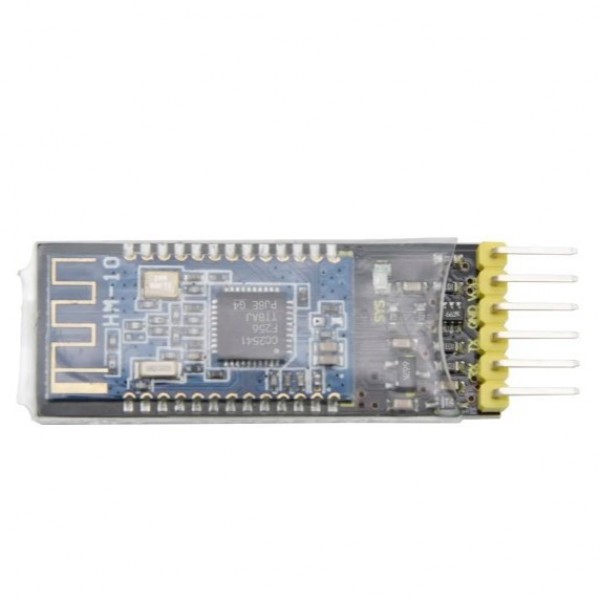

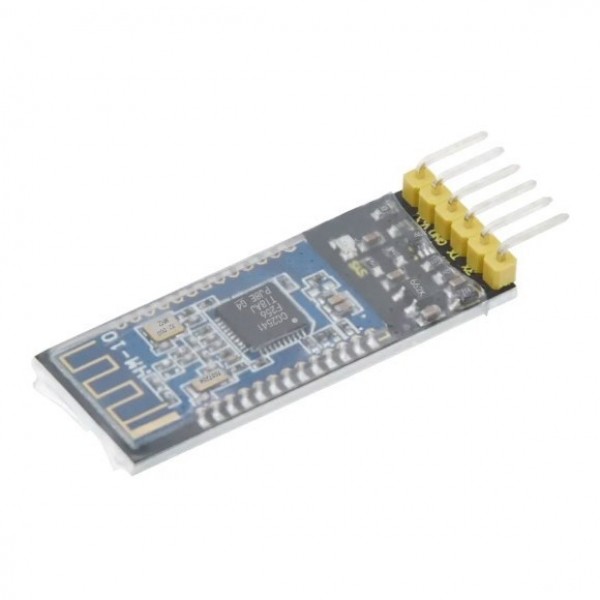

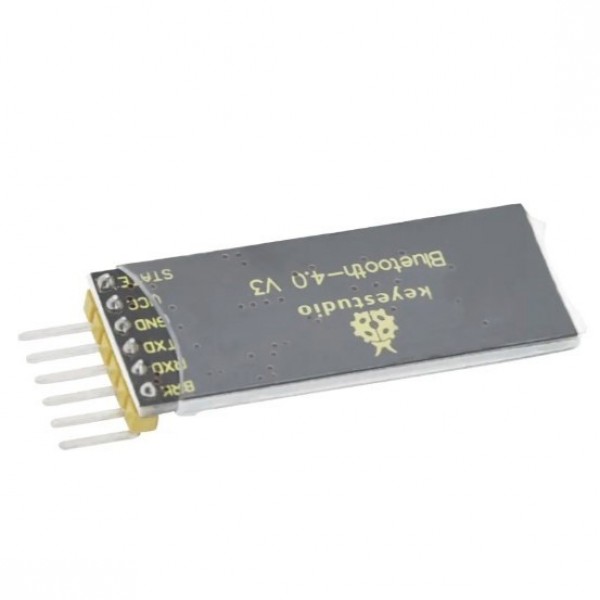

Keyestudio HM-10 Bluetooth 4.0 Module V3

Availability: 2-4 Weeks
SKU: 006335

Based on 0 review(s) - Write a review

€8.00

Ex Tax: €6.61

Qty

Add to Cart

Add to wishlist

Not in stock

Description
Reviews

A Bluetooth 4.0 communication module from Keyestudio. This module can be used for both sending and receiving. The pinout is compatible with HC-C06 Bluetooth modules.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Keyestudio HM-10 Bluetooth 4.0 Module V3

Average Rating:

This product has 0 review(s) in total.

Tags: Keyestudio HM-10 Bluetooth 4.0 Module V3 , KS0455 , Modules

Specifications

General
Brand	Keyestudio
Manufacturer model/SKU	KS0455
Minimum operating temperature [°C]	-5
Maximum operating temperature [°C]	65
General physical appearance
Main color	Black
Weight [g]	5
Dimension X [mm]	43
Dimension Y [mm]	17
Mounting options	Pin headers
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	5
Communication
Hardware interface(s)	UART
Default baudrate	9600
Wireless communication
Interface(s)	Bluetooth
Bluetooth chip/SoC	CC2541
Bluetooth version	4.0
Supported Bluetooth standard(s)	LE
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x Bluetooth module
