Name: DFRobot Gravity BLE Sensor Beacon Pack - 5 pieces - DFROBOT-TEL0149
Brand: DFRobot
SKU: 005423
Price: 15.5 EUR
Availability: InStock

DFRobot Gravity BLE Sensor Beacon Pack - 5 pieces

Availability: Directly available from warehouse in Eindhoven
SKU: 005423

Based on 0 review(s) - Write a review

€15.50

Ex Tax: €12.81

Qty

Add to Cart

Add to wishlist

Only 5 pieces in stock

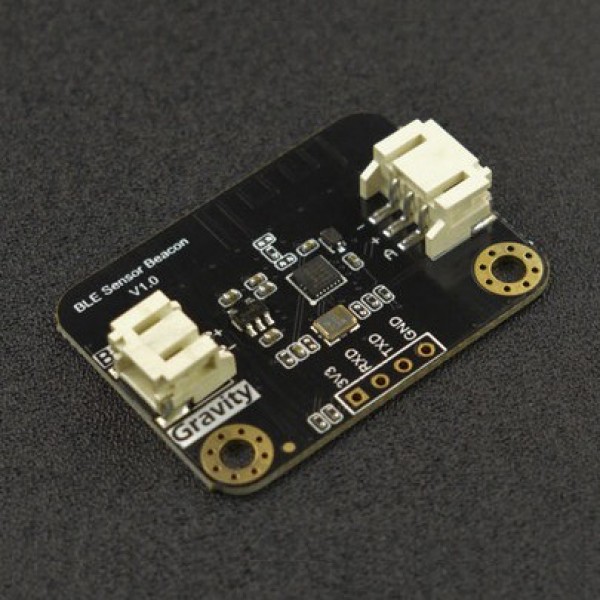

This wireless BLE sensor beacon from DFRobot can collect data from a digital or analog sensor and broadcast the value via BLE. Other devices with Bluetooth, such as a smartphone or microcontroller with Bluetooth (e.g. an ESP32) can then read out the value.

See the following page for more information: Wiki

Note: Because the code on this product can be locked, it cannot be returned once the sealed package has been opened.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DFRobot Gravity BLE Sensor Beacon Pack - 5 pieces

Average Rating:

This product has 0 review(s) in total.

Datasheet: 005423_IN100_datasheet.pdf

Schematic: 005423_TEL0149_schematic.pdf

Tags: DFRobot Gravity BLE Sensor Beacon Pack - 5 pieces , DFROBOT-TEL0149 , Modules

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	TEL0149
Features	Microcontroller
General physical appearance
Main color	Black
Weight [g]	4

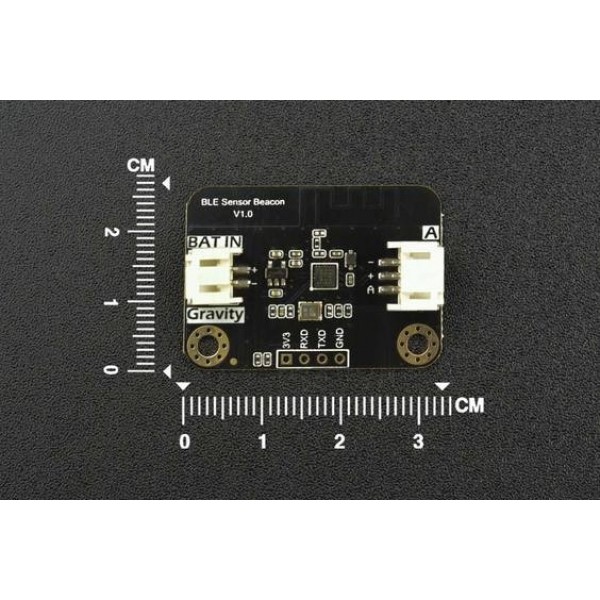

Dimension X [mm]	37
Dimension Y [mm]	27
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5.5 (via JST-PH) 3.3 (via through hole solder pins)
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	4
Maximum IO-pin sink current [mA]	4
MCU/SoC
Manufacturer	InPlay
Chip series	IN100
Maximum clock frequency [MHz]	26
Number of cores	1
Internal memory
SRAM [KB]	4
Communication
Hardware interface(s)	UART ADC GPIO (UART for programming only)
Number of IO-pins	1
Maximum available analog input pins (ADC)	1
USB to serial converter	None
Wireless communication
Interface(s)	Bluetooth
Bluetooth chip/SoC	IN100
Bluetooth version	5.3
Supported Bluetooth standard(s)	LE
Connectors
Power supply connector(s)	JST-PH (compatible) male Through hole solder pin(s) (2.54mm)
IO-connector(s)	JST-PH (compatible) male Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents

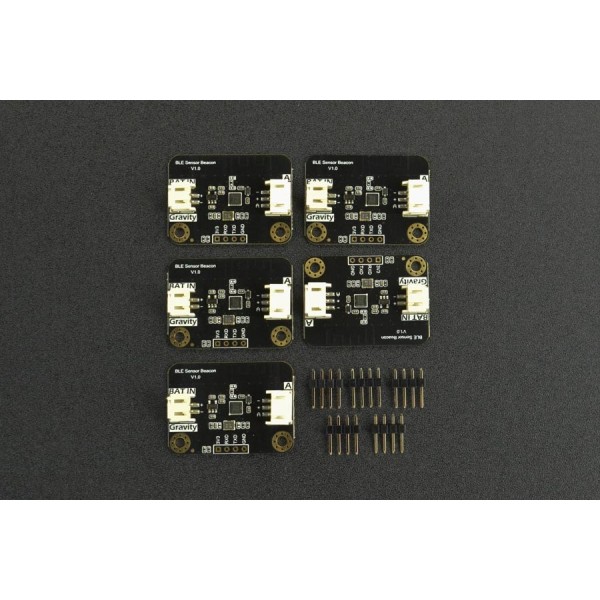

Package contents	5x BLE Beacon 5x Male pin header 4p
