DFRobot Fermion BLE Sensor Beacon Pack - 5 pieces

DFRobot Fermion BLE Sensor Beacon Pack - 5 pieces
DFRobot Fermion BLE Sensor Beacon Pack - 5 pieces
DFRobot Fermion BLE Sensor Beacon Pack - 5 pieces
DFRobot Fermion BLE Sensor Beacon Pack - 5 pieces
DFRobot Fermion BLE Sensor Beacon Pack - 5 pieces
DFRobot Fermion BLE Sensor Beacon Pack - 5 pieces
DFRobot Fermion BLE Sensor Beacon Pack - 5 pieces
DFRobot Fermion BLE Sensor Beacon Pack - 5 pieces
DFRobot Fermion BLE Sensor Beacon Pack - 5 pieces
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006001
Based on 0 review(s) - Write a review
€17.25
Ex Tax: €14.26
Add to Cart
Add to wishlist

This wireless BLE sensor beacon from DFRobot can collect data from a digital or analog sensor and broadcast the value via BLE. Other devices with Bluetooth, such as a smartphone or microcontroller with Bluetooth (e.g. an ESP32) can then read out the value.

Note: Because the code on this product can be locked, it cannot be returned once the sealed package has been opened.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Fermion BLE Sensor Beacon Pack - 5 pieces

This product has 0 review(s) in total.

Tags: Bluetooth , Modules , DFRobot Fermion BLE Sensor Beacon Pack - 5 pieces , 006001 , DFRobot , TEL0168 , Battery holder , Microcontroller (MCU) , ADC , GPIO , I2C , UART , Bluetooth

Specifications

General
Brand DFRobot
Manufacturer model/SKU TEL0168
Features Battery holder
Microcontroller (MCU)
General physical appearance
Main color Black
Weight [g] 6

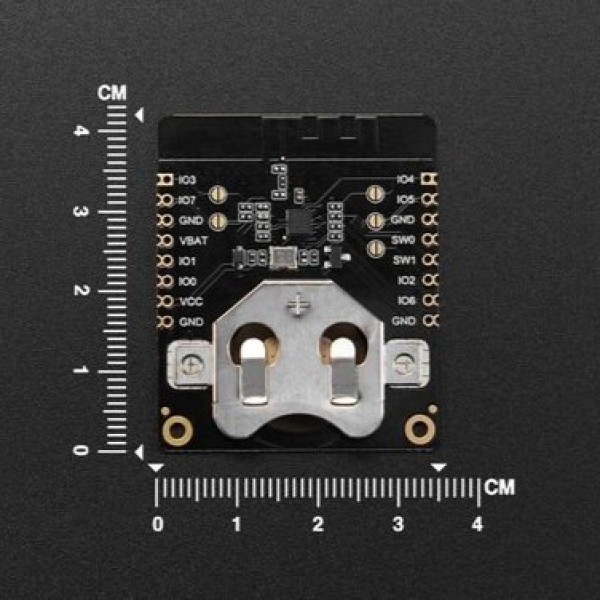

Dimension X [mm] 42
Dimension Y [mm] 35
Mounting options SMT
Mounting hole(s)
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 1.1
Maximum supply voltage [V DC] 3.6
Minimum IO-pin input voltage [V] 1.1
Maximum IO-pin input voltage [V] 3.6
IO-pin output voltage [V] Equal to supply voltage
Maximum IO-pin source current [mA] 4
Maximum IO-pin sink current [mA] 4
MCU
Manufacturer InPlay
Chip series IN100
Maximum clock frequency [MHz] 26
Number of cores 1
Internal memory
SRAM [KB] 4
Communication
Hardware interface(s) ADC
I2C
GPIO
UART
(UART for programming only)
Number of IO-pins 8
Maximum available hardware PWM channels 0
Maximum available analog input pins (ADC) 4
Maximum ADC measuring voltage [V] 1.6
(IO4, IO5, IO7)
3.3
(IO6)
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 0
Maximum available hardware I2C interfaces 1
Maximum available hardware SPI interfaces 0
USB to serial converter None
Wireless communication
Interface(s) Bluetooth
Bluetooth chip/SoC IN100
Bluetooth version 5.3
Supported Bluetooth standard(s) LE
Battery holder
Suitable battery form factor Button cell 2032
Suitable number of batteries 1
Connectors
Power supply connector(s) Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
IO-connector(s) Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Package contents

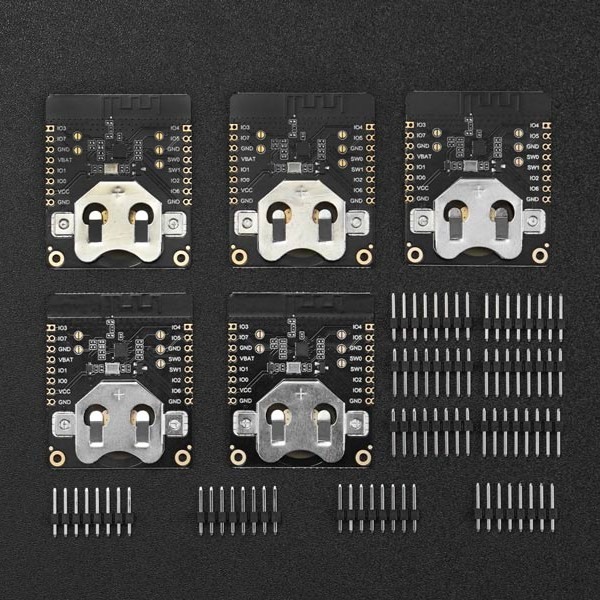

Package contents 5x BLE sensor beacon
10x Pinheader male 8p
