DFRobot Bluno Bee XBee Bluetooth Module - CC2540
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005093
€10.25
Ex Tax: €8.47
Your shopping cart is empty!

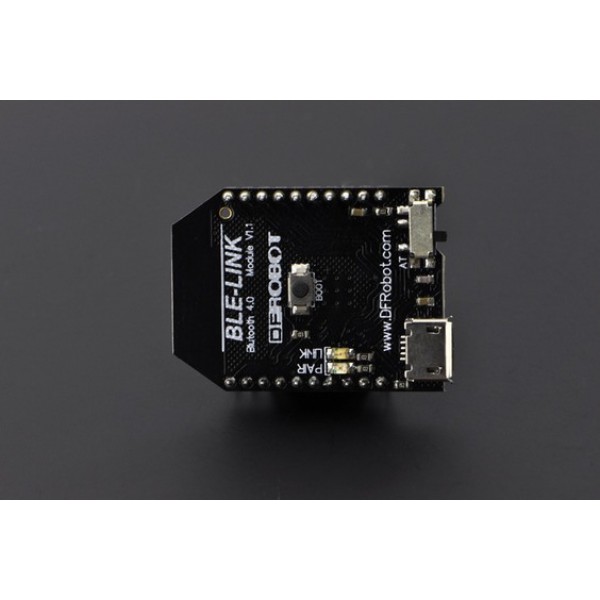

This Bluno Bee is a Bluetooth module from DFRobot with XBee form factor. To be used with, for example, the Xbee V3 Arduino Adapter Shield to connect to an Arduino. The firmware can be updated via the micro USB connection.
See the following page for more information: Wiki
This product has 0 review(s) in total.
| General | |
| Brand | DFRobot |
| Manufacturer model/SKU | TEL0073 |
| Model revision | V1.1 |
| Minimum operating temperature [°C] | -40 |
| Maximum operating temperature [°C] | 85 |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 3 |

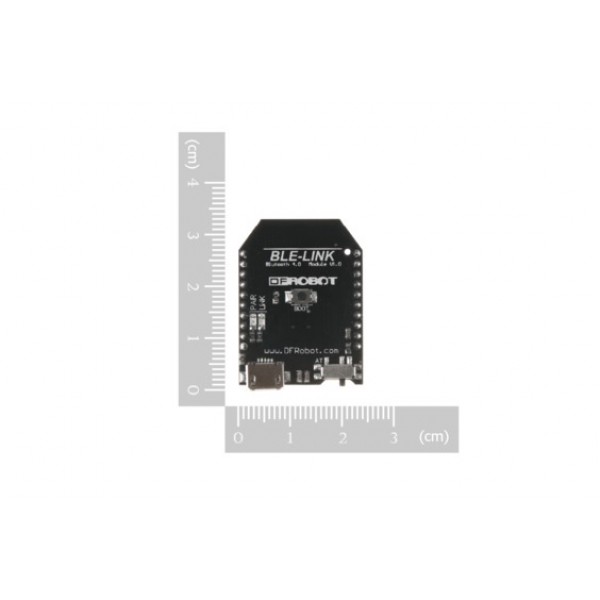

| Dimension X [mm] | 33 |
| Dimension Y [mm] | 24 |
| Mounting options | Pin headers |
| Form factor | XBEE layout Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | UART |
| Protocol | AT-commands |
| Wireless communication | |
| Bluetooth chip/SoC | CC2540 |
| Bluetooth version | 4.0 |
| Supported Bluetooth standard(s) | LE |
| Connectors | |
| Power supply connector(s) | Micro USB female Pin header male (2.00mm) |
| IO-connector(s) | Micro USB female Pin header male (2.00mm) |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Package contents | |
| Package contents | 1x Bluno Bee |
