Name: Bluetooth HC-07D Module RF Transceiver Slave - Bluetooth 2.0 - HC-07DSL
SKU: 004374
Price: 8 EUR
Availability: InStock

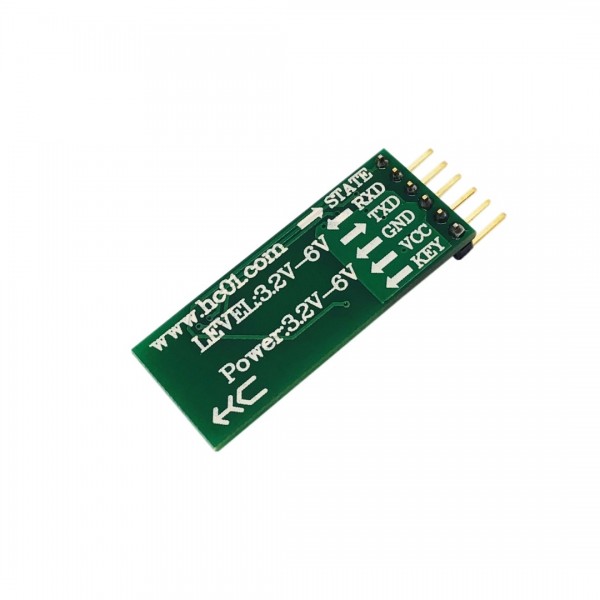

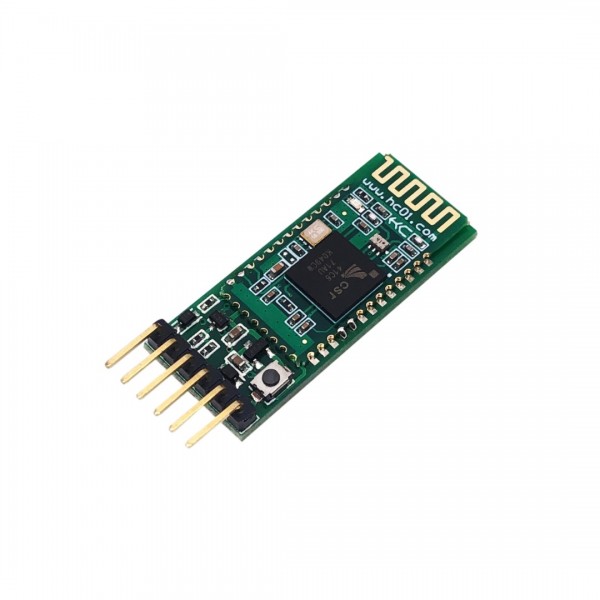

Bluetooth HC-07D Module RF Transceiver Slave - Bluetooth 2.0

Availability: Directly available from warehouse in Eindhoven
SKU: 004374

Based on 0 review(s) - Write a review

€8.00

Ex Tax: €6.61

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

With this Bluetooth module you can easily send data serially to, for example, your telephone, tablet or other Bluetooth modules. This Bluetooth module can only serve as a slave.

For more information, see the (Chinese) datasheet under the tab "Downloads".

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Bluetooth HC-07D Module RF Transceiver Slave - Bluetooth 2.0

Average Rating:

This product has 0 review(s) in total.

Datasheet: 004374_HC-07V1.6.pdf

Tags: Bluetooth HC-07D Module RF Transceiver Slave - Bluetooth 2.0 , HC-07DSL , Modules

Specifications

General
Brand	HC01
Manufacturer model/SKU	HC-07D
General physical appearance
Main color	Green
Weight [g]	4
Dimension X [mm]	37
Dimension Y [mm]	16
Mounting options	Pin headers
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.2
Maximum supply voltage [V DC]	6
Minimum IO-pin input voltage [V]	3.2
Maximum IO-pin input voltage [V]	6
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	UART
Default baudrate	9600
Wireless communication
Interface(s)	Bluetooth
Bluetooth version	2.0
Supported Bluetooth standard(s)	Classic
Bluetooth master/slave	Slave
Default Bluetooth password	1234
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x Bluetooth module
