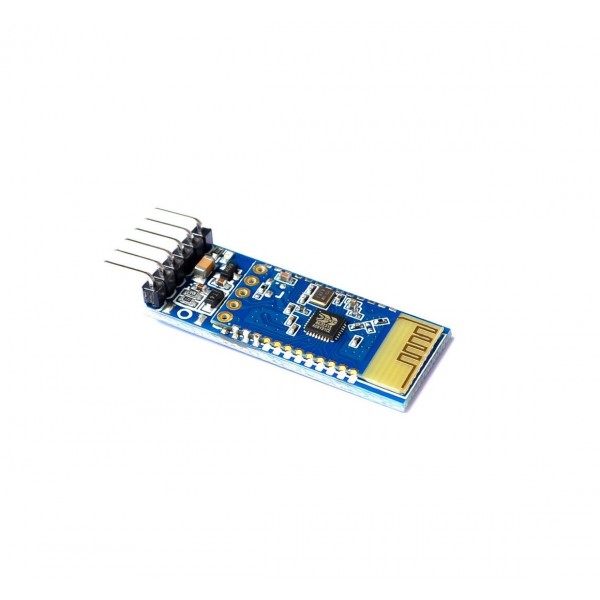

Bluetooth BT-04 module RF transceiver Slave SPP-C

With this bluetooth module it is very easy to send serial data to your phone, tablet, pc or other SPP-C modules. This bluetooth module can run only in slave mode.

Specifications:

• Input voltage: 3.6 - 6V
• Signal voltage: 3.3V (gebruik een level converter of een spanningsdeler op het RX signaal van deze module!)
• Range: around 10m (in open air)
• LED indication for Bluetooth connection status
• Baudrate in default mode: 9600 (adjustable)
• Default Bluetooth pin/password: 1234
• Bluetooth version: 2.1
• Dimensions: 38x17x7mm (pin headers not included)

For more information: Examples with SPP-C bluetooth modules

Note: It is a known issue that Apple products (iPhones, iPads, iPods) do not support this Bluetooth module. This is a limitation in Apple software. We advise the HM-10 BT4.0 module to use as a replacement module.
