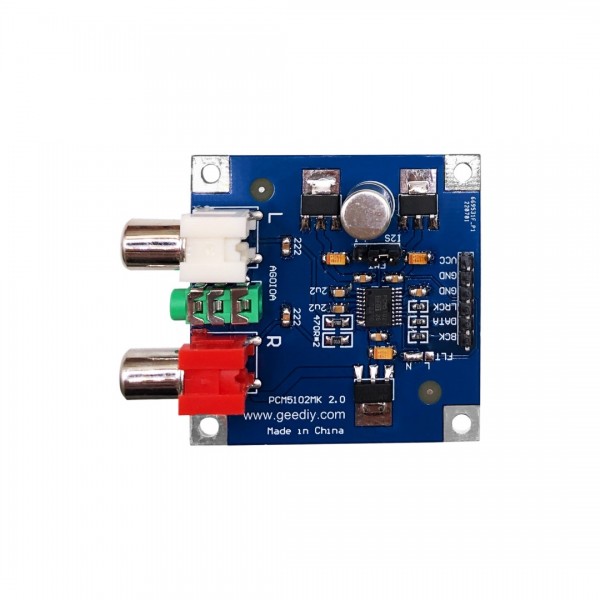

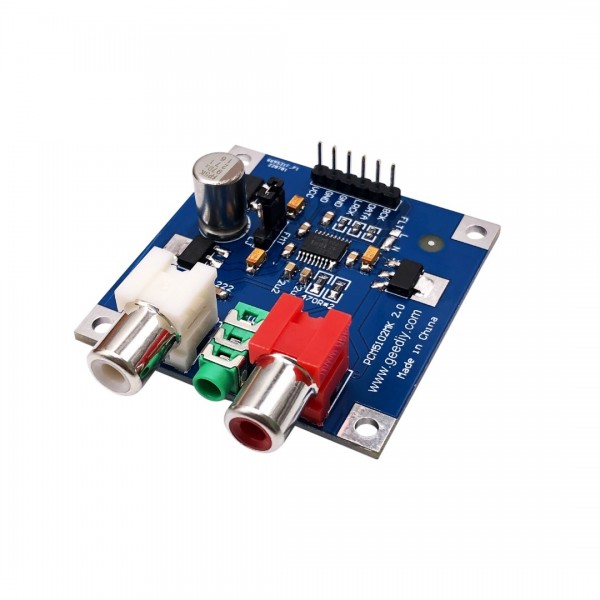

PCM5102 DAC Audio Decoder Module V2.0 - I2S
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005154
€8.00
Ex Tax: €6.61
Your shopping cart is empty!
A DAC module that operates on the I2S (inter-IC sound) interface, suitable to convert a digital audio signal to an analog stereo signal. This is version 2.0 of this board with a 3.5mm audio jack connector.
Check the tab "Downloads" for more information and/or downloads.
Datasheet: 005154_pcm5102-datasheet.pdf
General | |
Brand | No brand |
Manufacturer model/SKU | PCM5102MK |
Model revision | 2.0 |
General physical appearance | |
Main color | Blue |
Weight [g] | 16 |
Dimension X [mm] | 48 |
Dimension Y [mm] | 48 |
Mounting options | Mounting hole(s) |
Form factor | Module (general) |
General electrical properties | |
Minimum supply voltage [V DC] | 5 |
Maximum supply voltage [V DC] | 10 |
Minimum IO-pin input voltage [V] | 3.3 |
Maximum IO-pin input voltage [V] | 3.3 |
Communication | |
Hardware interface(s) | I2S DAC |
DAC chip | PCM5102 |
Maximum available analog output pins (DAC) | 2 (Stereo) |
DAC resolution [bit] | 32 |
Connectors | |
Power supply connector(s) | Pin header male (2.54mm) |
IO-connector(s) | Pin header male (2.54mm) Audio jack 3.5mm female RCA female |
Package contents | |
Package contents | 1x PCM5102 DAC Module |
