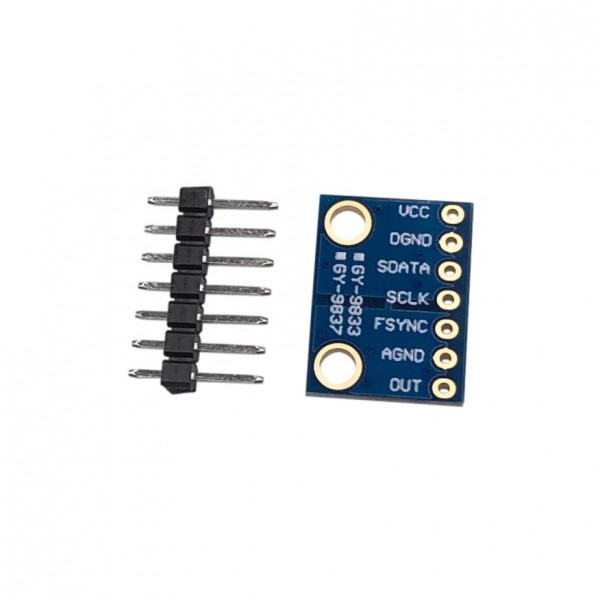

GY-AD9833 DDS Signal Generator Module
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005466
€9.50
Ex Tax: €7.85
Your shopping cart is empty!
This DDS (Direct Digital Synthesizer) module with AD9833 chip can generate a certain desired signal.
See the following page for more information: GitHub
Check the tab "Downloads" for more information and/or downloads.
Datasheet: 005466_ad9833_datasheet.pdf
| General | |
| Brand | GY |
| Manufacturer model/SKU | GY-AD9833 |
| Features | Signal generator |
| General physical appearance | |
| Main color | Blue |
| Weight [g] | 1 |
| Dimension X [mm] | 18 |
| Dimension Y [mm] | 13 |
| Mounting options | Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 3.1 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 2.3 |
| Maximum supply voltage [V DC] | 5.5 |
| Minimum IO-pin input voltage [V] | 2.3 |
| Maximum IO-pin input voltage [V] | 5.5 |
| IO-pin output voltage [V] | Equal to supply voltage |
| Communication | |
| Hardware interface(s) | DAC SPI |
| DAC chip | AD9833 |
| DAC type | Signal generator |
| Maximum available analog output pins (DAC) | 1 |
| DAC resolution [bit] | 10 |
| Maximum DAC output voltage [V] | 0.65 |
| Connectors | |
| Power supply connector(s) | Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | Through hole solder pin(s) (2.54mm) |
| Package contents | |
| Package contents | 1x GY-AD9833 1x Male pin header 7p |
