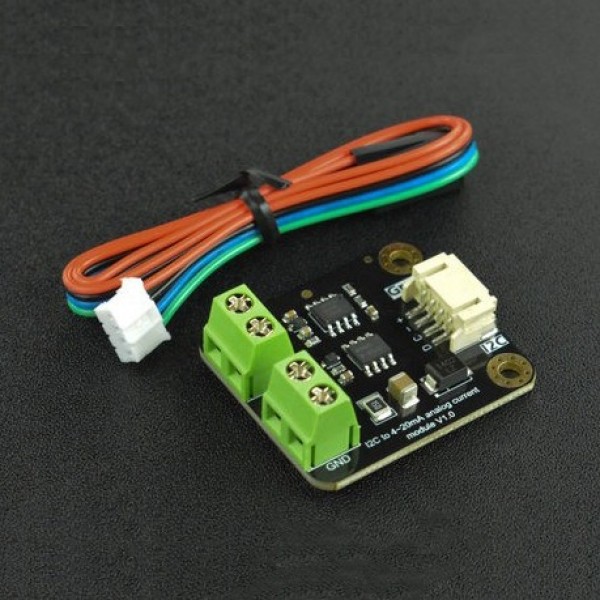

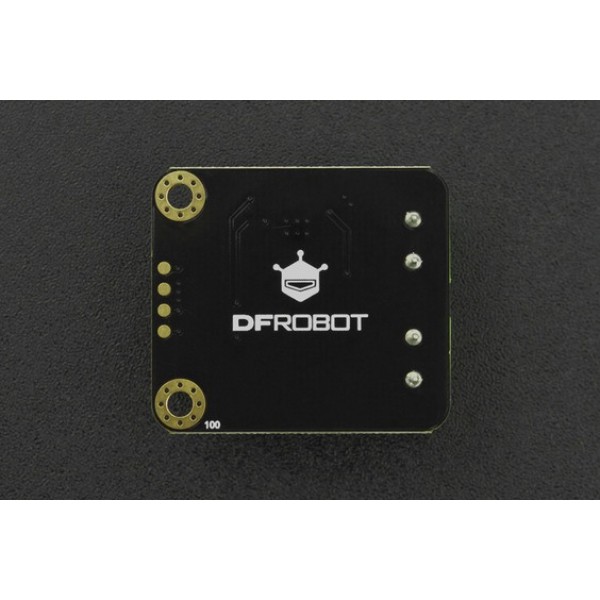

DFRobot Gravity I2C 4-20mA DAC Module - Digital to Analog Current Converter

Based on 0 review(s) - Write a review

€11.00

Ex Tax: €9.09

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

This is an I2C DAC module that provides 0-25mA current. It provides a more accurate 4-20mA current output after calibration.

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: DFRobot Gravity I2C 4-20mA DAC Module - Digital to Analog Current Converter , DFROBOT-DFR0972 , Signal Generators and DACs

General
Brand	DFRobot
Manufacturer model/SKU	DFR0972
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	125
General physical appearance
Main color	Black
Weight [g]	8
Dimension X [mm]	36
Dimension Y [mm]	32
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.1
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	18 (via screw terminals) 2.7 (via JST-PH connector) (both must be connected)
Maximum supply voltage [V DC]	24 (via screw terminals) 5.5 (via JST-PH connector) (both must be connected)
Minimum IO-pin input voltage [V]	2.7
Maximum IO-pin input voltage [V]	5.5
IO-pin output voltage [V]	Equal to supply voltage (voltage on JST-PH connector (VCC))
Communication
Hardware interface(s)	I2C DAC
DAC chip	GP8302
DAC type	General purpose
Maximum available analog output pins (DAC)	1
DAC resolution [bit]	12
Default I2C address	0x58
Adjustable I2C address	No
Built-in pull-up resistor(s) [kΩ]	4.7
Connectors
Power supply connector(s)	Screw terminal JST-PH (compatible) male
IO-connector(s)	JST-PH (compatible) male
Measure pin connector(s)	Screw terminal
Package contents
Package contents	1x Gravity I2C 4-20mA DAC Module 1x JST-PH female to DuPont female cable 4p
