Name: DFRobot Gravity GP8512 DAC Module - 1 Channel - 15bit - I2C - 0-2.5V/VCC - DFROBOT-DFR1035
Brand: DFRobot
SKU: 005933
Price: 10 EUR
Availability: InStock

DFRobot Gravity GP8512 DAC Module - 1 Channel - 15bit - I2C - 0-2.5V/VCC

Availability: Directly available from warehouse in Eindhoven
SKU: 005933

Based on 0 review(s) - Write a review

€10.00

Ex Tax: €8.26

Qty

Add to Cart

Add to wishlist

Only 9 pieces in stock

Description
Reviews

This DAC module from DFRobot can output an analog voltage between 0-2.5V or between 0V and the supply voltage (adjustable via the built-in switch).

See the following page for more information: GitHub

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Gravity GP8512 DAC Module - 1 Channel - 15bit - I2C - 0-2.5V/VCC

Average Rating:

This product has 0 review(s) in total.

Tags: DFRobot Gravity GP8512 DAC Module - 1 Channel - 15bit - I2C - 0-2.5V/VCC , DFROBOT-DFR1035 , Signal Generators and DACs

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	DFR1035
General physical appearance
Main color	Black
Weight [g]	6

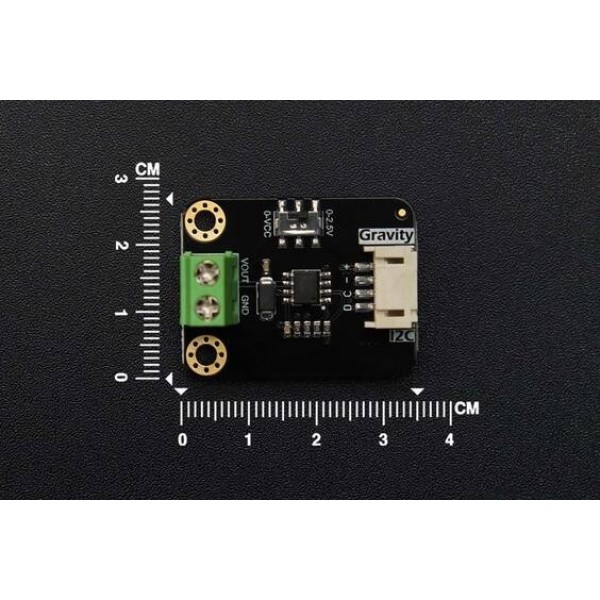

Dimension X [mm]	35
Dimension Y [mm]	27
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.1
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	I2C DAC
DAC chip	GP8512
DAC type	General purpose
Maximum available analog output pins (DAC)	1
DAC resolution [bit]	15
Maximum DAC output voltage [V]	5 (if powered by 5V)
Default I2C address	0x58
Adjustable I2C address	No
Built-in pull-up resistor(s) [kΩ]	4.7
Connectors
Power supply connector(s)	JST-PH (compatible) male
IO-connector(s)	Screw terminal JST-PH (compatible) male
Package contents

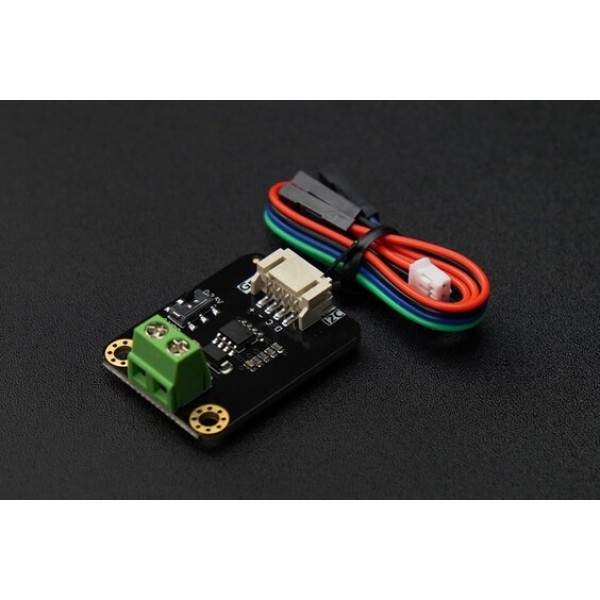

Package contents	1x JST-PH to DuPont female cable 1x DAC module
