Name: DFRobot Gravity GP8501 DAC Module - 2 Channels - 8bit - PWM - 0-2.5V/VCC - DFROBOT-DFR1037
Brand: DFRobot
SKU: 005936
Price: 9.5 EUR
Availability: InStock

DFRobot Gravity GP8501 DAC Module - 2 Channels - 8bit - PWM - 0-2.5V/VCC

Availability: Directly available from warehouse in Eindhoven
SKU: 005936

Based on 0 review(s) - Write a review

€9.50

Ex Tax: €7.85

Qty

Add to Cart

Add to wishlist

Only 8 pieces in stock

Description
Reviews

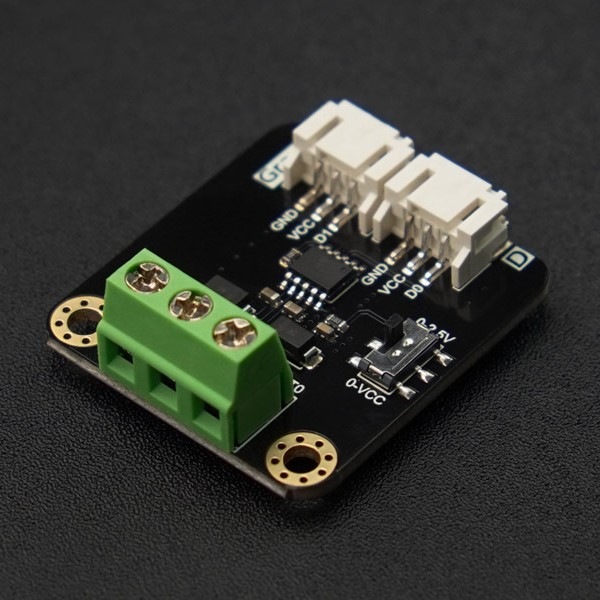

This DAC module from DFRobot can output two analog voltages between 0-2.5V or between 0V and the supply voltage (adjustable via the built-in switch).

See the following page for more information: GitHub

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Gravity GP8501 DAC Module - 2 Channels - 8bit - PWM - 0-2.5V/VCC

Average Rating:

This product has 0 review(s) in total.

Tags: DFRobot Gravity GP8501 DAC Module - 2 Channels - 8bit - PWM - 0-2.5V/VCC , DFROBOT-DFR1037 , Signal Generators and DACs

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	DFR1037

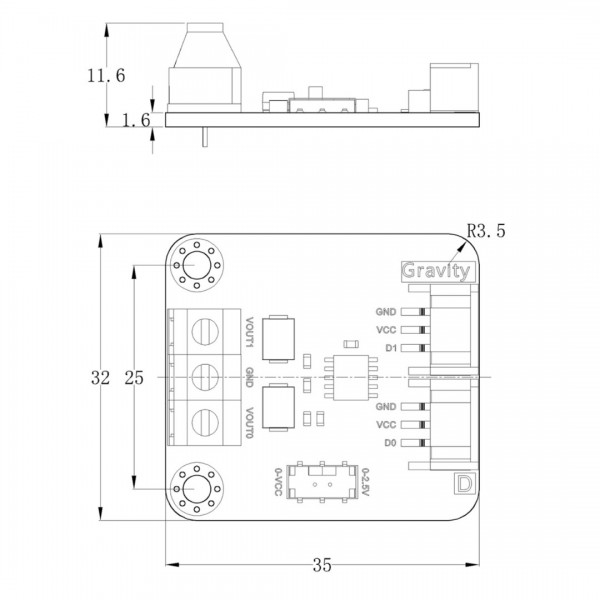

General physical appearance
Main color	Black
Weight [g]	8
Dimension X [mm]	35
Dimension Y [mm]	32
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.1
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
Communication
Hardware interface(s)	PWM DAC
DAC chip	GP8501
DAC type	General purpose
Maximum available analog output pins (DAC)	2
DAC resolution [bit]	8
Maximum DAC output voltage [V]	5 (if powered by 5V)
Connectors
Power supply connector(s)	JST-PH (compatible) male
IO-connector(s)	Screw terminal JST-PH (compatible) male
Package contents
Package contents	1x JST-PH to DuPont female cable 1x DAC module
