Name: DFRobot Gravity GP8413 DAC Module - 2 Channels - 15bit - I2C - 0-5V/10V - DFROBOT-DFR1073
Brand: DFRobot
SKU: 005934
Price: 13.5 EUR
Availability: InStock

DFRobot Gravity GP8413 DAC Module - 2 Channels - 15bit - I2C - 0-5V/10V

Availability: Directly available from warehouse in Eindhoven
SKU: 005934

Based on 0 review(s) - Write a review

€13.50

Ex Tax: €11.16

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

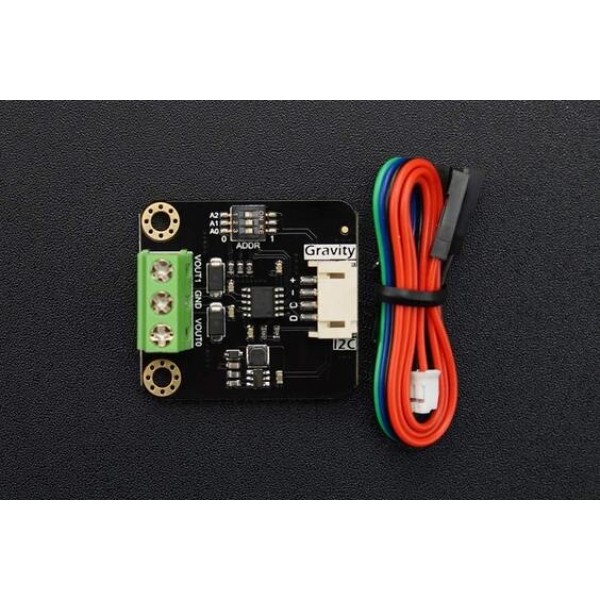

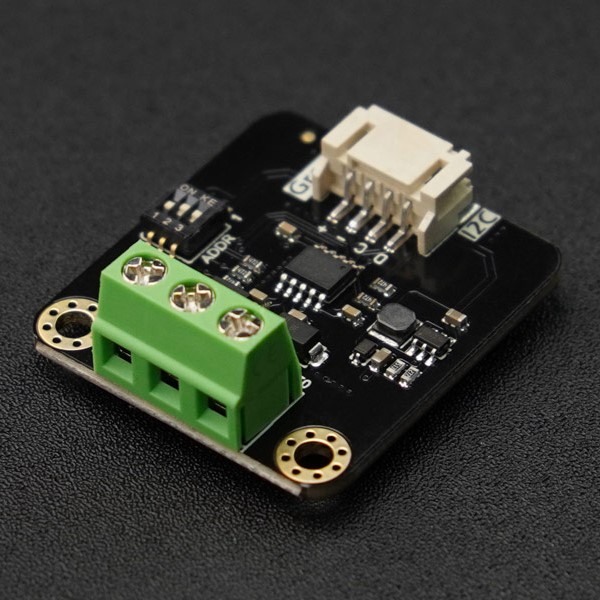

This DAC module from DFRobot can output two analog voltages between 0-5V or between 0-10V (adjustable via I2C).

See the following page for more information: GitHub

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Gravity GP8413 DAC Module - 2 Channels - 15bit - I2C - 0-5V/10V

Average Rating:

This product has 0 review(s) in total.

Tags: DFRobot Gravity GP8413 DAC Module - 2 Channels - 15bit - I2C - 0-5V/10V , DFROBOT-DFR1073 , Signal Generators and DACs

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	DFR1073
General physical appearance
Main color	Black
Weight [g]	8

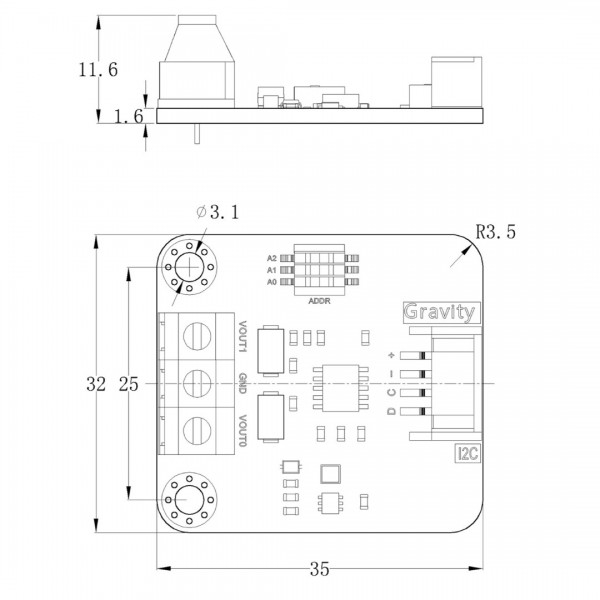

Dimension X [mm]	35
Dimension Y [mm]	32
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.1
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	I2C DAC
DAC chip	GP8413
DAC type	General purpose
Maximum available analog output pins (DAC)	2
DAC resolution [bit]	15
Maximum DAC output voltage [V]	10
Default I2C address	0x58
Adjustable I2C address	Yes
Built-in pull-up resistor(s) [kΩ]	4.7
Connectors
Power supply connector(s)	JST-PH (compatible) male
IO-connector(s)	Screw terminal JST-PH (compatible) male
Package contents
Package contents	1x JST-PH to DuPont female cable 1x DAC module
