DFRobot Gravity GP8101S DAC Module - 1 Channel - 8bit - PWM - 0-5/10V

Based on 0 review(s) - Write a review

€9.50

Ex Tax: €7.85

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

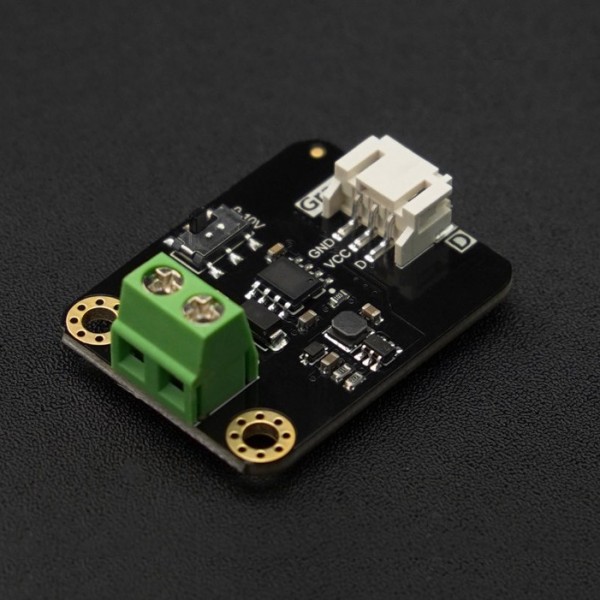

This DAC module from DFRobot can output an analog voltage between 0-2.5V or between 0-10V (adjustable via the built-in switch).

See the following page for more information: GitHub

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: DFRobot Gravity GP8101S DAC Module - 1 Channel - 8bit - PWM - 0-5/10V , DFROBOT-DFR1036 , Signal Generators and DACs

General
Brand	DFRobot
Manufacturer model/SKU	DFR1036
General physical appearance
Main color	Black
Weight [g]	6
Dimension X [mm]	35
Dimension Y [mm]	27
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.1
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
Communication
Hardware interface(s)	PWM DAC
DAC chip	GP8101S
DAC type	General purpose
Maximum available analog output pins (DAC)	1
DAC resolution [bit]	8
Maximum DAC output voltage [V]	10
Connectors
Power supply connector(s)	JST-PH (compatible) male
IO-connector(s)	Screw terminal JST-PH (compatible) male
Package contents
Package contents	1x JST-PH to DuPont female cable 1x DAC module
