Waveshare CP2102 TTL USB to Serial Converter - USB-A - 3.3V

Waveshare CP2102 TTL USB to Serial Converter - USB-A - 3.3V
Waveshare CP2102 TTL USB to Serial Converter - USB-A - 3.3V
Waveshare CP2102 TTL USB to Serial Converter - USB-A - 3.3V
Waveshare CP2102 TTL USB to Serial Converter - USB-A - 3.3V
Waveshare CP2102 TTL USB to Serial Converter - USB-A - 3.3V
Waveshare CP2102 TTL USB to Serial Converter - USB-A - 3.3V
Waveshare CP2102 TTL USB to Serial Converter - USB-A - 3.3V
Waveshare CP2102 TTL USB to Serial Converter - USB-A - 3.3V
Waveshare CP2102 TTL USB to Serial Converter - USB-A - 3.3V
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004851
€5.50
Ex Tax: €4.55

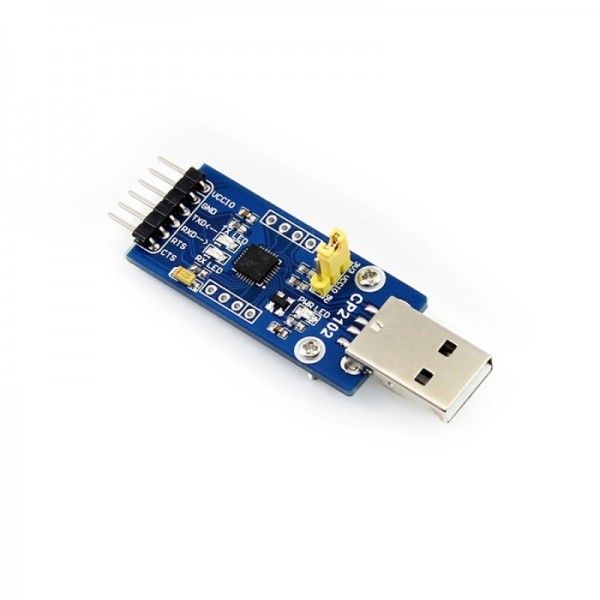

A USB to serial converter. The VCCIO pin on this module is depending on the jumper connected to the USB voltage or to the internal 3.3V output of the CP2101.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare CP2102 TTL USB to Serial Converter - USB-A - 3.3V

This product has 0 review(s) in total.

Specifications

General
Brand Waveshare
Manufacturer model/SKU 7605
General physical appearance
Main color Blue
Weight [g] 7

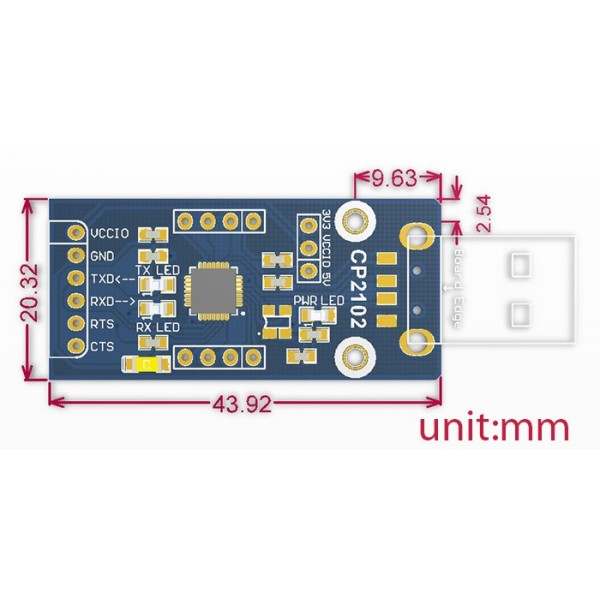

Dimension X [mm] 44
Dimension Y [mm] 21
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2.1
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
USB CDC
USB to serial converter CP2102
Connectors
Power supply connector(s) USB-A male
IO-connector(s) Pin header male (2.54mm)
Through hole solder pin(s) (2.54mm)
USB-A male
Package contents
Package contents 1x USB to serial converter
1x Male pin header set
1x Female pin header set
1x Jumper
1x DuPont female-female cable 6p
2x Mounting bolt
2x Nut
