Name: Fischl.de I2C-MP-USB - USB to I2C Interface - FISCHL-I2C-MP-USB
SKU: 005290
Price: 27 EUR
Availability: InStock

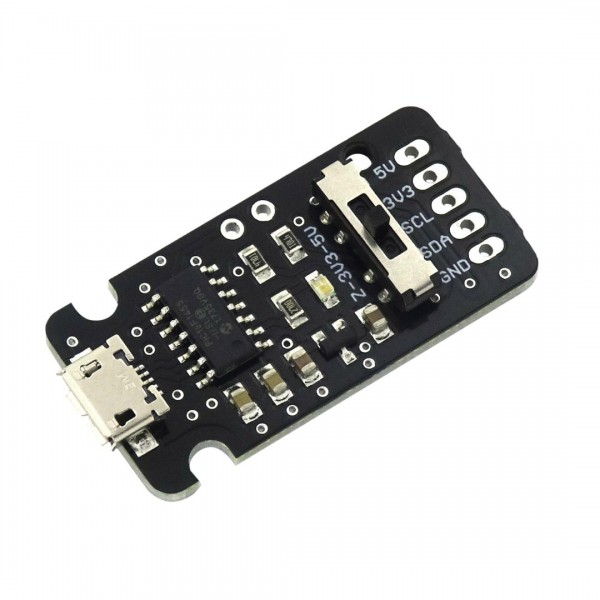

Fischl.de I2C-MP-USB - USB to I2C Interface

Based on 0 review(s) - Write a review

€27.00

Ex Tax: €22.31

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

I2C-MP-USB is a interface to connect I2C devices via USB to a host system. It aims to easily control I2C slaves with highly portable code.

See the following page for more information: Manufacturer page

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: Fischl.de I2C-MP-USB - USB to I2C Interface , FISCHL-I2C-MP-USB , USB

General
Brand	Fischl.de
Manufacturer model/SKU	I2C-MP-USB
General physical appearance
Main color	Black
Weight [g]	3
Dimension X [mm]	36
Dimension Y [mm]	18
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Adjustable 3.3V or 5V Switchable: 5V, 3.3V and off/Hi-Z
Communication
Hardware interface(s)	I2C USB CDC
Built-in pull-up resistor(s) [kΩ]	4.7 (can be bypassed with switch)
Connectors
Power supply connector(s)	Micro USB female
IO-connector(s)	Through hole solder pin(s) (2.54mm) Micro USB female
Package contents
Package contents	1x I2C-MP-USB
