Waveshare Industrial Bi-directional USB to RS485 Converter - FT232RL

2-4 Weeks

Waveshare Industrial Bi-directional USB to RS485 Converter - FT232RL

Based on 0 review(s) - Write a review

€12.00

Ex Tax: €9.92

10 or more €11.75

20 or more €11.50

50 or more €11.25

100 or more €11.00

Terms

Yes, I know that this product is intended for business use only and is sold as an industrial product.

Qty

Add to Cart

Add to wishlist

Not in stock

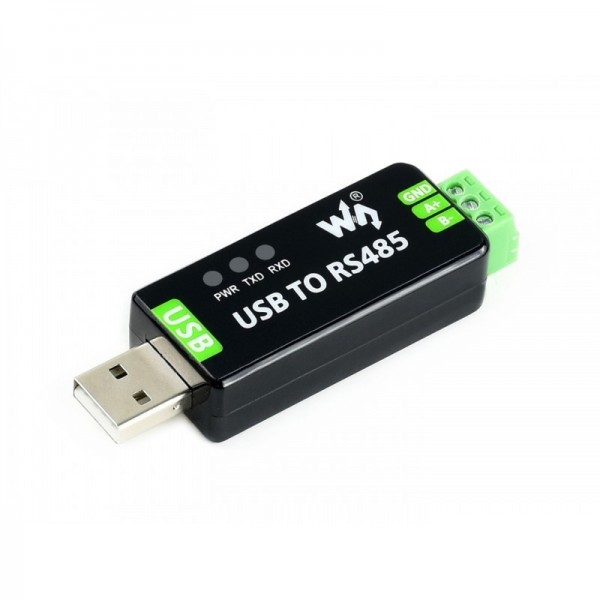

A USB to RS485 adapter.

Note: This product may only be used for business research and development or industrial applications.

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: Waveshare Industrial Bi-directional USB to RS485 Converter - FT232RL , WS-17286 , RS485

General
Brand	Waveshare
Manufacturer model/SKU	17286
Minimum operating humidity [%R.H.]	5
Maximum operating humidity [%R.H.]	95
Minimum operating temperature [°C]	-15
Maximum operating temperature [°C]	70
Features	Enclosure
General physical appearance
Main color	Black
Weight [g]	15

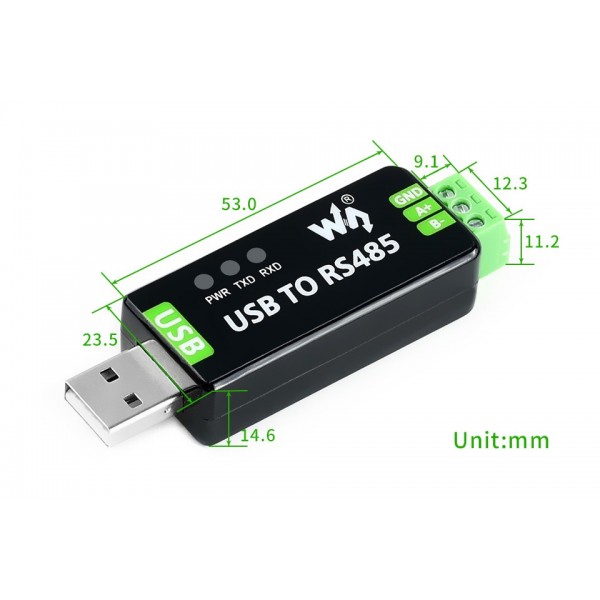

Dimension X [mm]	53
Dimension Y [mm]	24
Dimension Z [mm]	15
Form factor	USB stick Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Communication
Hardware interface(s)	RS485 USB CDC

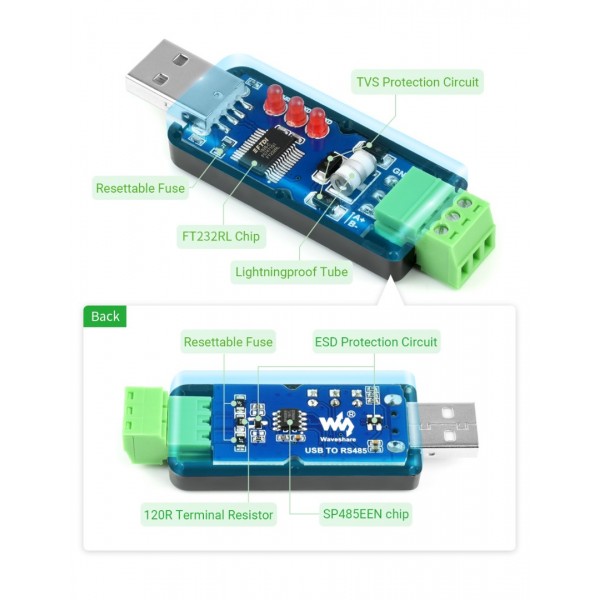

USB to serial converter	FT232RL
RS485 chip	SP485E
Connectors
Power supply connector(s)	USB-A male
IO-connector(s)	USB-A male Detachable block male (15EDG-3.81)
Package contents

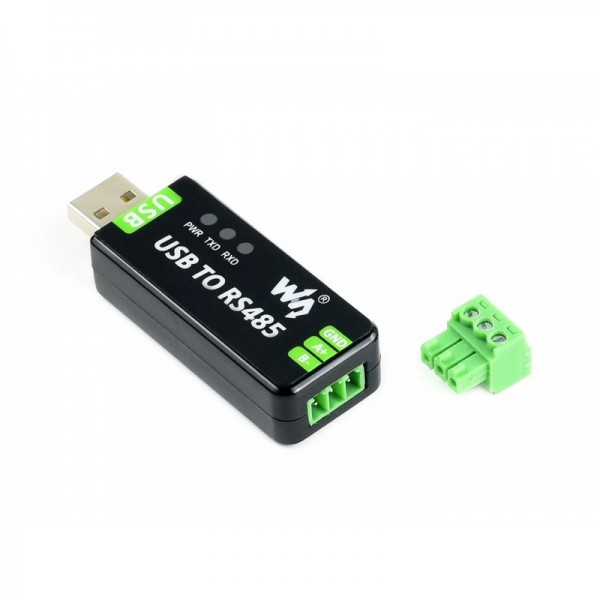

Package contents	1x USB to RS-485 converter 1x Detachable screw terminal block 1x USB-A extension cable
