Smart Panlee RS485 Module - for 7 inch Serial Screen

Smart Panlee RS485 Module - for 7 inch Serial Screen
Smart Panlee RS485 Module - for 7 inch Serial Screen
Smart Panlee RS485 Module - for 7 inch Serial Screen
Smart Panlee RS485 Module - for 7 inch Serial Screen
Smart Panlee RS485 Module - for 7 inch Serial Screen
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005483
€3.50
Ex Tax: €2.89

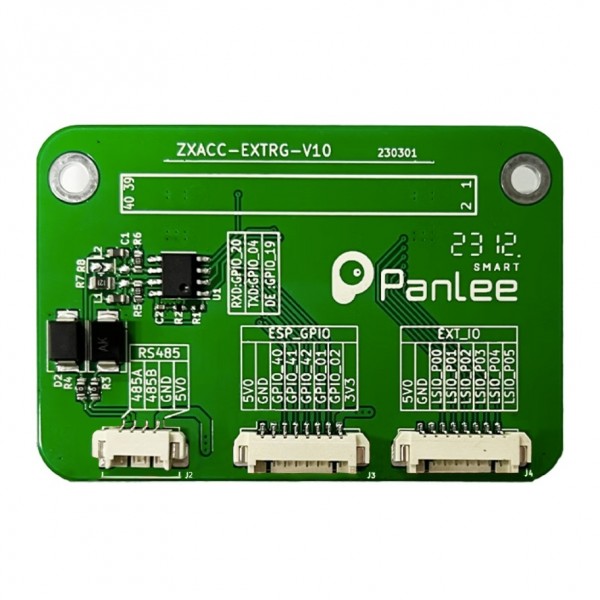

An RS485 adapter module that can be placed as a shield on the Smart Panlee 7 inch Serial Screen.

Note: No cables are included, they can be ordered separately here:

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Smart Panlee RS485 Module - for 7 inch Serial Screen

This product has 0 review(s) in total.

Specifications

General
Brand Smart Panlee
Manufacturer model/SKU ZXACC-EXTRG-V10
General physical appearance
Main color Green
Weight [g] 12
Dimension X [mm] 60
Dimension Y [mm] 40
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 3.2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 3.3
±5%
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) RS485
Isolated communication No
RS485 chip SP3485
Number of RS485 channels 1
Connectors
Power supply connector(s) Molex Picoblade (compatible) male
Pin header male (2.00mm)
IO-connector(s) Molex Picoblade (compatible) male
Pin header male (2.00mm)
Package contents
Package contents 1x RS485 module
