M5Stack ISO485 Unit - Isolated RS485 Module

M5Stack ISO485 Unit - Isolated RS485 Module
M5Stack ISO485 Unit - Isolated RS485 Module
M5Stack ISO485 Unit - Isolated RS485 Module
M5Stack ISO485 Unit - Isolated RS485 Module
M5Stack ISO485 Unit - Isolated RS485 Module
M5Stack ISO485 Unit - Isolated RS485 Module
M5Stack ISO485 Unit - Isolated RS485 Module
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003037
Based on 0 review(s) - Write a review
€12.00
Ex Tax: €9.92
10 or more €11.75
20 or more €11.50
50 or more €11.25
100 or more €11.00
Add to Cart
Add to wishlist

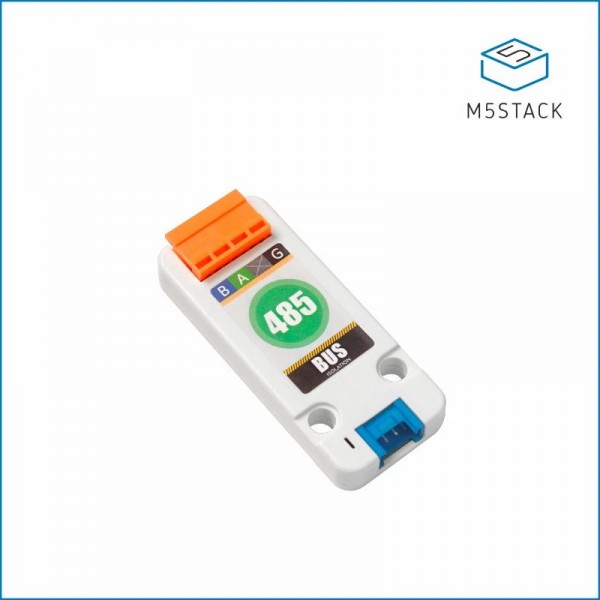

This is an Isolated RS485 module with a Grove connection for M5Stack. This module converts TTL level to RS485 level. The module works via UART communication.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack ISO485 Unit - Isolated RS485 Module

This product has 0 review(s) in total.

Tags: M5Stack , Unit , M5Stack ISO485 Unit - Isolated RS485 Module , 003037 , M5Stack , U094 , Enclosure , RS485

Specifications

General
Brand M5Stack
Manufacturer model/SKU U094
Features Enclosure
General physical appearance
Main color White
Weight [g] 18
Dimension X [mm] 56
Dimension Y [mm] 24
Dimension Z [mm] 8
Mounting options LEGO (compatible) holes
Form factor M5Stack Unit
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) RS485
Isolated communication Yes

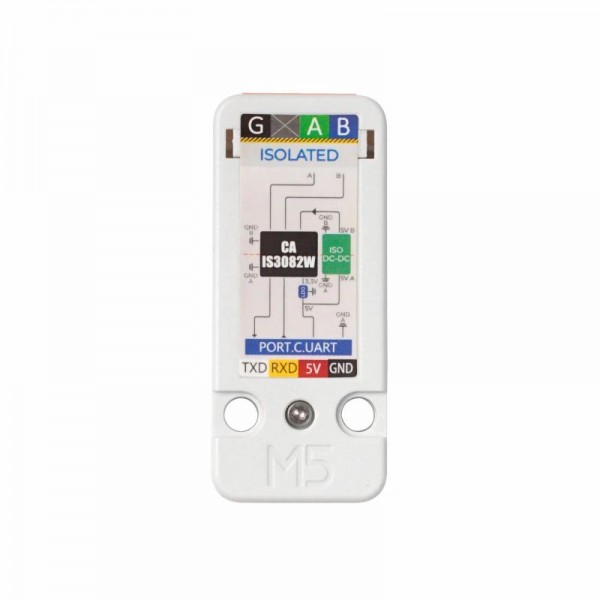

RS485 chip CA-IS3082W
Number of RS485 channels 1
RS485 120Ω termination resistor No
(separate resistor included)
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Detachable block male (HT3.96)
Enclosure
Material Plastic (unknown material)

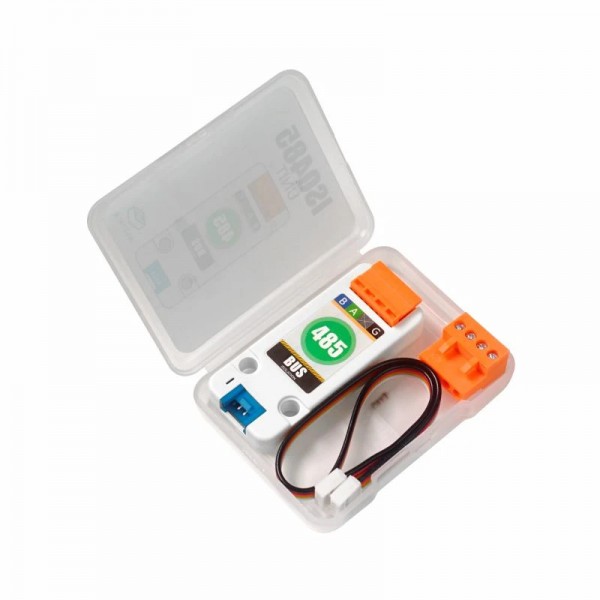

Package contents
Package contents 1x ISO485 Unit
1x HT3.96 4P Plug
1x 120Ω resistor
1x Grove cable (20cm)
