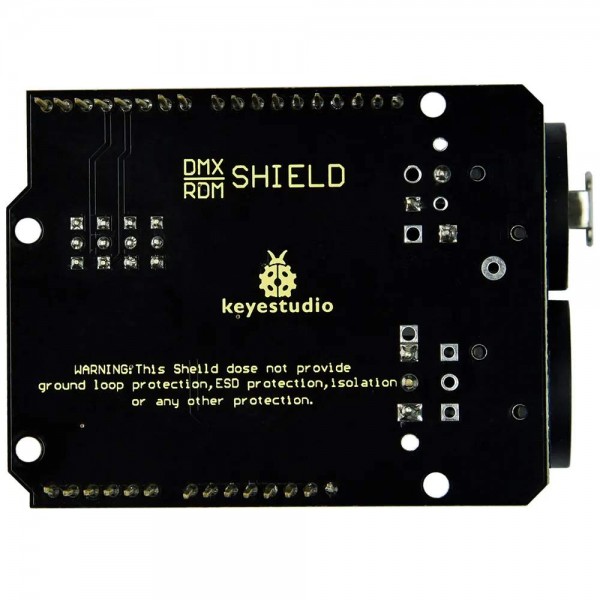

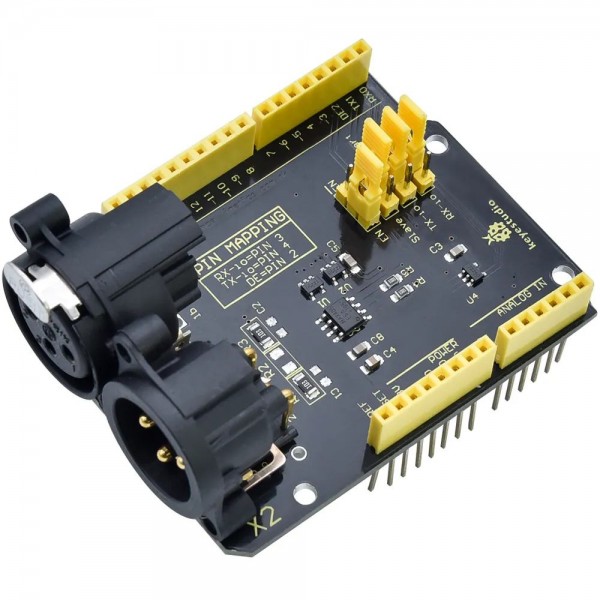

Keyestudio DMX RDM Shield - for Arduino
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005951
€9.75
Ex Tax: €8.06
Your shopping cart is empty!
See the following page for more information: Wiki
| General | |
| Brand | Keyestudio |
| Manufacturer model/SKU | KS0529 |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 32 |
| Dimension X [mm] | 69 |
| Dimension Y [mm] | 54 |
| Mounting options | Pin headers Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 3.1 |
| Form factor | Module (general) Uno layout/shield |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 5 |
| Maximum IO-pin input voltage [V] | 5 |
| IO-pin output voltage [V] | 5 |
| Communication | |
| Hardware interface(s) | UART RS485 |
| Isolated communication | No |
| RS485 chip | MAX485 |
| Number of RS485 channels | 1 |
| Protocol | DMX-512 |
| Connectors | |
| Power supply connector(s) | Pin header male (2.54mm) Pin header female (2.54mm) |
| IO-connector(s) | XLR (compatible) male XLR (compatible) female Pin header male (2.54mm) Pin header female (2.54mm) |
| Package contents | |
| Package contents | 1x DMX Shield 4x Jumper |
