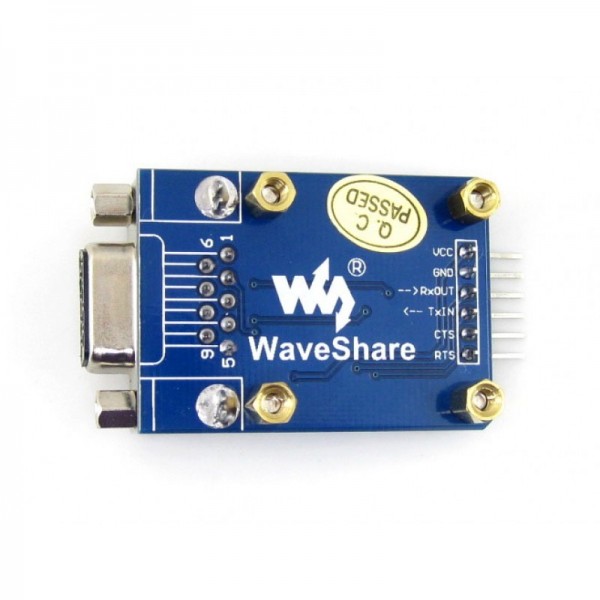

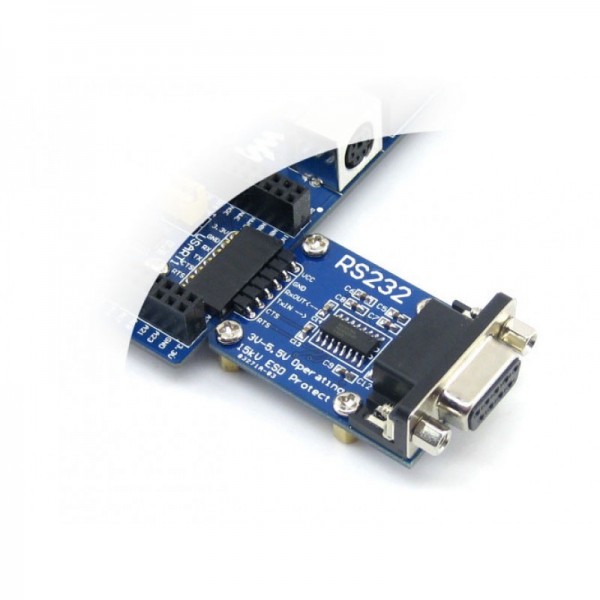

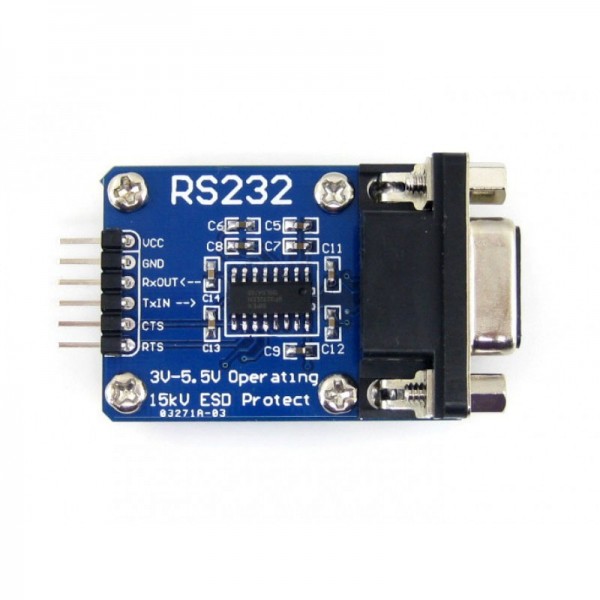

Waveshare RS232 naar UART Module
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004816
€5.00
Ex Tax: €4.13
Your shopping cart is empty!
A module from Waveshare to connect an RS232 cable to your embedded system that has a UART connection.
See the following page for more information: Wiki
| General | |
| Brand | Waveshare |
| Manufacturer model/SKU | 3965 |
| General physical appearance | |
| Main color | Blue |
| Weight [g] | 16 |
| Dimension X [mm] | 44 |
| Dimension Y [mm] | 32 |
| Mounting options | Mounting hole(s) |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3 |
| Maximum supply voltage [V DC] | 5.5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 5.5 |
| IO-pin output voltage [V] | Equal to supply voltage |
| Communication | |
| Hardware interface(s) | UART RS232 |
| Isolated communication | No |
| RS232 chip | SP3232E |
| Number of RS232 channels | 1 |
| Connectors | |
| Power supply connector(s) | Pin header male (2.54mm) |
| IO-connector(s) | DB9 female Pin header male (2.54mm) |
| Package contents | |
| Package contents | 1x RS232 Board 1x DuPont connection cable 6p 4x Spacer 4x Bolt |
