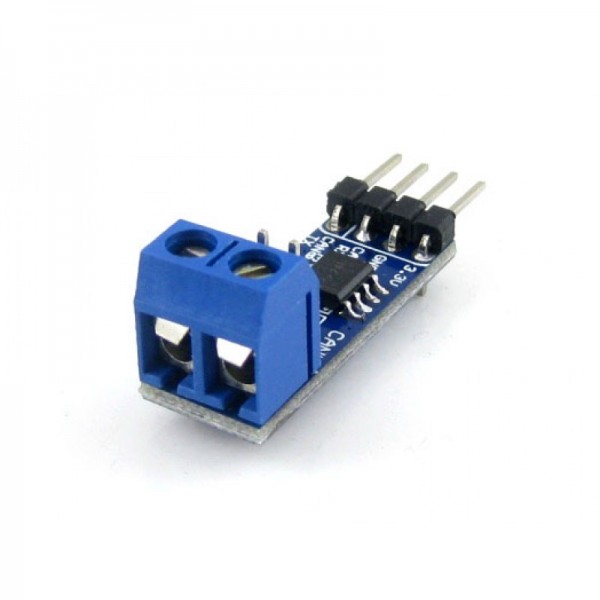

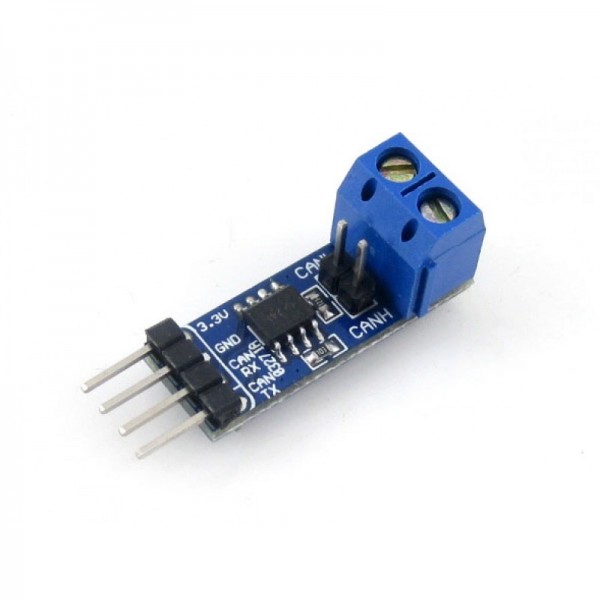

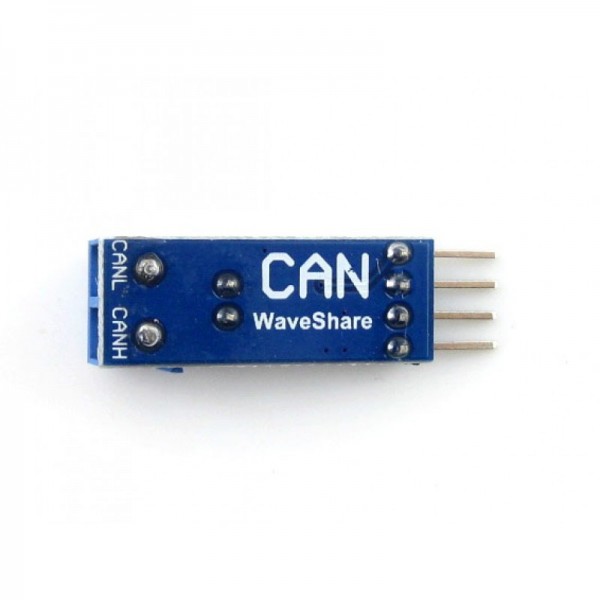

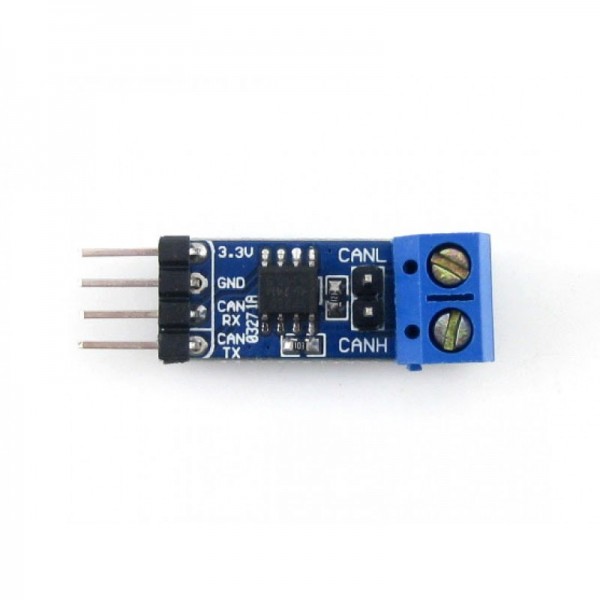

Waveshare SN65HVD230 CAN Tranceiver Module

Availability: Directly available from warehouse in Eindhoven
SKU: 004835

Based on 0 review(s) - Write a review

€4.75

Ex Tax: €3.93

Qty

Add to Cart

Add to wishlist

Only 5 pieces in stock

Description
Reviews

With this module you can provide certain microcontrollers with a CAN bus interface. For example, ESP32 based boards have a built-in CAN bus (TWAI) controller.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare SN65HVD230 CAN Tranceiver Module

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare SN65HVD230 CAN Tranceiver Module , WS-3945 , CAN Bus

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	3945
General physical appearance
Main color	Blue
Weight [g]	3
Dimension X [mm]	27
Dimension Y [mm]	11
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	CAN
Isolated communication	No
CAN bus tranceiver	SN65HVD230
Number of CAN bus channels	1
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Screw terminal Pin header male (2.54mm)
Package contents
Package contents	1x CAN bus tranceiver module
