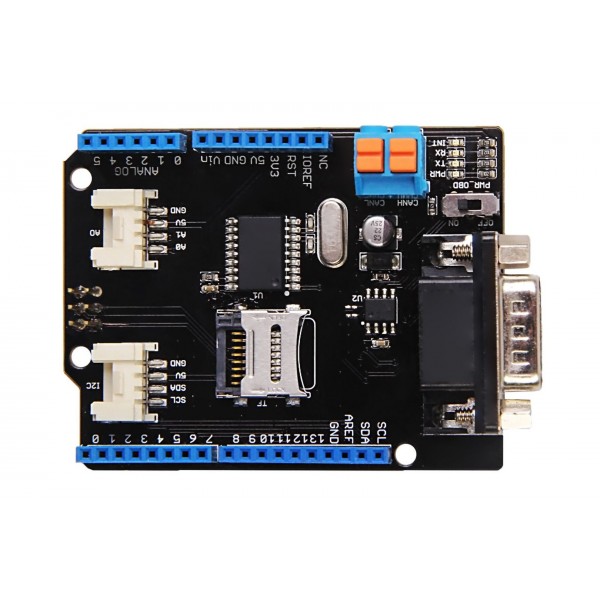

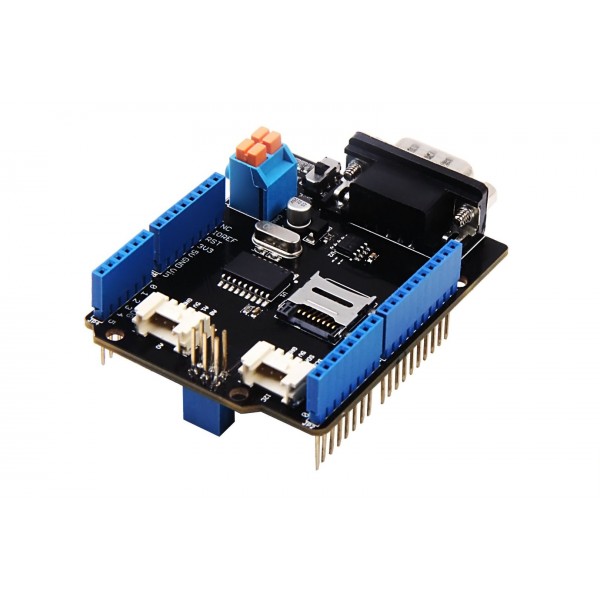

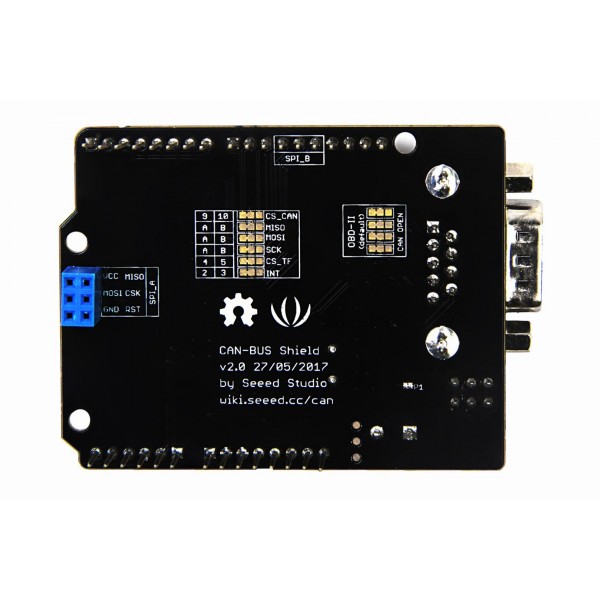

Seeed Studio CAN Bus Shield V2.0 - MCP2515 and MCP2551

With this CAN bus shield from Seeed Studio you can connect your Arduino Uno (or a compatible variant) to a CAN bus, for example that of a car.

Specifications:

• CAN Bus:
  • Tranceiver chip: MCP2551
  • Controller chip: MCP2515
  • Maximum transfer rate: 1Mb/s
  • Bus version: V2.0B
  • Identifier length: 11bit or 29bit
  • Communication: SPI
• Connectors:
  • 1x DB9 (ODB-II standard)
  • 1x Quick connect terminal (to easily connect CAN_H and CAN_L)
  • 2x Grove connector (I2C and GPIO)
• Built-in microSD card adapter
• Form factor: Uno Shield

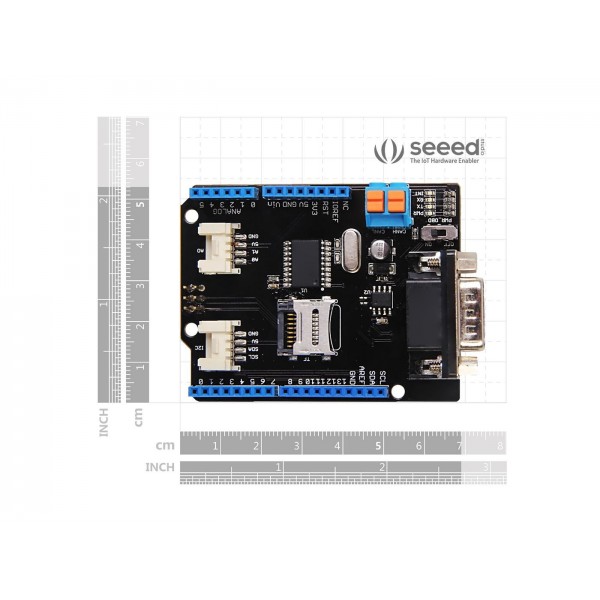

• Dimensions: See images

Package contents:

• 1x Seeed Studio CAN Bus Shield V2.0

See the following page for more information: CAN Bus Shield V2.
