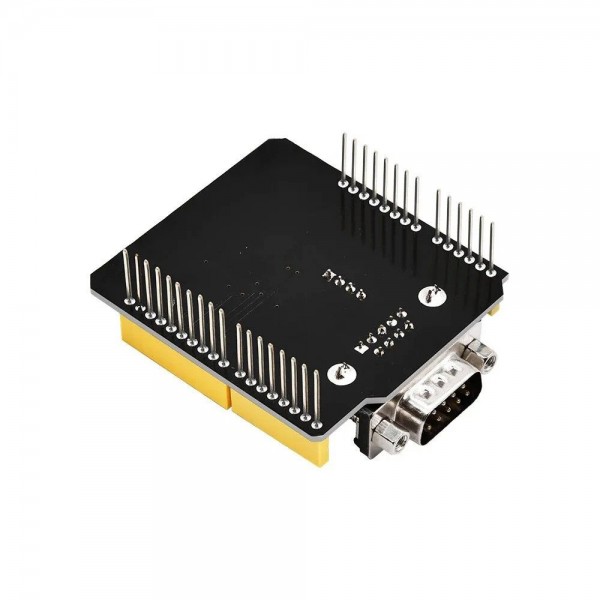

Keyestudio CAN-Bus Shield - for Arduino
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005799
€8.00
Ex Tax: €6.61
Your shopping cart is empty!

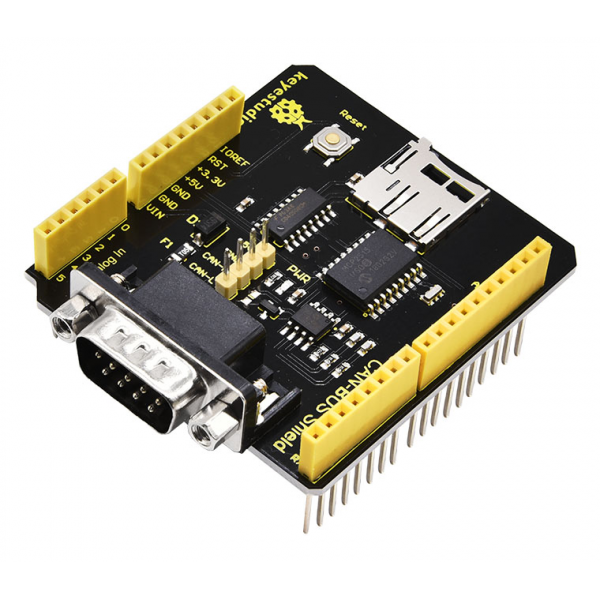

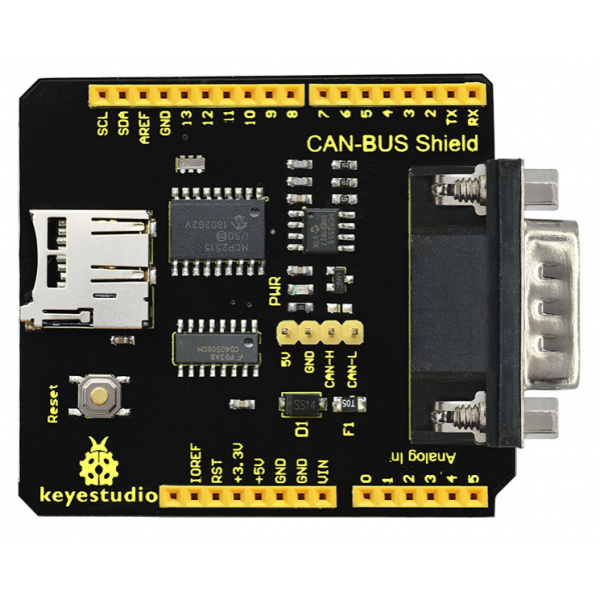

A CAN-BUS Shield from Keyestudio for the Arduino Uno (or compatible board).
See the following page for more information: Wiki
| General | |
| Brand | Keyestudio |
| Manufacturer model/SKU | KS0411 |
| Features | SD-card adapter |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 25 |
| Dimension X [mm] | 60 |
| Dimension Y [mm] | 53 |
| Mounting options | Pin headers |
| Form factor | Module (general) Uno layout/shield |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 5 |
| Maximum IO-pin input voltage [V] | 5 |
| IO-pin output voltage [V] | 5 |
| Communication | |
| Hardware interface(s) | CAN SPI |
| Isolated communication | No |
| CAN bus controller | MCP2515 |
| CAN bus tranceiver | MCP2551 |
| Number of CAN bus channels | 1 |
| Supported SD card size | Micro SD |
| Connectors | |
| Power supply connector(s) | Pin header male (2.54mm) Pin header female (2.54mm) |
| IO-connector(s) | DB9 male Pin header male (2.54mm) Pin header female (2.54mm) |
| Package contents | |
| Package contents | 1x CAN-BUS Shield |
