Name: DFRobot Gravity: CAN to TTL Communication Module with SLCAN Protocol - UART - USB - DFROBOT-TEL0150
Brand: DFRobot
SKU: 005521
Price: 20 EUR
Availability: InStock

DFRobot Gravity: CAN to TTL Communication Module with SLCAN Protocol - UART - USB

Availability: Directly available from warehouse in Eindhoven
SKU: 005521

Based on 0 review(s) - Write a review

€20.00

Ex Tax: €16.53

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

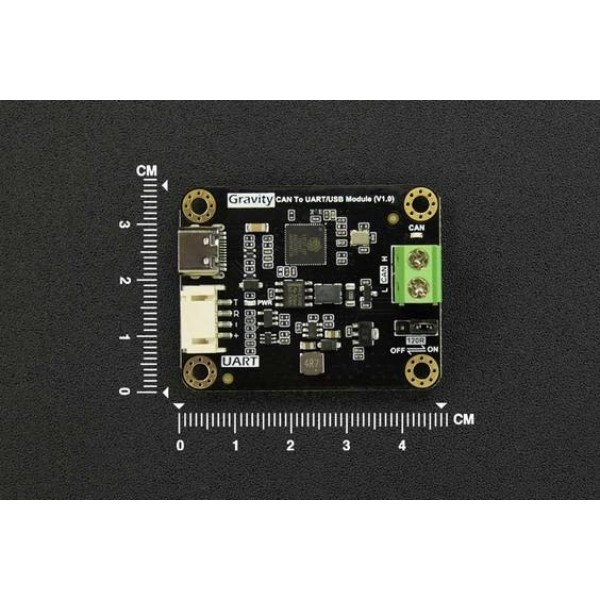

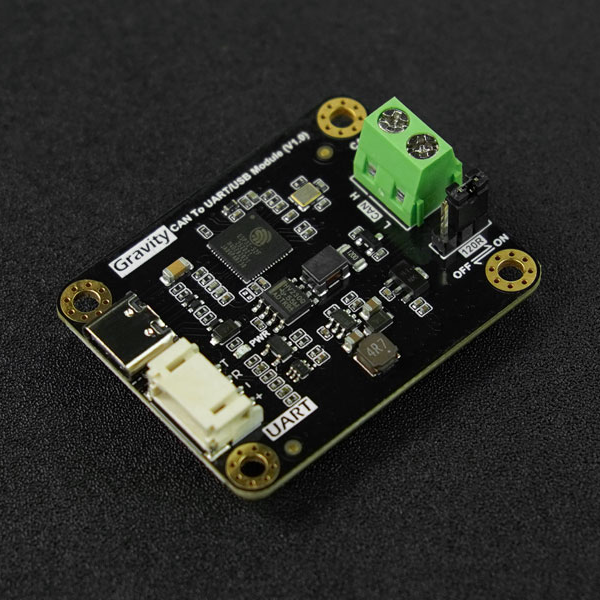

A CAN to UART and USB adapter module from DFRobot. This module supports CAN 2.0 and SLCAN commands with adjustable baud rate.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Gravity: CAN to TTL Communication Module with SLCAN Protocol - UART - USB

Average Rating:

This product has 0 review(s) in total.

Tags: DFRobot Gravity: CAN to TTL Communication Module with SLCAN Protocol - UART - USB , DFROBOT-TEL0150 , CAN Bus

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	TEL0150

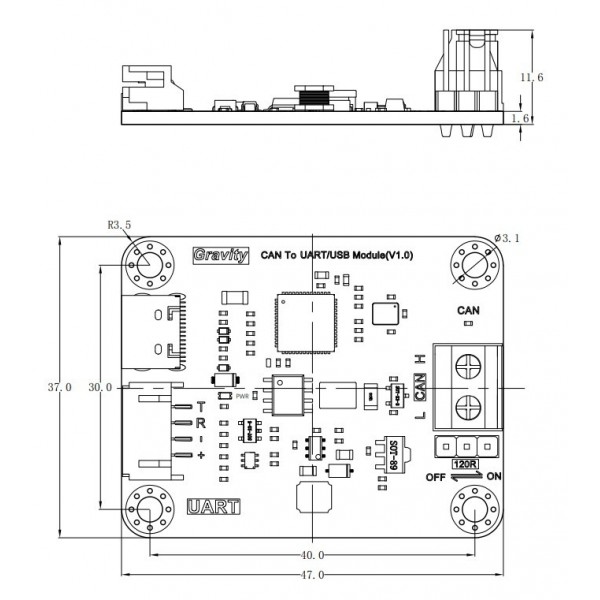

General physical appearance
Main color	Black
Weight [g]	11
Dimension X [mm]	47
Dimension Y [mm]	37
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.1
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	UART USB CDC CAN
Isolated communication	No
Default baudrate	115200
CAN bus controller	ESP32-S2
CAN bus tranceiver	SN65HVD230
Number of CAN bus channels	1
Protocol	SLCAN
Connectors
Power supply connector(s)	JST-PH (compatible) male USB-C female
IO-connector(s)	Screw terminal JST-PH (compatible) male USB-C female

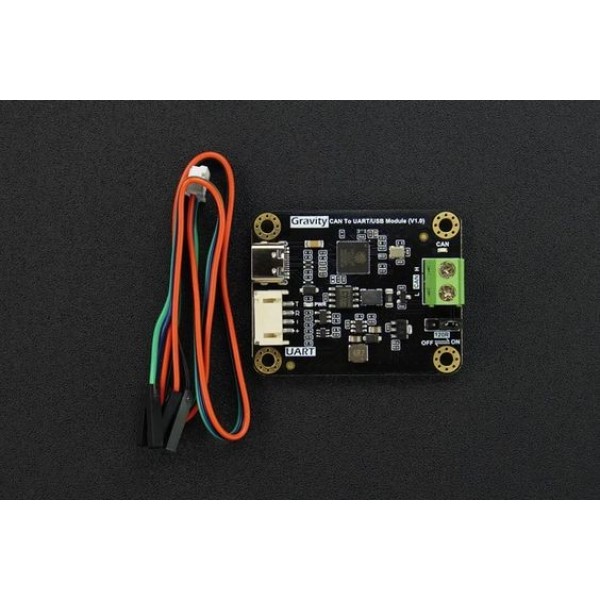

Package contents
Package contents	1x CAN to UART module 1x 4p JST-PH to DuPont female cable
