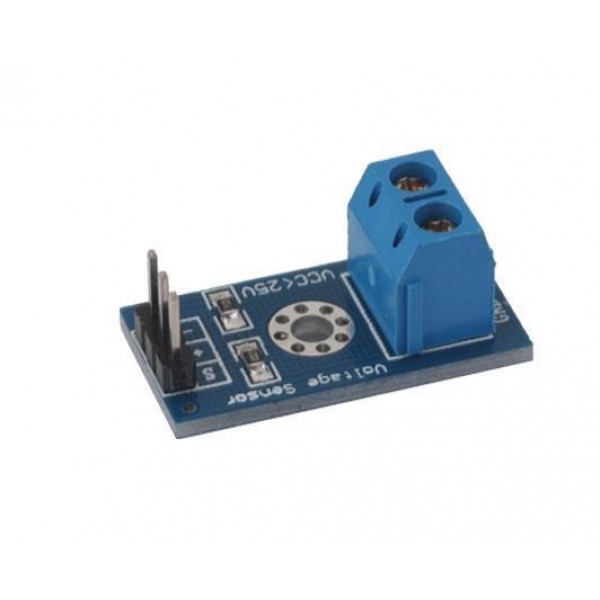

Voltage divider Module 0-25V

With this module you can easily measure a voltage up to 25V DC with your Arduino.
The module has a voltage divider with 1% accurate SMD resistors.
This voltage divider ensures that the voltage becomes 5 times smaller. (25V thus becomes 5V and 5V becomes 1V)

The pin descriptions are listed on the PCB:

• VCC: positive/plus of voltage to be measured
• GND: ground/min of voltage to be measured
• S: Voltage output
• +: not connected (does not need to be connected)
• -: ground/min of Arduino (or other system)
