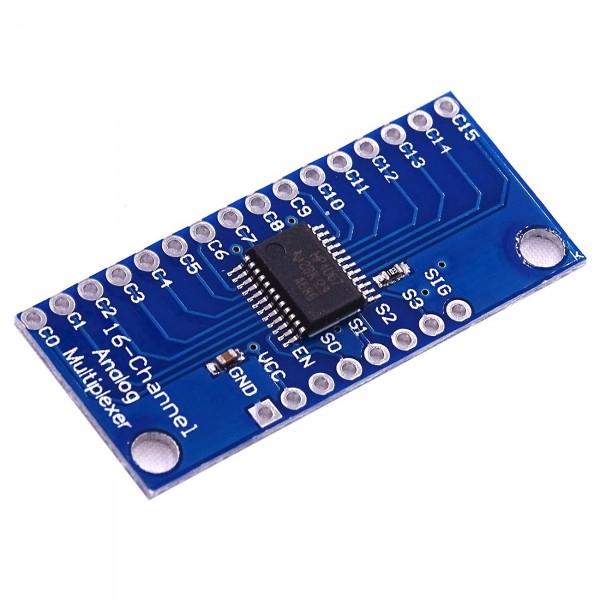

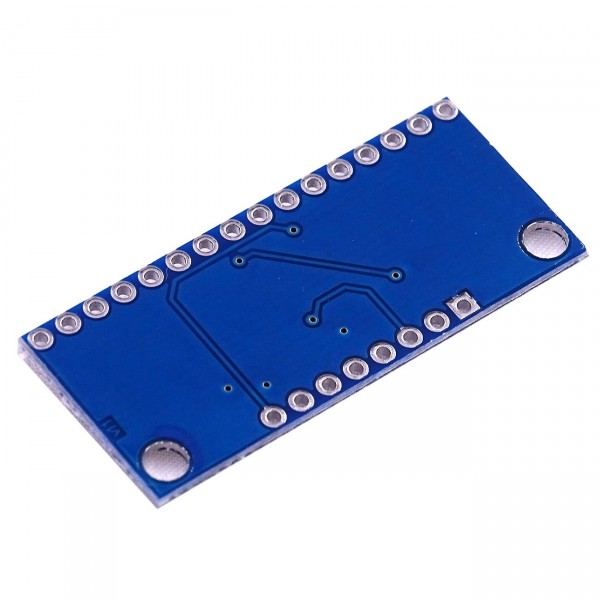

HC4067 16-channel Analog Multiplexer

With this module you can determine with four addresspins(S0-S3) which of the 16 pins (C0-C15) is ultimately connected to the signal (SIG) pin. This way, with four digital pins and an analog pin, a total of 16 analog pins can be measured by alternating the measurements.

Specifications:

• Voltage: 2 - 6V DC
• Analog inputs: 16x (C0 - C16 pins)
• Analog output: 1x (SIG pin)
• Addrespins: 4x (S0 - S3)

For more information, see the datasheet: CD74HC4067 datasheet

Note: This module is only suitable for putting through analog voltages and measuring analog voltages. It is not suitable as analog driver.
