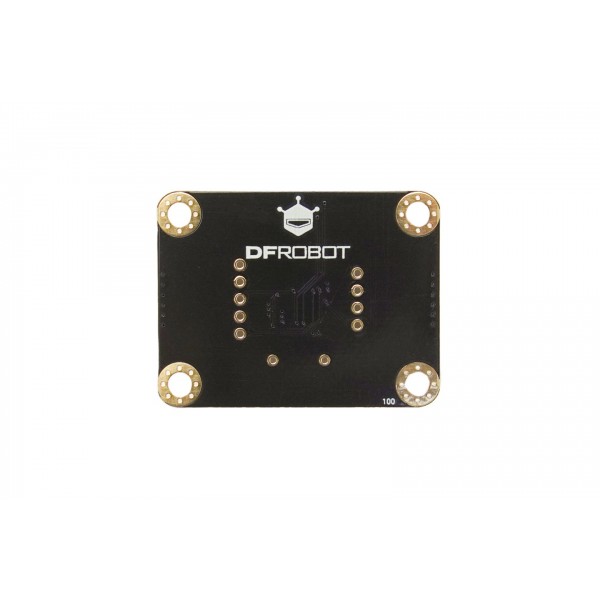

DFRobot Gravity I2C Address Shifter - LTC4316

DFRobot Gravity I2C Address Shifter - LTC4316
DFRobot Gravity I2C Address Shifter - LTC4316
DFRobot Gravity I2C Address Shifter - LTC4316
DFRobot Gravity I2C Address Shifter - LTC4316
DFRobot Gravity I2C Address Shifter - LTC4316
DFRobot Gravity I2C Address Shifter - LTC4316
DFRobot Gravity I2C Address Shifter - LTC4316
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007454
Based on 0 review(s) - Write a review
€8.00
Ex Tax: €6.61
Add to Cart
Add to wishlist

This adress shifter from DFRobot can be used to change a module's I2C address. After placing this adres shifter between a microcontroller and an I2C sensor, the sensor will be reachable with a different address. This is usefull to, for example, use multiple identical sensors on the same bus simultaneously.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Gravity I2C Address Shifter - LTC4316

This product has 0 review(s) in total.

Tags: Communication and Signals , IO Converters , DFRobot Gravity I2C Address Shifter - LTC4316 , 007454 , DFRobot , DFR1193 , I2C

Specifications

General
Brand DFRobot
Manufacturer model/SKU DFR1193
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 70
General physical appearance
Main color Black
Weight [g] 5
Dimension X [mm] 42
Dimension Y [mm] 32
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3.2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 2.25
Maximum supply voltage [V DC] 5.5
Minimum IO-pin input voltage [V] 2.25
Maximum IO-pin input voltage [V] 5.5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) I2C
Adjustable I2C address Yes
Built-in pull-up resistor(s) [kΩ] 10
Connectors
Power supply connector(s) JST-PH (compatible) male
Through hole solder pin(s) (2.54mm)
IO-connector(s) JST-PH (compatible) male
Through hole solder pin(s) (2.54mm)

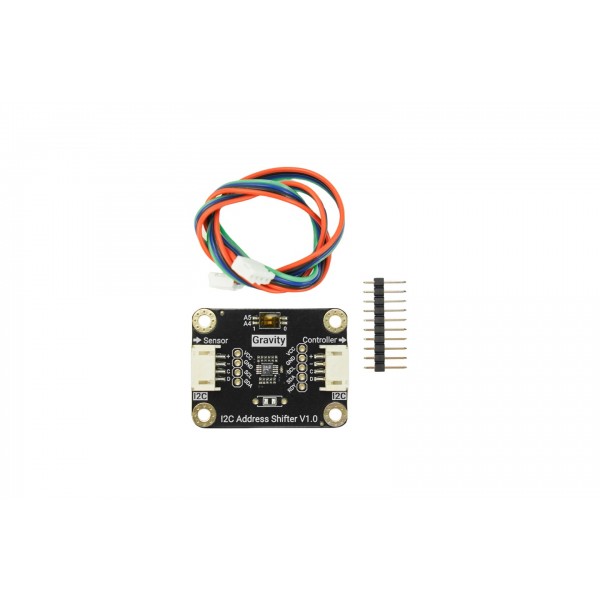

Package contents
Package contents 1x Male pin header 10p
1x DFRobot I2C address shifter
1x JST-PH 4p cable
